| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.03mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW-F 155 Ultra Fine Enameled Copper Wire Magnet Wire For Watch Coils | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.03mm |
| Conductor Material: | Copper | Key Word: | 2UEW-F 155 Ultra Fine Enameled Copper Wire Magnet Wire For Watch Coils |
| Type: | 2UEW-F 155 Ultra Fine Enameled Copper Wire Magnet Wire For Watch Coils | ||
| Highlight: | 2UEW-F Enameled Copper Wire,Watch Coils Enameled Copper Wire,Enameled Copper Magnet Wire |
||

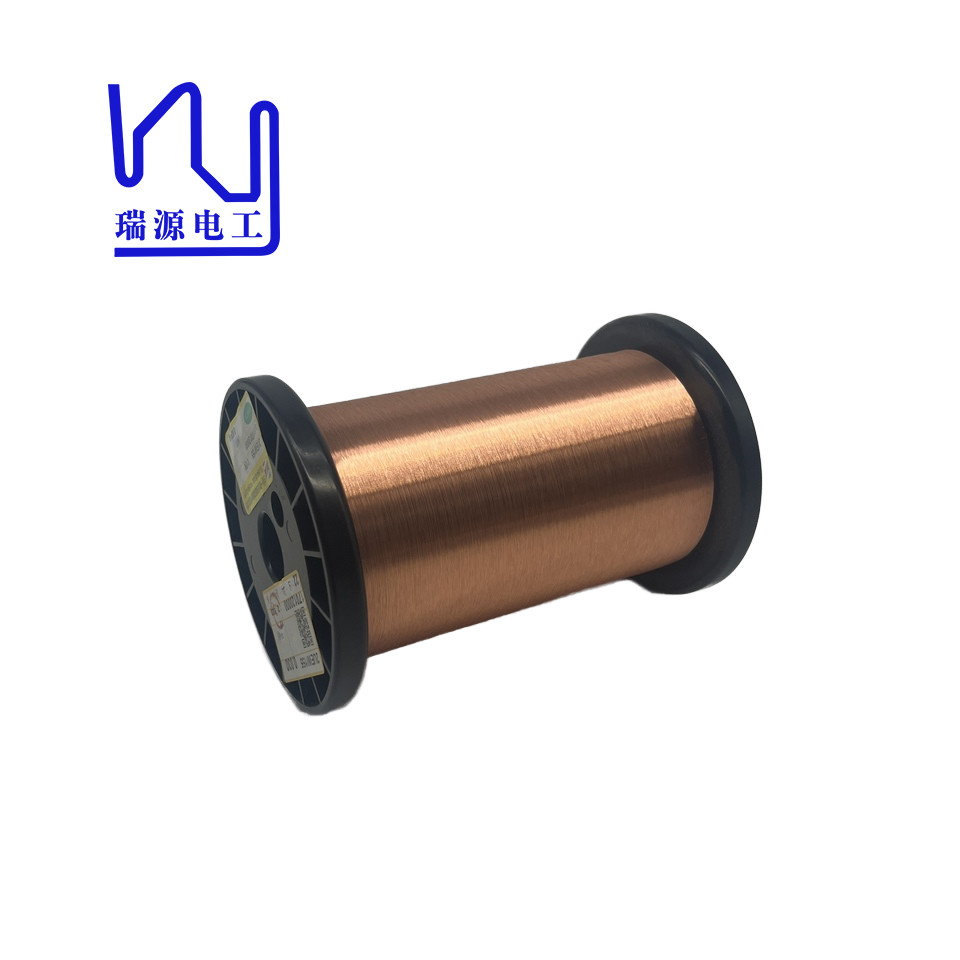

2UEW-F 155 Ultra fine Enameled Copper Wire Magnet Wire For Watch Coils
This is a custom ultra-fine enameled copper wire. With a diameter of just 0.03 mm, the wire is designed to meet the highest standards of precision and performance. It's coated in a polyurethane enamel for superior temperature resistance, rated to 155 degrees Celsius, with the option to upgrade to 180 degrees Celsius for more demanding applications. This 0.03 mm ultra-fine enameled copper wire is not only an engineering marvel but a versatile solution for a variety of electronic devices.
| Characteristics |
Technical requests |
Test Results | ||
| Sample 1 | Sample 2 | |||
| Bare Wire Diameter | 0.030±0.001 | 0.030 | 0.030 | |
| Coating Thickness | ≥ 0.0025 mm | 0.0035 | 0.0035 | |
| Overall Diameter | ≤ 0.039 mm | 0.037 | 0.037 | |
| Conductor Resistance | ≤ 26.569Ω/m | 23.745 | 23.639 | |
| Elongation | ≥ 10 % | 15.4 | 14.7 | |
| Breakdown Voltage | ≥ 275V | 1350 | 1298 | |
| Pinhole Test | ≤ 2 holes/5m | 0 | 0 | |
| Continuity | ≤ 24 holes/20m | 0 | 0 | |
| Adherence | no crack visible | OK | ||
| Cut-through | 200℃ 2minsno breakdown | OK | ||
| Heat Shock | 175±5℃/30minno crack | OK | ||
| Solderability | 390±5℃ 2second no slags | OK | ||
