| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | Rectangular Flat Enamelled Copper Wire | Width: | 4.0mm |
|---|---|---|---|
| Product Name: | Rectangular Flat Enamelled Copper Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Transformer/motor | Thickness: | 0.2mm |
| Material: | Copper | Key Word: | Rectangular Flat Enamelled Copper Wire |
| Highlight: | Rectangular Flat Enamelled Copper Wire,Rectangular Enamelled Copper Wire,Flat Enamelled Copper Wire |
||

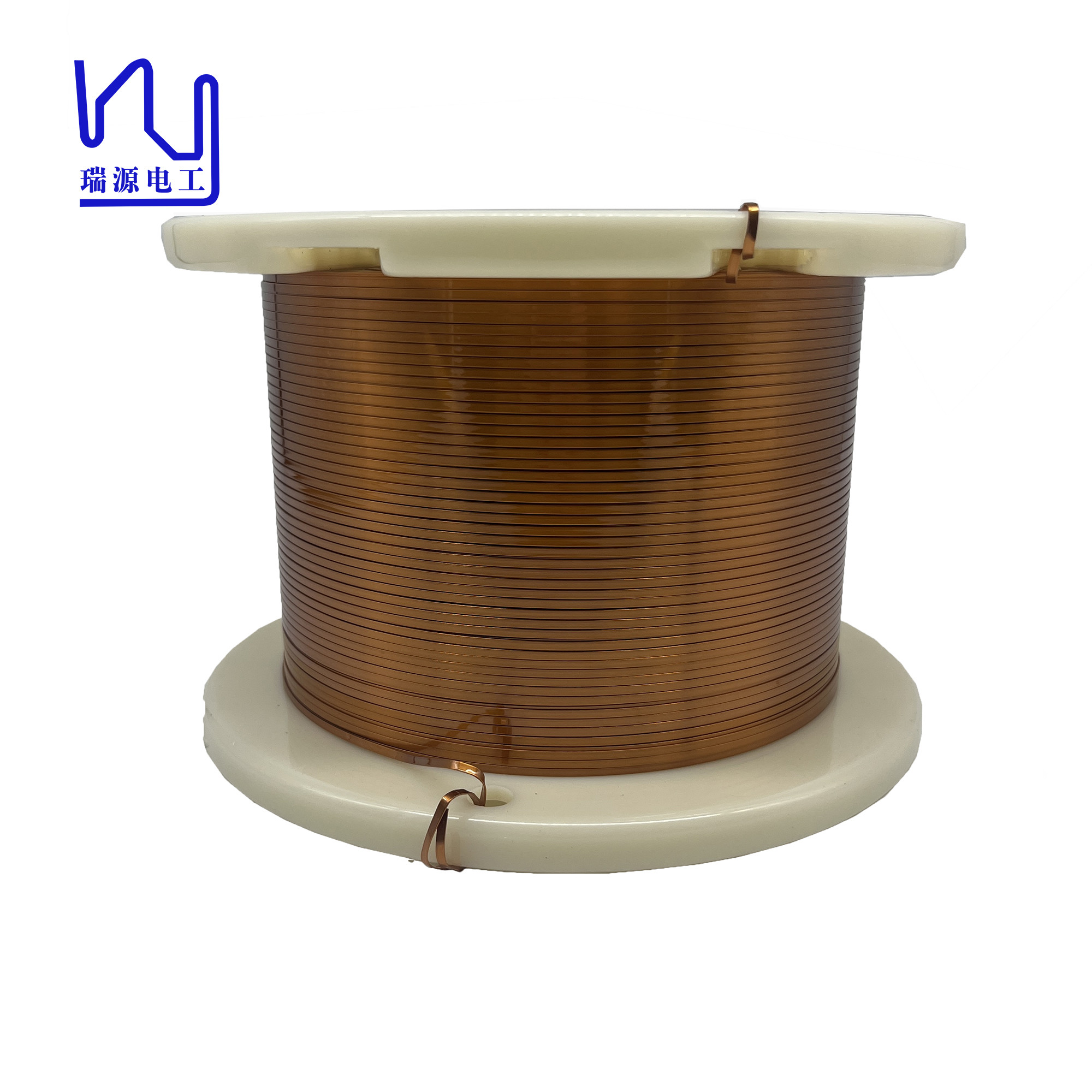

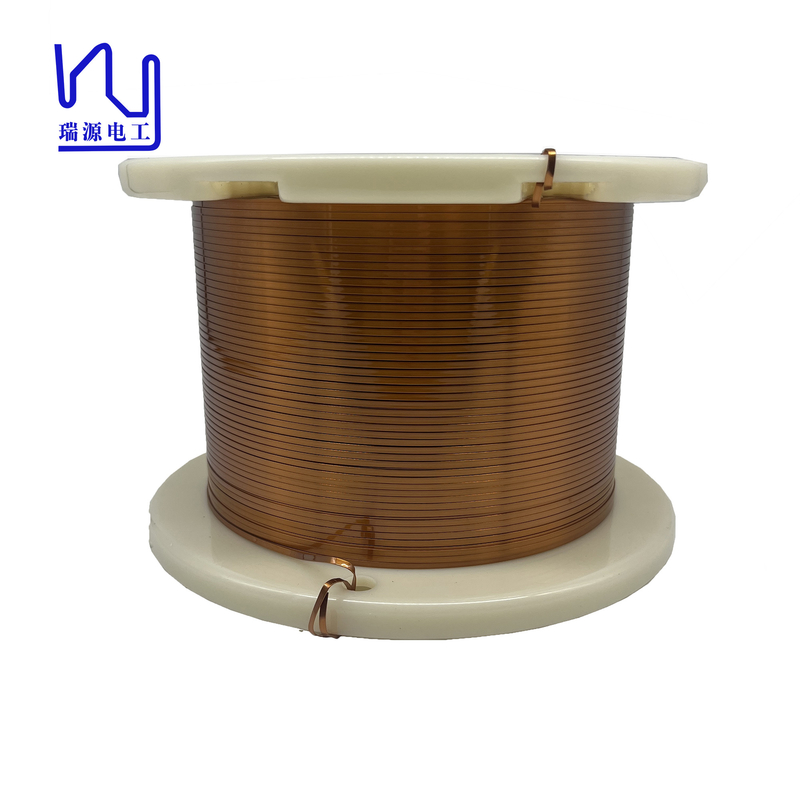

Rectangular Flat Enamelled Copper Wire
At Ruiyuan, we are committed to supporting small and micro enterprises and providing small batch customization to meet the specific needs of our customers. Our dedication to quality and customer satisfaction has made us a leading supplier of enameled flat copper wire, and we pride ourselves on delivering products that meet the highest standards of excellence.
|
Item |
Conductor dimension |
Thickness Of Insulation |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
||||
| Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
|||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | |
|
SPEC |
AVE | 0.500 | 0.700 | 0.025 | 0.025 | – | – | |||
| Max | 0.509 | 0.760 | 0.040 | 0.040 | 0.550 | 0.800 | 3 | 62.250 | ||
| Min | 0.491 | 0.640 | 0.010 | 0.010 | – | – | 0.700 | |||
| No. 1 | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.310 |
0 |
53.461 |
|
| No. 2 | – | – | – | – | – | – | 2.360 | |||
| No. 3 | – | – | – | – | – | – | 2.201 | |||
| No. 4 | – | – | – | – | – | – | 2.240 | |||
| No. 5 | – | – | – | – | – | – | 2.056 | |||
| Ave | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.233 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.056 | |||
| Max. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.360 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.304 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
