| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | Self Bonding Enameled Copper Wire Flat Copper Wire Insulated For Efficient Coil Winding Transformer | Width: | 4.0mm |
|---|---|---|---|
| Product Name: | Self Bonding Enameled Copper Wire Flat Copper Wire Insulated For Efficient Coil Winding Transformer | Product Category: | Rectangular Copper Wire |
| Applications: | Transformer/motor | Thickness: | 0.2mm |
| Material: | Copper | Key Word: | Self Bonding Enameled Copper Wire Flat Copper Wire Insulated For Efficient Coil Winding Transformer |
| Highlight: | Insulated Enameled Copper Wire,Self Bonding Enameled Copper Wire,Flat Enameled Copper Wire |
||

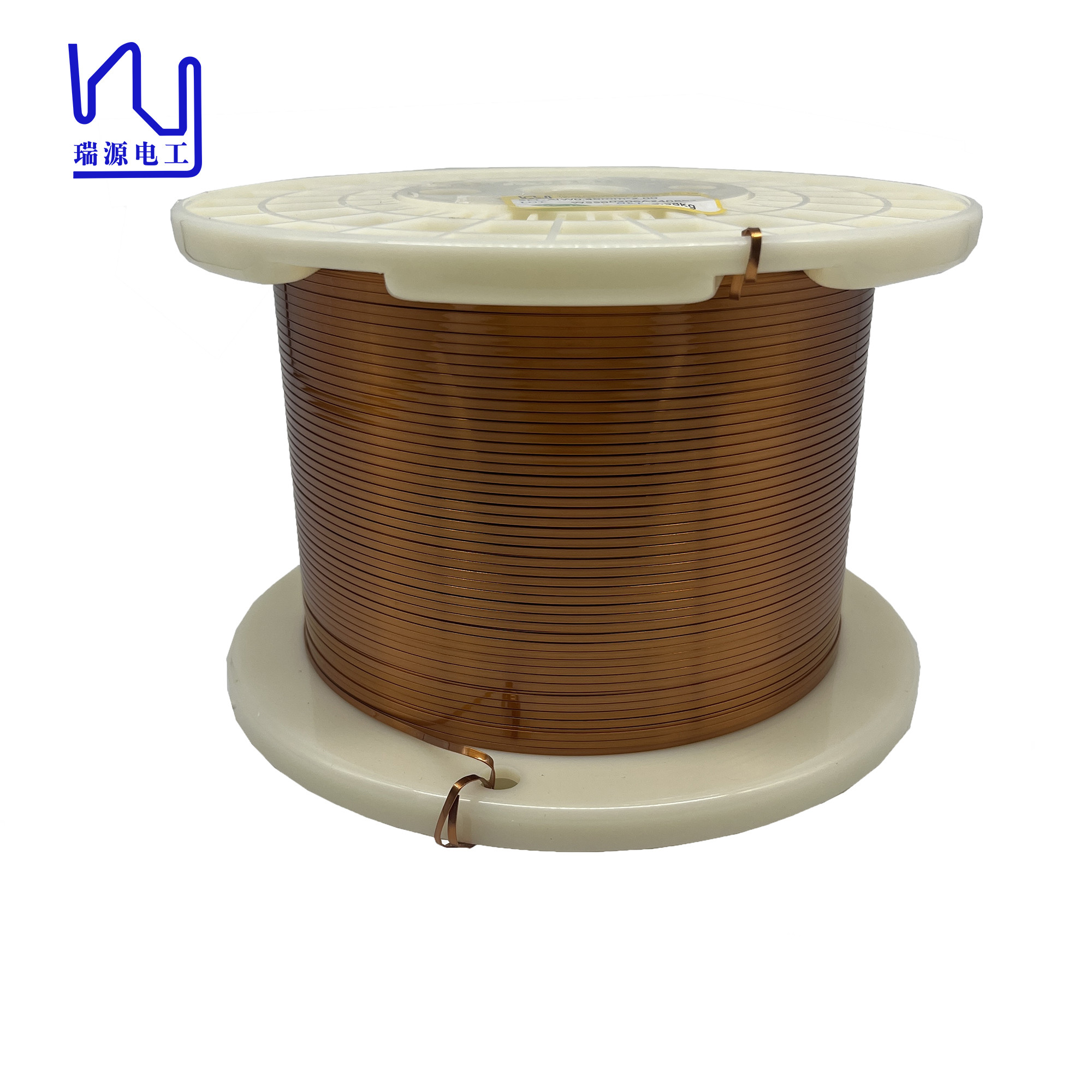

Self Bonding Enameled Copper Wire Flat Copper Wire Insulated For Efficient Coil Winding Transformer
In the industrial sector, our enameled flat copper wires are used in a variety of electrical and electronic equipment. From transformers and motors to inductors and solenoids, our wires are an important part of the manufacturing process of these products. Its high temperature resistance and durable construction make it ideal for use in demanding environments, providing reliable performance and long service life.
|
Item |
Conductor dimension |
Thickness Of Insulation |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
||||
| Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
|||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | |
|
SPEC |
AVE | 0.500 | 0.700 | 0.025 | 0.025 | – | – | |||
| Max | 0.509 | 0.760 | 0.040 | 0.040 | 0.550 | 0.800 | 3 | 62.250 | ||
| Min | 0.491 | 0.640 | 0.010 | 0.010 | – | – | 0.700 | |||
| No. 1 | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.310 |
0 |
53.461 |
|
| No. 2 | – | – | – | – | – | – | 2.360 | |||
| No. 3 | – | – | – | – | – | – | 2.201 | |||
| No. 4 | – | – | – | – | – | – | 2.240 | |||
| No. 5 | – | – | – | – | – | – | 2.056 | |||
| Ave | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.233 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.056 | |||
| Max. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.360 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.304 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
