| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | Hot Air Bondable 0.2mmx4.0mm Enameled Flat Copper Wire | Width: | 4.0mm |
|---|---|---|---|
| Product Name: | Hot Air Bondable 0.2mmx4.0mm Enameled Flat Copper Wire | Product Category: | Rectangular Copper Wire |
| Applications: | Transformer/motor | Thickness: | 0.2mm |
| Material: | Copper | Key Word: | Hot Air Bondable 0.2mmx4.0mm Enameled Flat Copper Wire |
| Highlight: | 0.2mmx4.0mm Enameled Flat Copper Wire,Hot Air Bondable enameled copper wire,enameled copper wire Flat |
||

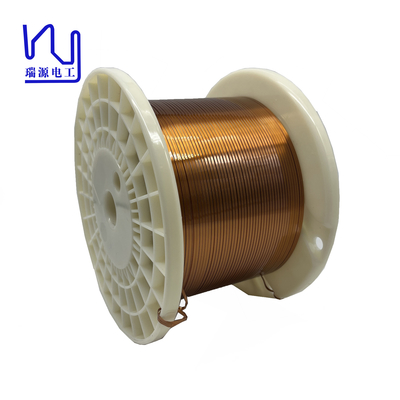

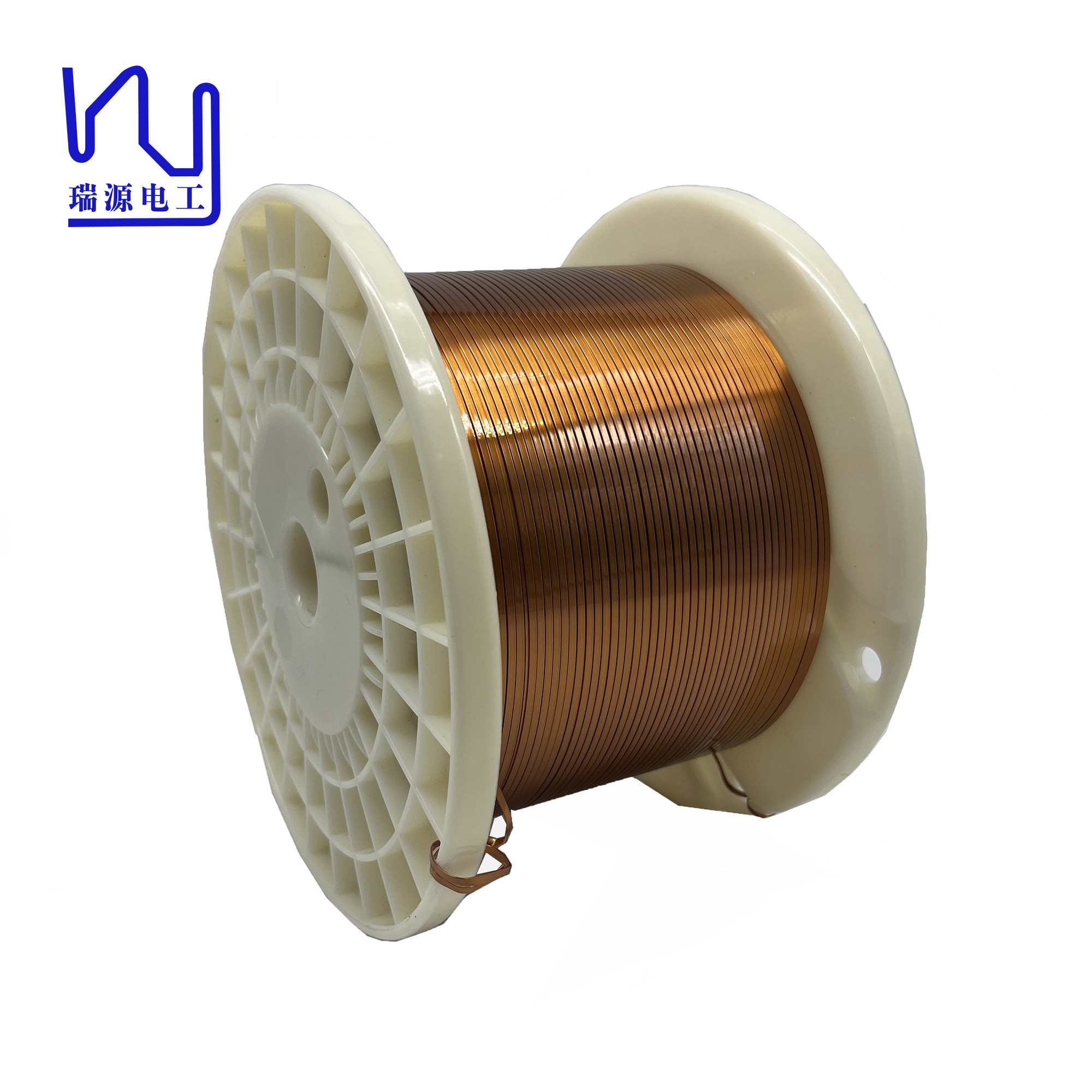

Hot Air Bondable 0.2mmx4.0mm Enameled Flat Copper Wire
Our enamelled flat copper wires are made from high-quality materials, this is a custom enameled copper flat copper wire, with a thickness of 0.2 mm and a width of 4.0 mm, this wire provides a rugged and reliable solution for a variety of electrical and electronic needs.
|
Item |
Conductor dimension |
Thickness Of Insulation |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
||||
| Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
|||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | |
|
SPEC |
AVE | 0.500 | 0.700 | 0.025 | 0.025 | – | – | |||
| Max | 0.509 | 0.760 | 0.040 | 0.040 | 0.550 | 0.800 | 3 | 62.250 | ||
| Min | 0.491 | 0.640 | 0.010 | 0.010 | – | – | 0.700 | |||
| No. 1 | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.310 |
0 |
53.461 |
|
| No. 2 | – | – | – | – | – | – | 2.360 | |||
| No. 3 | – | – | – | – | – | – | 2.201 | |||
| No. 4 | – | – | – | – | – | – | 2.240 | |||
| No. 5 | – | – | – | – | – | – | 2.056 | |||
| Ave | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.233 | |||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | |||
| Min. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.056 | |||
| Max. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.360 | |||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.304 | |||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
