| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Applications: | High-end Electronic Transformers, High-power Inductors, Micro Motors, Drive Motors, Mobile Phones, New Energy Vehicles, And Other Industries |
|---|---|---|---|
| Product Category: | Rectangular Copper Wire | Type: | Insulated |
| Key Word: | AIW 220C 0.1mm Rectangular Enameled Copper Wire | Width: | 2mm |
| Thermal Grade: | 220 | Conductor Dimension (Width): | 2mm |
| Highlight: | Rectangular Enameled Copper Wire,0.1mm Rectangular Enameled Copper Wire |
||

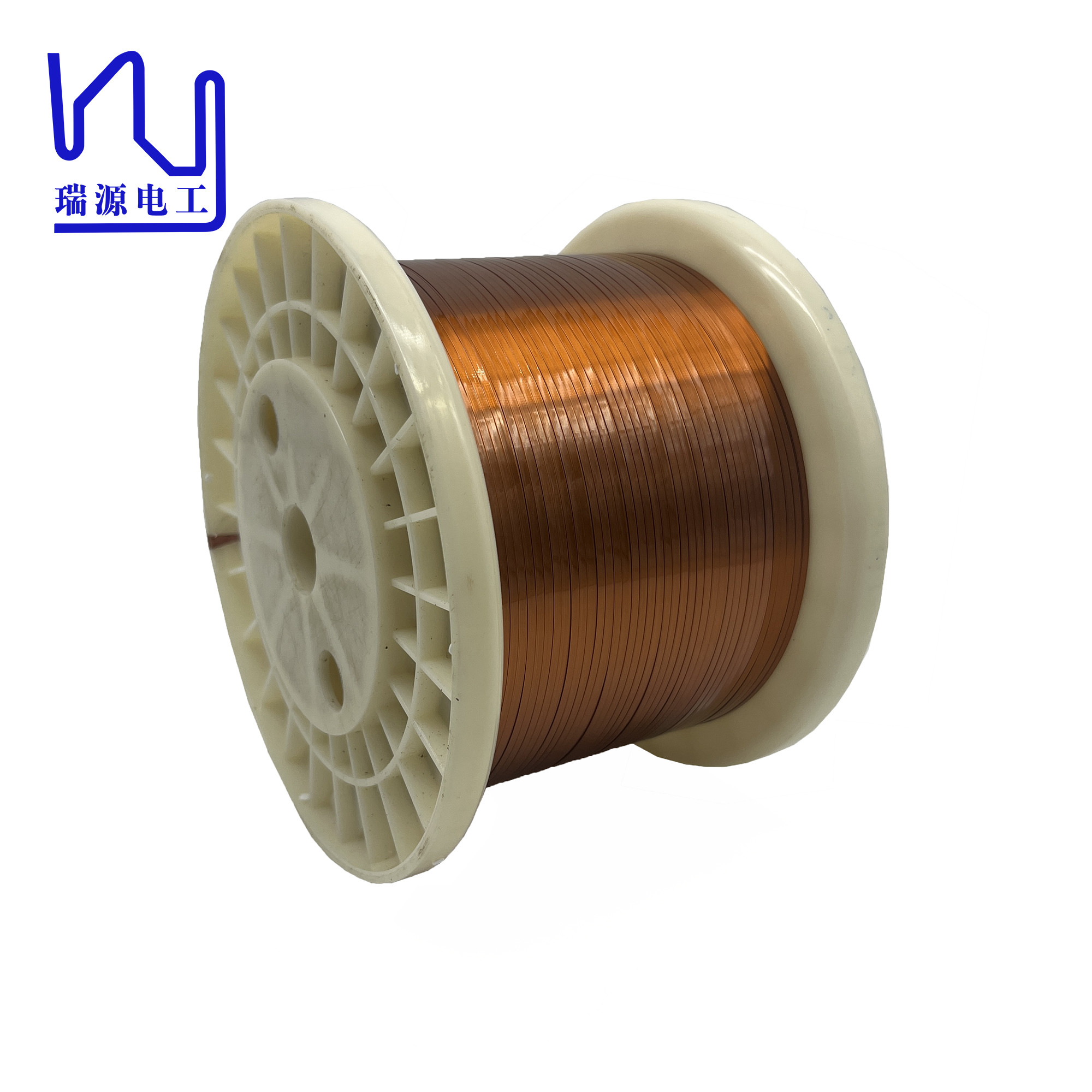

AIW 220C 0.1mm Rectangular Enameled Copper Wire
Our enameled flat wire is meticulously crafted to meet the highest quality standards. The super thin design allows for precise and efficient winding, making it ideal for applications where space is limited. The flat shape of the wire ensures a uniform and consistent winding, resulting in optimal performance and reliability. With its excellent thermal properties and high-quality enamel coating, this wire is built to withstand the rigors of demanding electronic applications.e, but it is different for each type.
|
TEST REPORT |
||||||||
|
Model |
SFT-AIW |
Date |
||||||
|
Size(mm): |
0.100 × 2.000 |
Lot |
||||||
|
Item |
Conductor
dimension |
Unilateral insulation layer thickness |
Overall dimension |
Breakdown |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
voltage |
||
|
Unit |
|
mm |
mm |
mm |
mm |
mm |
mm |
kv |
|
SPEC |
Ave |
0.1 |
2 |
0.025 |
0.025 |
|
|
|
|
Max |
0.109 |
2.06 |
0.04 |
0.04 |
0.15 |
2.1 |
|
|
|
Min |
0.091 |
1.94 |
0.01 |
0.01 |
|
|
0.7 |
|
|
No. 1 |
|
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.063 |
|
No. 2 |
|
|
|
|
|
|
1.085 |
|
|
No. 3 |
|
|
|
|
|
|
1.132 |
|
|
No. 4 |
|
|
|
|
|
|
1.041 |
|
|
No. 5 |
|
|
|
|
|
|
1.015 |
|
|
Avg |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.067 |
|
|
Number of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
|
|
Min. reading |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.015 |
|
|
Max. reading |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.132 |
|
|
Range |
0 |
0 |
0 |
0 |
0 |
0 |
0.117 |
|
