| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Applications: | ROHS/UL/SGS/ISO9001 2mmx0.1mm Rectangular Copper Wire For Motor | Thermal Grade: | 220 |
|---|---|---|---|
| Item: | ROHS/UL/SGS/ISO9001 2mmx0.1mm Rectangular Copper Wire For Motor | Overall Dimension (Thickness): | 0.1mm |
| Product Category: | Rectangular Copper Wire | Key Word: | ROHS/UL/SGS/ISO9001 2mmx0.1mm Rectangular Copper Wire For Motor |
| Conductor Dimension (Width): | 2mm | Shape: | Rectangular |
| Highlight: | 2mmx0.1mm Rectangular Copper Wire,Motor Rectangular Copper Wire,ROHS Rectangular Copper Wire |
||

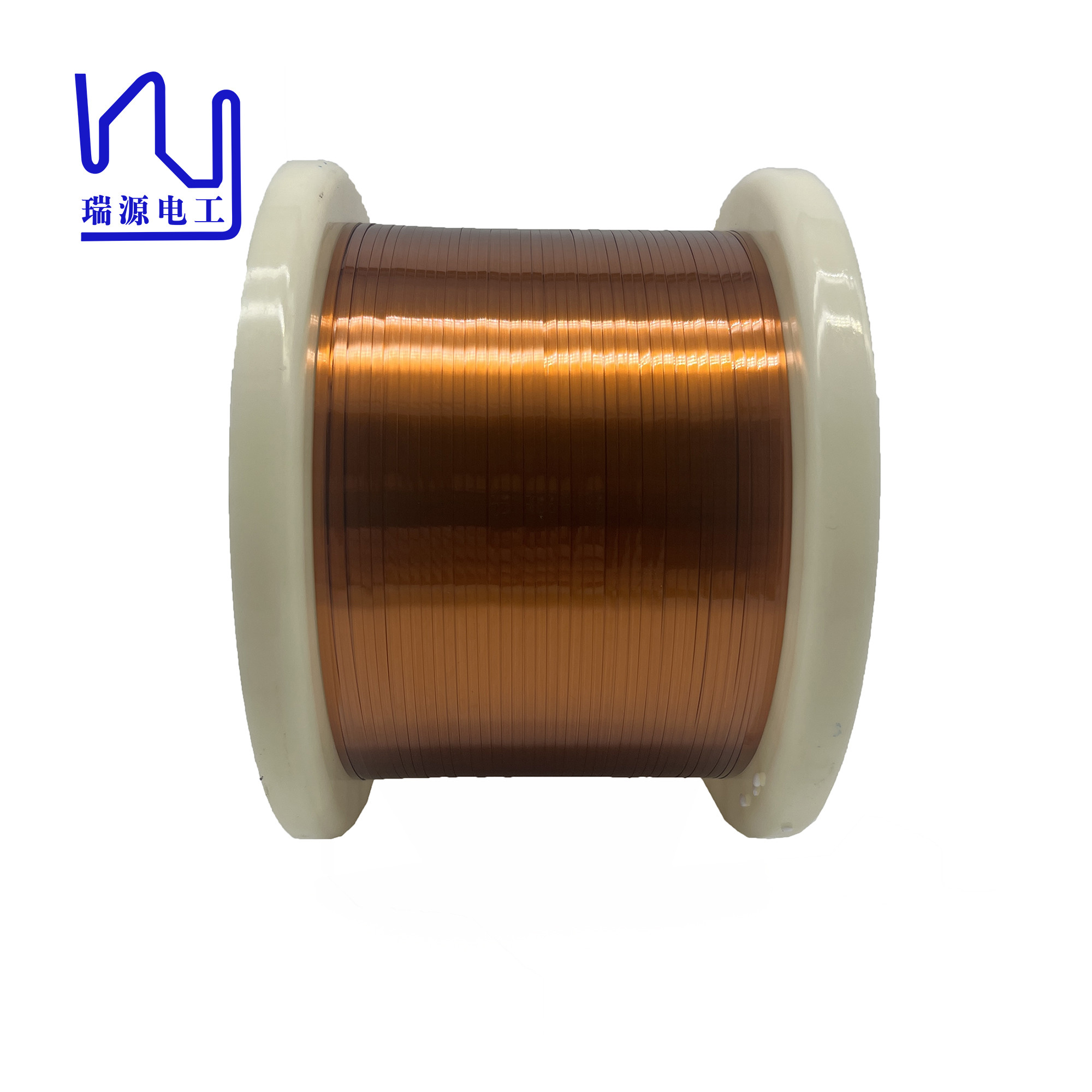

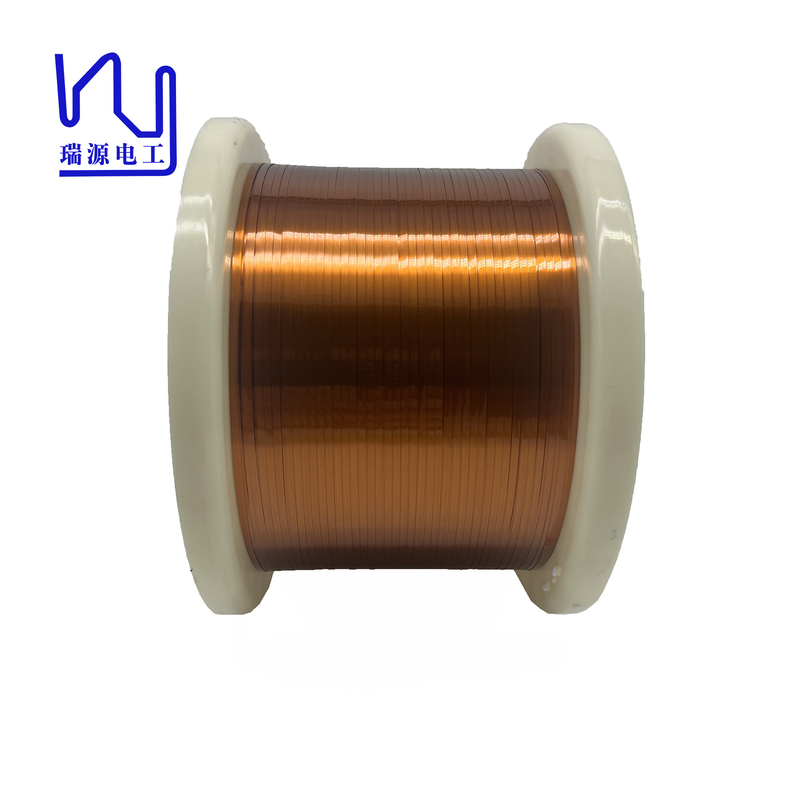

ROHS/UL/SGS/ISO9001 2mmx0.1mm Rectangular Copper Wire For Motor
One of the key features of our enameled flat wire is its exceptional quality. We take great pride in delivering a product that meets the most stringent industry standards. The combination of super thin design, high-quality enamel coating, and precise dimensions makes this wire a top choice for engineers and manufacturers who demand the best for their products. Whether it's for high-end electronic transformers, high-power inductors, micro motors, drive motors, or mobile phones, our enameled flat wire delivers the performance and reliability that our customers expect.
|
TEST REPORT |
||||||||
|
Model |
SFT-AIW |
Date |
||||||
|
Size(mm): |
0.100 × 2.000 |
Lot |
||||||
|
Item |
Conductor
dimension |
Unilateral insulation layer thickness |
Overall dimension |
Breakdown |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
voltage |
||
|
Unit |
|
mm |
mm |
mm |
mm |
mm |
mm |
kv |
|
SPEC |
Ave |
0.1 |
2 |
0.025 |
0.025 |
|
|
|
|
Max |
0.109 |
2.06 |
0.04 |
0.04 |
0.15 |
2.1 |
|
|
|
Min |
0.091 |
1.94 |
0.01 |
0.01 |
|
|
0.7 |
|
|
No. 1 |
|
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.063 |
|
No. 2 |
|
|
|
|
|
|
1.085 |
|
|
No. 3 |
|
|
|
|
|
|
1.132 |
|
|
No. 4 |
|
|
|
|
|
|
1.041 |
|
|
No. 5 |
|
|
|
|
|
|
1.015 |
|
|
Avg |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.067 |
|
|
Number of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
|
|
Min. reading |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.015 |
|
|
Max. reading |
0.104 |
2.003 |
0.021 |
0.012 |
0.146 |
2.027 |
1.132 |
|
|
Range |
0 |
0 |
0 |
0 |
0 |
0 |
0.117 |
|
