| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Item: | 0.55mmx0.2mm Hot Wind Self Bonding Rectangular Copper Wire Enamel 180/220 Grade | Width: | 0.55mm |
|---|---|---|---|
| Product Name: | AIW220 2.0mmx0.1mm Enameled Flat Copper Wire Rectangular Magnet Wire | Product Category: | Rectangular Copper Wire |
| Applications: | High-end Electronic Transformers, High-power Inductors, Micro Motors, Drive Motors, Mobile Phones, New Energy Vehicles, And Other Industries | Thickness: | 0.2mm |
| Material: | Copper | Key Word: | 0.55mmx0.2mm Hot Wind Self Bonding Rectangular Copper Wire Enamel 180/220 Grade |
| Highlight: | 0.55mmx0.2mm Rectangular Copper Wire,180/220 Grade Rectangular Copper Wire,Hot Wind Rectangular Copper Wire |
||

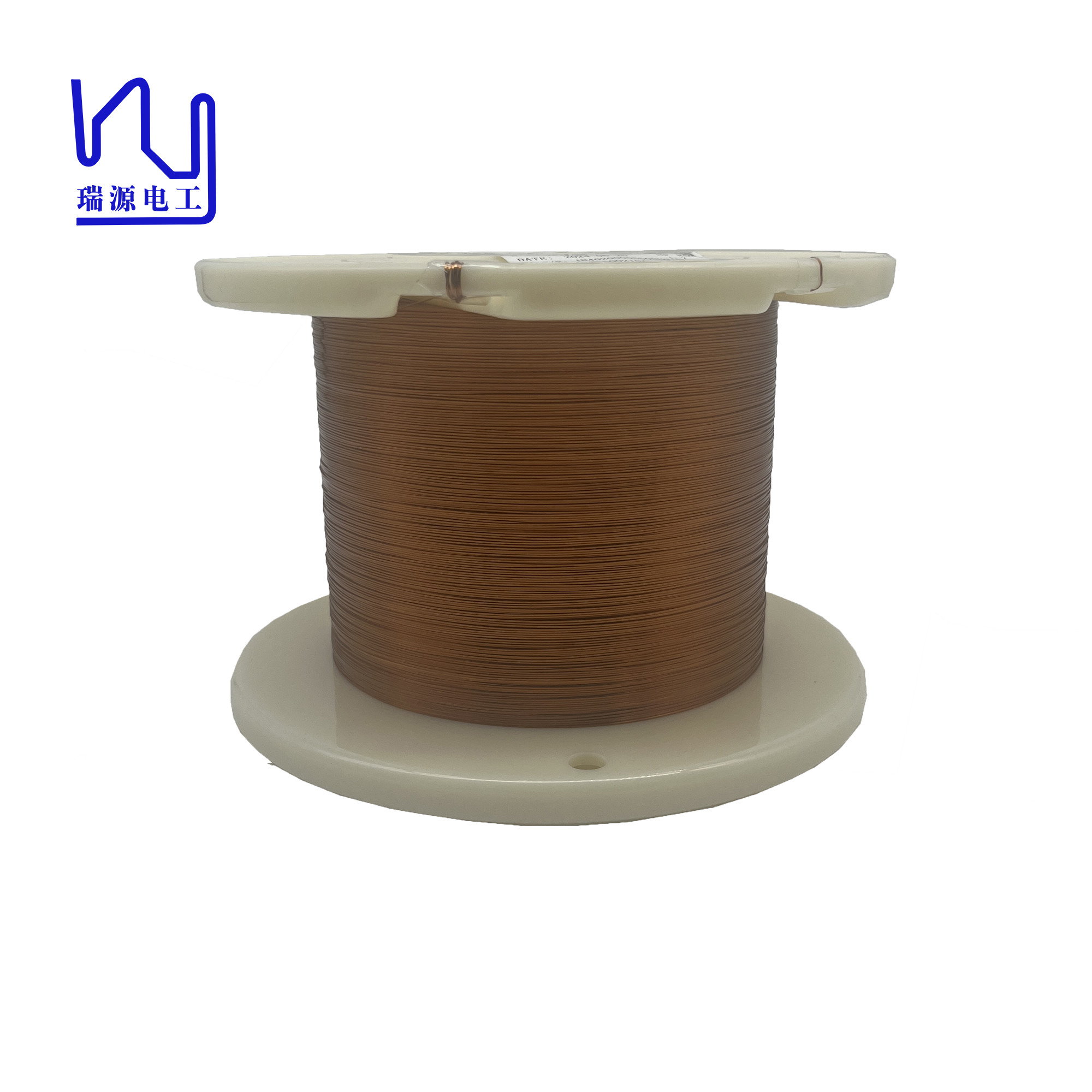

0.55mmx0.2mm hot wind self bonding Rectangular Copper Wire Enamel 180/220 Grade
The areas of application for our ultra-fine self-adhesive flat wires are diverse and wide-ranging. From the electronics and telecommunications to the automotive and aerospace industries, this wire is an essential component in the manufacturing of a variety of products. Its heat resistance and self-adhesive capabilities make it particularly suitable for applications where reliability and durability are critical, such as high-temperature environments or where traditional bonding methods may not be feasible.
|
Test report: SFT-AIW/SB 0.2mmx0.55mm enameled flat copper wire |
||||||||||
|
Item |
Conductor dimension |
Unilateral sef-adhesive thickness |
Unilateral insulation layer thickness |
O.D. |
Resistance |
Dielectric strength |
||||
|
Unit |
Thickness mm |
Width mm |
mm |
Thickness mm |
Width mm |
Thickness mm |
Width mm |
Ω/km |
kv |
|
|
Spec |
AVE |
0.2 |
0.55 |
/ |
0.025 |
0.025 |
|
|
181.91 |
|
|
MAX |
0.205 |
0.580 |
/ |
0.040 |
0.040 |
0.260 |
0.66 |
|
|
|
|
MIN |
0.195 |
0.520 |
0.002 |
0.010 |
0.010 |
|
|
OK |
0.7 |
|
|
No.1 |
|
0.196 |
0.546 |
0.002 |
0.025 |
0.025 |
0.249 |
0.599 |
3.620 |
|
|
No.2 |
|
0.195 |
0.54 7 |
0.002 |
0.026 |
0.026 |
0.250 |
0.600 |
2.632 |
|
|
No.3 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.2 |
|
|
No.4 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.063 |
|
|
No.5 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.03 |
|
|
No.6 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.2 |
|
|
No.7 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.35 |
|
|
No.8 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.34 |
|
|
No.9 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.021 |
|
|
No.10 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.64 |
|
|
AVG |
|
0.196 |
0.547 |
0.002 |
0.025 |
|
|
|
2.71 |
|
|
No.of reading |
|
2 |
2 |
2 |
2 |
|
|
|
10 |
|
|
Min. reading |
|
0.195 |
0.546 |
0.002 |
0.025 |
|
|
|
2.06 |
|
|
Max. reading |
|
0.195 |
0.547 |
0.002 |
0.026 |
|
|
|
3.62 |
|
|
Range |
|
0.001 |
0.001 |
0.000 |
0.001 |
|
|
|
1.59 |
|
|
Result |
|
OK |
ok |
Ok |
Ok |
|
|
|
ok |
|
