| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Width: | 0.55mm | Key Word: | AIW220 Hot Wind Self Bonding Flat Enameled Copper Wire Insulated And Durable For Industrial |
|---|---|---|---|
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Overall Dimension (Thickness): | 0.2mm |
| Material: | Copper | Unilateral Insulation Layer Thickness (Thickness): | 0.025mm |
| Product Name: | AIW220 2.0mmx0.1mm Enameled Flat Copper Wire Rectangular Magnet Wire | Shape: | Rectangular |
| Highlight: | 0.2mm Enameled Copper Wire,Durable Enameled Copper Wire,Industrial Enameled Copper Wire |
||

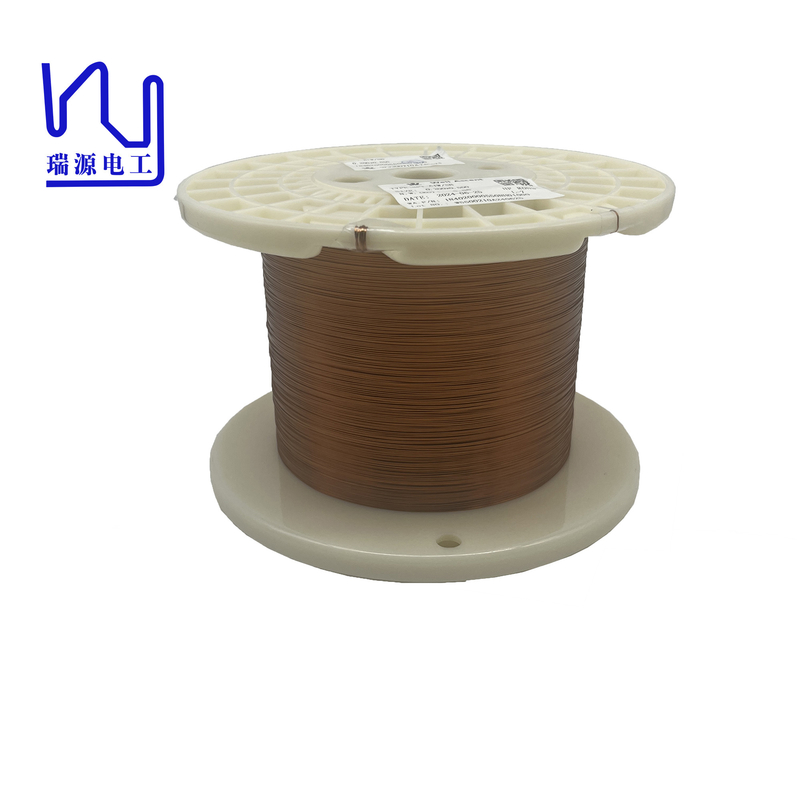

AIW220 Hot wind self bonding Flat Enameled Copper Wire Insulated and Durable for Industrial
The advantages of our self-adhesive enameled flat wires extend beyond their physical properties. Its customization options allow solutions to be tailored to meet specific project requirements, ensuring you receive a product that exactly matches your needs. Additionally, the minimum order quantity makes it suitable for businesses ranging from small-scale operations to large enterprises, allowing you to benefit from this advanced cabling solution without the limitations of high-volume orders.
| Test report: SFT-AIW/SB 0.2mmx0.55mm enameled flat copper wire | ||||||||||
| Item | Conductor dimension | Unilateral sef-adhesive thickness |
Unilateral insulation layer thickness |
O.D. | Resistance | Dielectric strength | ||||
| Unit | Thickness mm | Width mm | mm | Thickness mm | Width mm | Thickness mm | Width mm | Ω/km | kv | |
| Spec | AVE | 0.2 | 0.55 | / | 0.025 | 0.025 | 181.91 | |||
| MAX | 0.205 | 0.580 | / | 0.040 | 0.040 | 0.260 | 0.66 | |||
| MIN | 0.195 | 0.520 | 0.002 | 0.010 | 0.010 | OK | 0.7 | |||
| No.1 | 0.196 | 0.546 | 0.002 | 0.025 | 0.025 | 0.249 | 0.599 | 3.620 | ||
| No.2 | 0.195 | 0.54 7 | 0.002 | 0.026 | 0.026 | 0.250 | 0.600 | 2.632 | ||
| No.3 | / | / | / | / | / | / | / | 3.2 | ||
| No.4 | / | / | / | / | / | / | / | 2.063 | ||
| No.5 | / | / | / | / | / | / | / | 2.03 | ||
| No.6 | / | / | / | / | / | / | / | 3.2 | ||
| No.7 | / | / | / | / | / | / | / | 2.35 | ||
| No.8 | / | / | / | / | / | / | / | 2.34 | ||
| No.9 | / | / | / | / | / | / | / | 3.021 | ||
| No.10 | / | / | / | / | / | / | / | 2.64 | ||
| AVG | 0.196 | 0.547 | 0.002 | 0.025 | 2.71 | |||||
| No.of reading | 2 | 2 | 2 | 2 | 10 | |||||
| Min. reading | 0.195 | 0.546 | 0.002 | 0.025 | 2.06 | |||||
| Max. reading | 0.195 | 0.547 | 0.002 | 0.026 | 3.62 | |||||
| Range | 0.001 | 0.001 | 0.000 | 0.001 | 1.59 | |||||
| Result | OK | ok | Ok | Ok | ok | |||||
