| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Item: | AIW220 0.2mmX0.55mm Hot Wind Self Adhesive Rectangular Enameled Copper Wire |
|---|---|---|---|
| Applications: | High-end Electronic Transformers, High-power Inductors, Micro Motors, Drive Motors, Mobile Phones, New Energy Vehicles, And Other Industries | Overall Dimension (Thickness): | 0.1mm |
| Width: | 2mm | Product Category: | Rectangular Copper Wire |
| Thermal Grade: | 220 | Product Name: | AIW220 2.0mmx0.1mm Enameled Flat Copper Wire Rectangular Magnet Wire |
| Highlight: | AIW220 Rectangular Enameled Copper Wire |
||

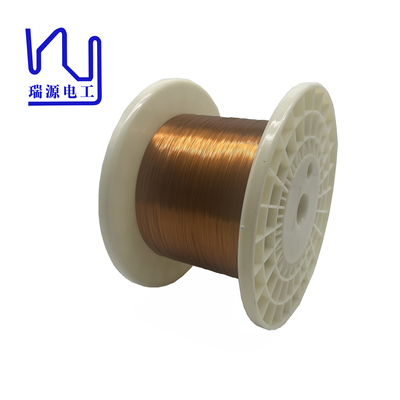

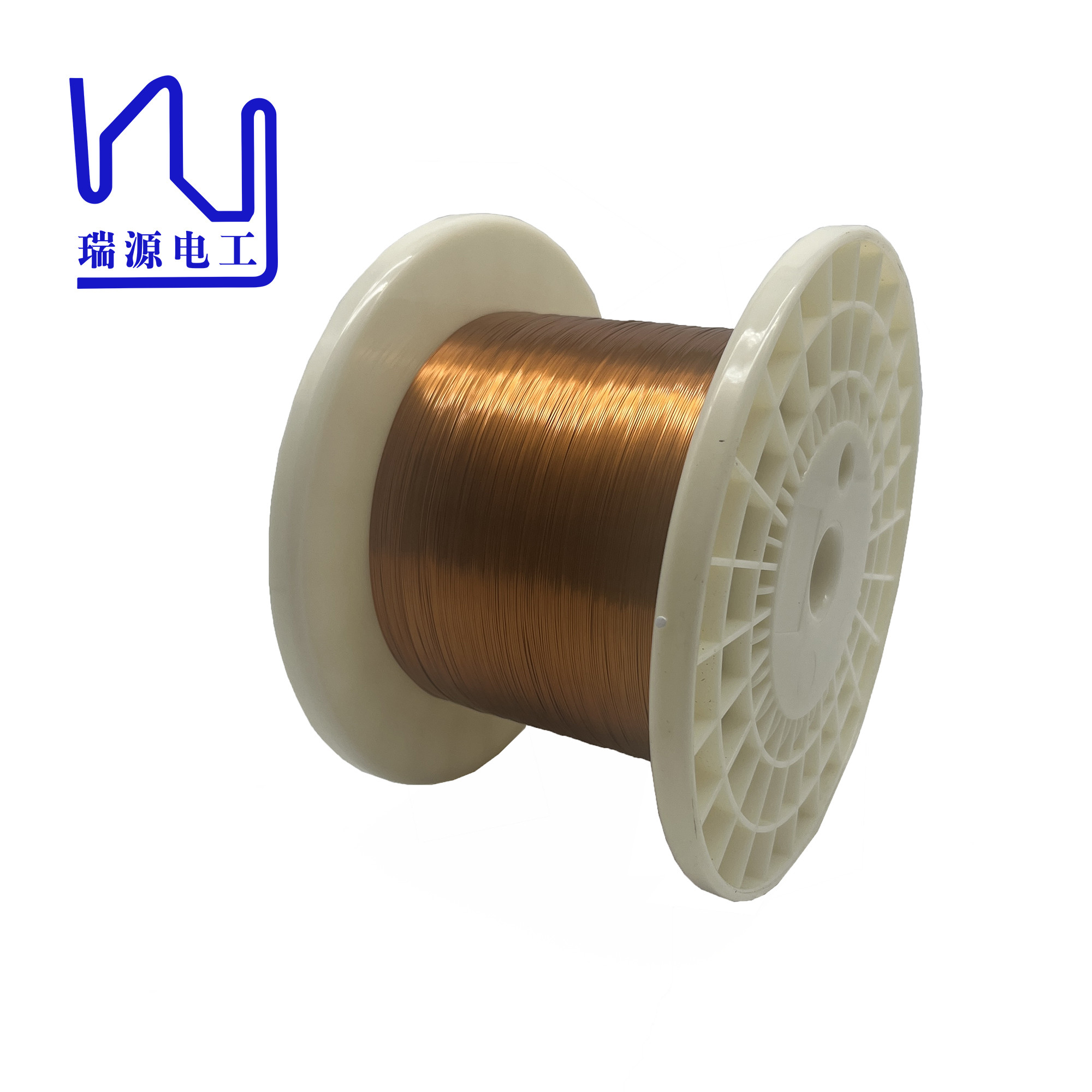

AIW220 0.2mmX0.55mm Hot Wind Self Adhesive Rectangular Enameled Copper Wire
This is customizd enameled flat copper wire, with a width of 0.55 mm, a thickness of only 0.2 mm, and a heat resistance rating of up to 220 degrees, this hot air wire is a versatile and reliable choice for various industries. We support small batch customization, with a minimum order quantity of just 10kg, ensuring you get this high-quality product without a large-scale commitment.
The features of our self-adhesive enameled flat wire is its ultra-thin design, allowing flexibility and ease of use in complex applications.
|
Test report: SFT-AIW/SB 0.2mmx0.55mm enameled flat copper wire |
||||||||||
|
Item |
Conductor dimension |
Unilateral sef-adhesive thickness |
Unilateral insulation layer thickness |
O.D. |
Resistance |
Dielectric strength |
||||
|
Unit |
Thickness mm |
Width mm |
mm |
Thickness mm |
Width mm |
Thickness mm |
Width mm |
Ω/km |
kv |
|
|
Spec |
AVE |
0.2 |
0.55 |
/ |
0.025 |
0.025 |
|
|
181.91 |
|
|
MAX |
0.205 |
0.580 |
/ |
0.040 |
0.040 |
0.260 |
0.66 |
|
|
|
|
MIN |
0.195 |
0.520 |
0.002 |
0.010 |
0.010 |
|
|
OK |
0.7 |
|
|
No.1 |
|
0.196 |
0.546 |
0.002 |
0.025 |
0.025 |
0.249 |
0.599 |
3.620 |
|
|
No.2 |
|
0.195 |
0.54 7 |
0.002 |
0.026 |
0.026 |
0.250 |
0.600 |
2.632 |
|
|
No.3 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.2 |
|
|
No.4 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.063 |
|
|
No.5 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.03 |
|
|
No.6 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.2 |
|
|
No.7 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.35 |
|
|
No.8 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.34 |
|
|
No.9 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3.021 |
|
|
No.10 |
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
2.64 |
|
|
AVG |
|
0.196 |
0.547 |
0.002 |
0.025 |
|
|
|
2.71 |
|
|
No.of reading |
|
2 |
2 |
2 |
2 |
|
|
|
10 |
|
|
Min. reading |
|
0.195 |
0.546 |
0.002 |
0.025 |
|
|
|
2.06 |
|
|
Max. reading |
|
0.195 |
0.547 |
0.002 |
0.026 |
|
|
|
3.62 |
|
|
Range |
|
0.001 |
0.001 |
0.000 |
0.001 |
|
|
|
1.59 |
|
|
Result |
|
OK |
ok |
Ok |
Ok |
|
|
|
ok |
|
