| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Thickness: | 0.4mm | Product Category: | Rectangular Copper Wire |
|---|---|---|---|
| Material: | Copper | Conductor Dimension (Thickness): | 3.5mm |
| Key Word: | AIW 220 3.5mmX0.4mm Enameled Flat Copper Wire For Automotive | Shape: | Rectangular |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | ||
| Highlight: | AIW 220 enameled copper wire,Automotive enameled copper wire,3.5mmX0.4mm enameled copper wire |
||

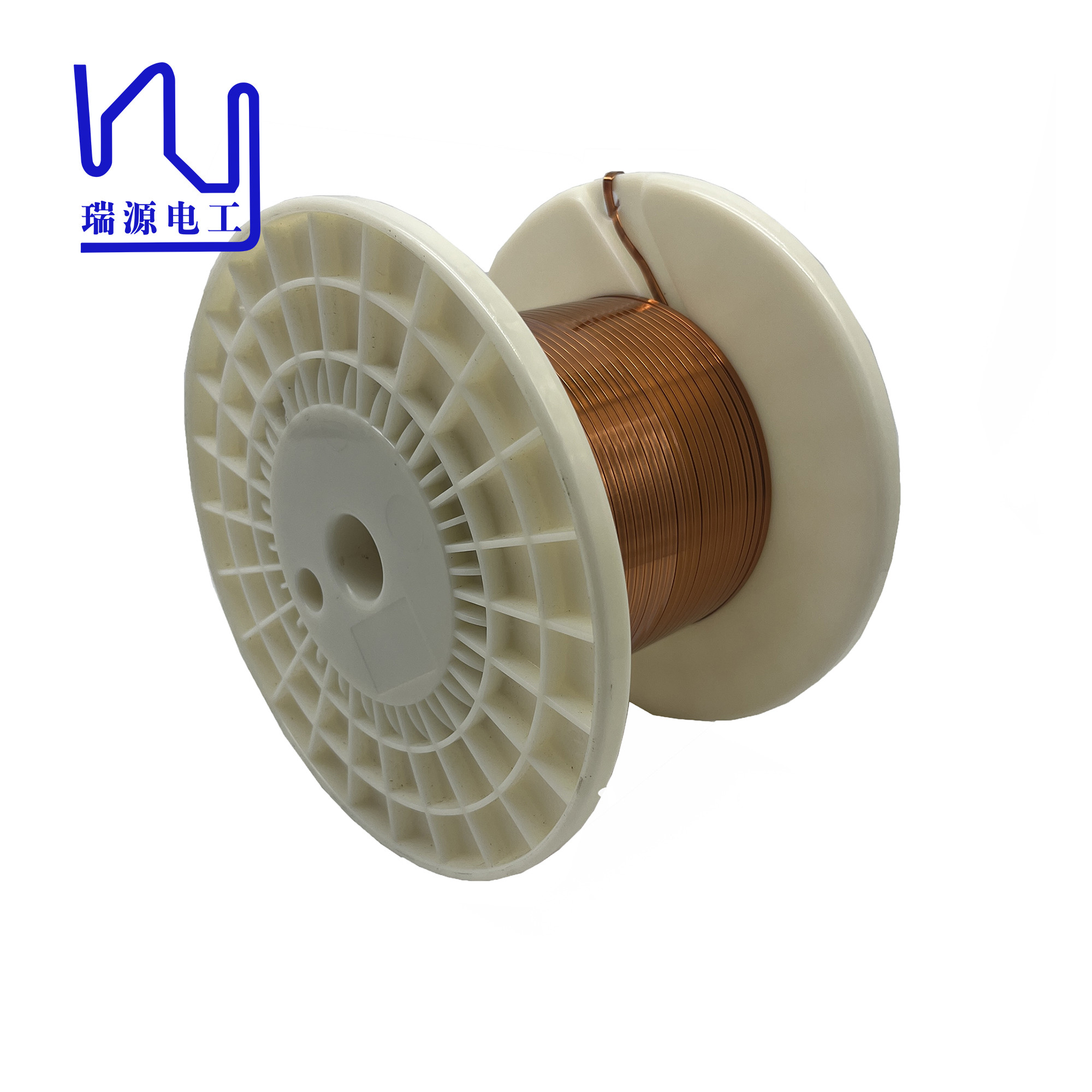

AIW 220 3.5mmX0.4mm retangular enameled copper wire for Automotive
In the field of electric motors, the flat enameled copper wire play a vital role in ensuring efficient, reliable performance. Whether for traditional electric motors or advanced electric vehicle propulsion systems, our flat enameled copper wire is engineered to provide superior electrical conductivity and thermal stability. Our flat wires focus on precision and durability, allowing motors to operate at optimal levels, helping to improve energy efficiency and overall performance.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
||||
|
Unit |
mm |
mm |
mm |
mm |
mm |
mm |
kv |
Ω/km 20℃ |
|
|
SPEC |
AVE |
0.400 |
3.500 |
0.025 |
0.025 |
|
|
|
|
|
Max |
0.409 |
3.560 |
0.040 |
0.040 |
0.450 |
3.600 |
|
13.510 |
|
|
Min |
0.391 |
3.440 |
0.010 |
0.010 |
|
|
0.700 |
|
|
|
No. 1 |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
12.720 |
|
|
No. 2 |
|
|
|
|
|
|
1.540 |
||
|
No. 3 |
|
|
|
|
|
|
1.632 |
||
|
No. 4 |
|
|
|
|
|
|
1.324 |
||
|
No. 5 |
|
|
|
|
|
|
2.141 |
||
|
Avg |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.789 |
||
|
No. of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
||
|
Min. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.324 |
||
|
Max. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
||
|
Range |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.986 |
||
|
Result |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
