| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Conductor Dimension (Thickness): | 0.4mm | Material: | Copper |
|---|---|---|---|
| Overall Dimension (Width): | 3.5mm | Application: | Motor/Transformer |
| Product Category: | Rectangular Copper Wire | Type: | Insulated |
| Key Word: | Motor/Transformer Rectangular Copper Wire With ROHS/UL/SGS/ISO9001 Certification | ||
| Highlight: | UL Rectangular Copper Wire,SGS Rectangular Copper Wire,ROHS Rectangular Copper Wire |
||

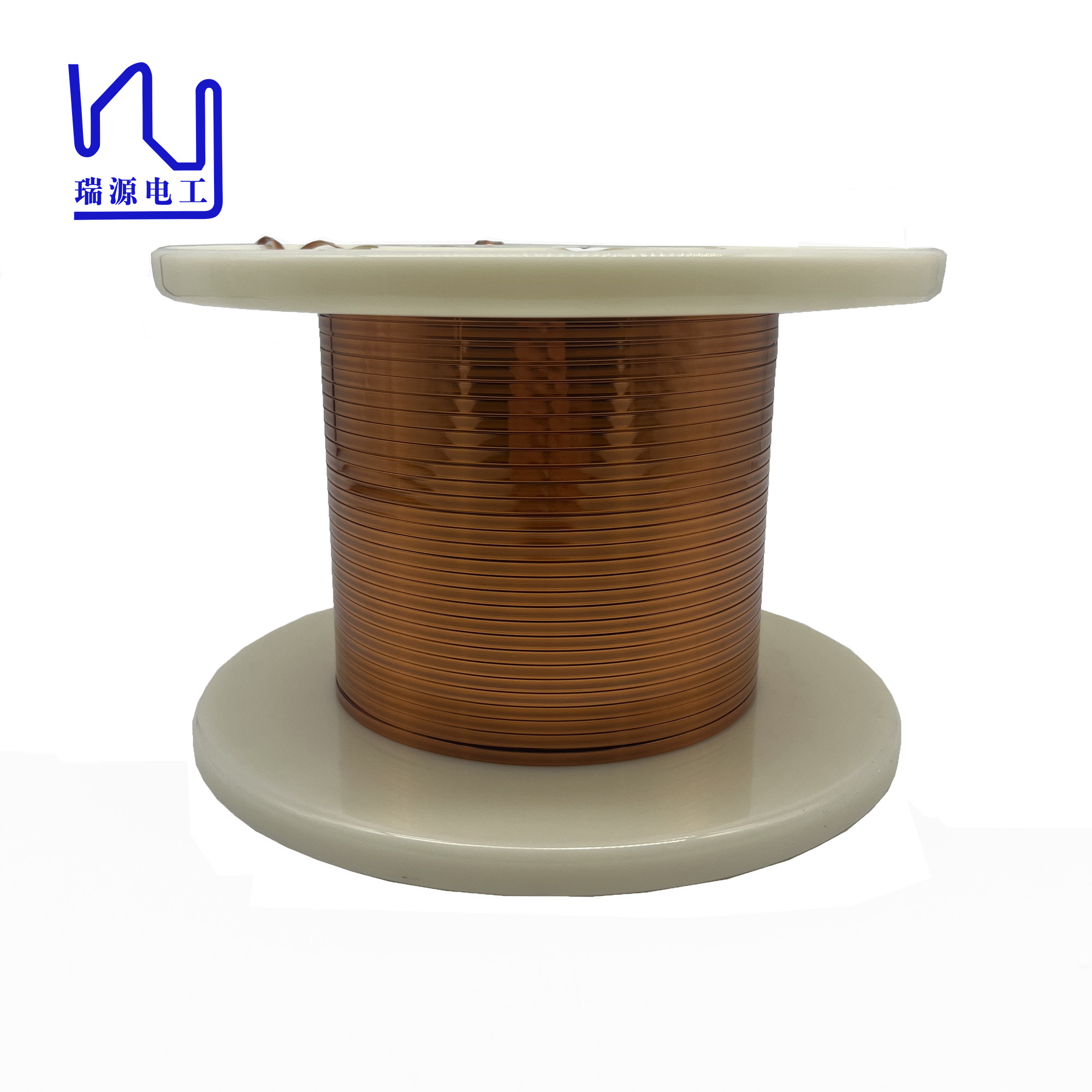

Motor/Transformer Rectangular Copper Wire with ROHS/UL/SGS/ISO9001 Certification
Transformers also benefit greatly from the superior performance of our flat wires. Our custom flat wire has a 25:1 width-to-thickness ratio and superior winding capabilities for efficient energy transfer and minimal power loss. Whether for power distribution, voltage regulation or impedance matching, our flat wires are designed to meet the demanding requirements of modern transformers, ensuring reliable and consistent operation.
|
