| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Overall Dimension (Width): | 3.5mm | Certificates: | ROHS/UL/SGS/ISO9001:2008 |
|---|---|---|---|
| Product Name: | AIW 220 3.5mmX0.4mm Enameled Flat Copper Wire For Automotive | Product Category: | Rectangular Copper Wire |
| Type: | Insulated | Unilateral Insulation Layer Thickness: | 0.022mm |
| Conductor Dimension (Thickness): | 0.4mm | Keyword: | SFT-AIW220 Rectangular Enameled Copper Wire 0.4mm |
| Highlight: | 0.4mm Rectangular Enameled Copper Wire,SFT-AIW220 Rectangular Enameled Copper Wire |
||

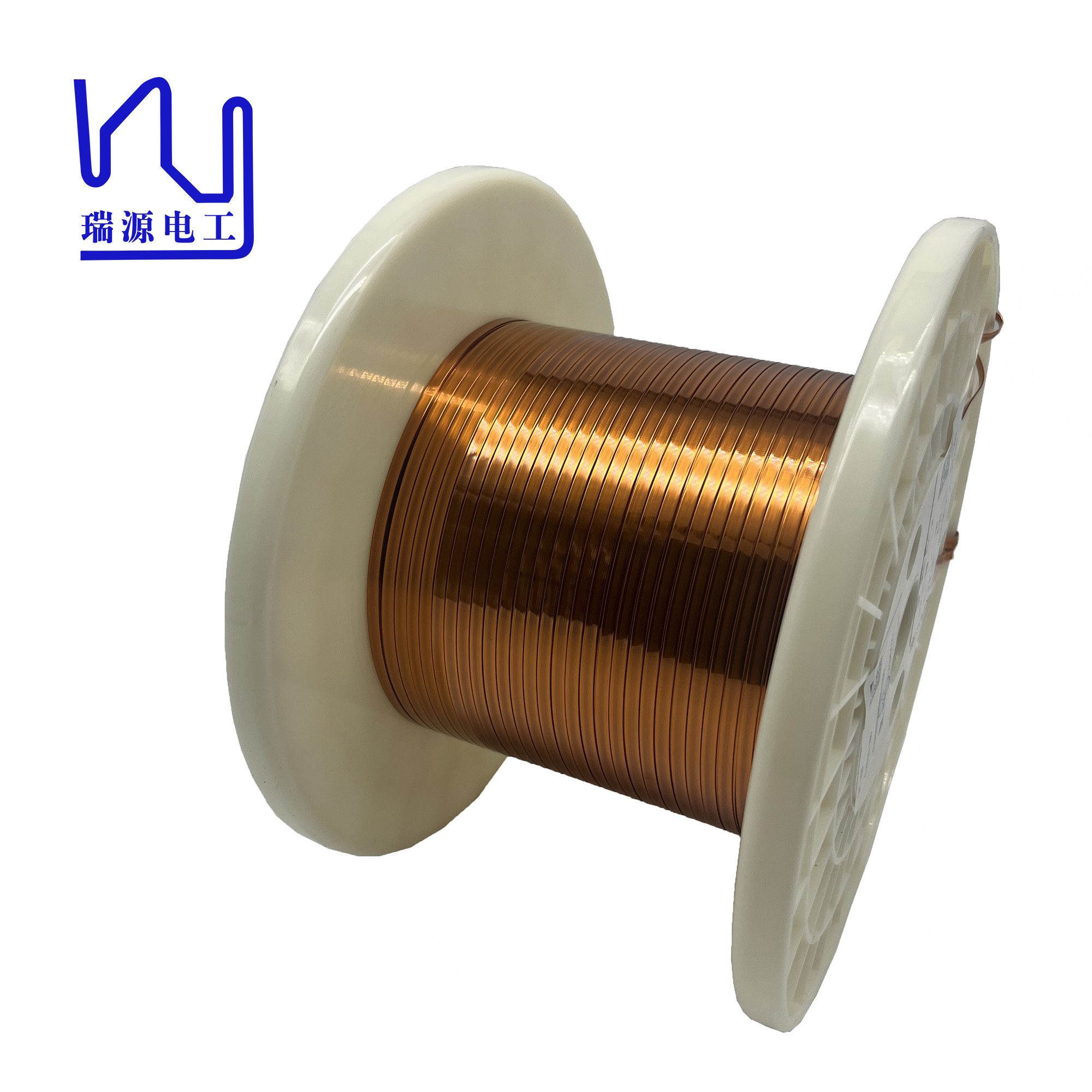

SFT-AIW220 Rectangular Enameled Copper Wire 0.4mm
Transformers also benefit greatly from the superior performance of our flat wires. Our custom flat wire has a 25:1 width-to-thickness ratio and superior winding capabilities for efficient energy transfer and minimal power loss. Whether for power distribution, voltage regulation or impedance matching, our flat wires are designed to meet the demanding requirements of modern transformers, ensuring reliable and consistent operation.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
||||
|
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
|
|
|
|
Unit |
mm |
mm |
mm |
mm |
mm |
mm |
kv |
Ω/km 20℃ |
|
|
SPEC |
AVE |
0.400 |
3.500 |
0.025 |
0.025 |
|
|
|
|
|
|
Max |
0.409 |
3.560 |
0.040 |
0.040 |
0.450 |
3.600 |
|
13.510 |
|
|
Min |
0.391 |
3.440 |
0.010 |
0.010 |
|
|
0.700 |
|
|
No. 1 |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
12.720 |
|
|
No. 2 |
|
|
|
|
|
|
1.540 |
|
|
|
No. 3 |
|
|
|
|
|
|
1.632 |
|
|
|
No. 4 |
|
|
|
|
|
|
1.324 |
|
|
|
No. 5 |
|
|
|
|
|
|
2.141 |
|
|
|
Avg |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.789 |
|
|
|
No. of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
|
|
|
Min. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.324 |
|
|
|
Max. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
|
|
|
Range |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.986 |
|
|
|
Result |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
