| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Material: | Copper | Shape: | Rectangular |
|---|---|---|---|
| Conductor Dimension (Thickness): | 0.4mm | Dielectric Breakdown Voltage: | 2.310kv |
| Type: | Insulated | Overall Dimension (Width): | 3.5mm |
| Key Word: | AIW220 High Temperature 3.5mmx0.4mm Motor/Transformer Rectangular Copper Wire | ||
| Highlight: | AIW220 Rectangular Copper Wire,3.5mmx0.4mm Rectangular Copper Wire,High Temperature Rectangular Copper Wire |
||

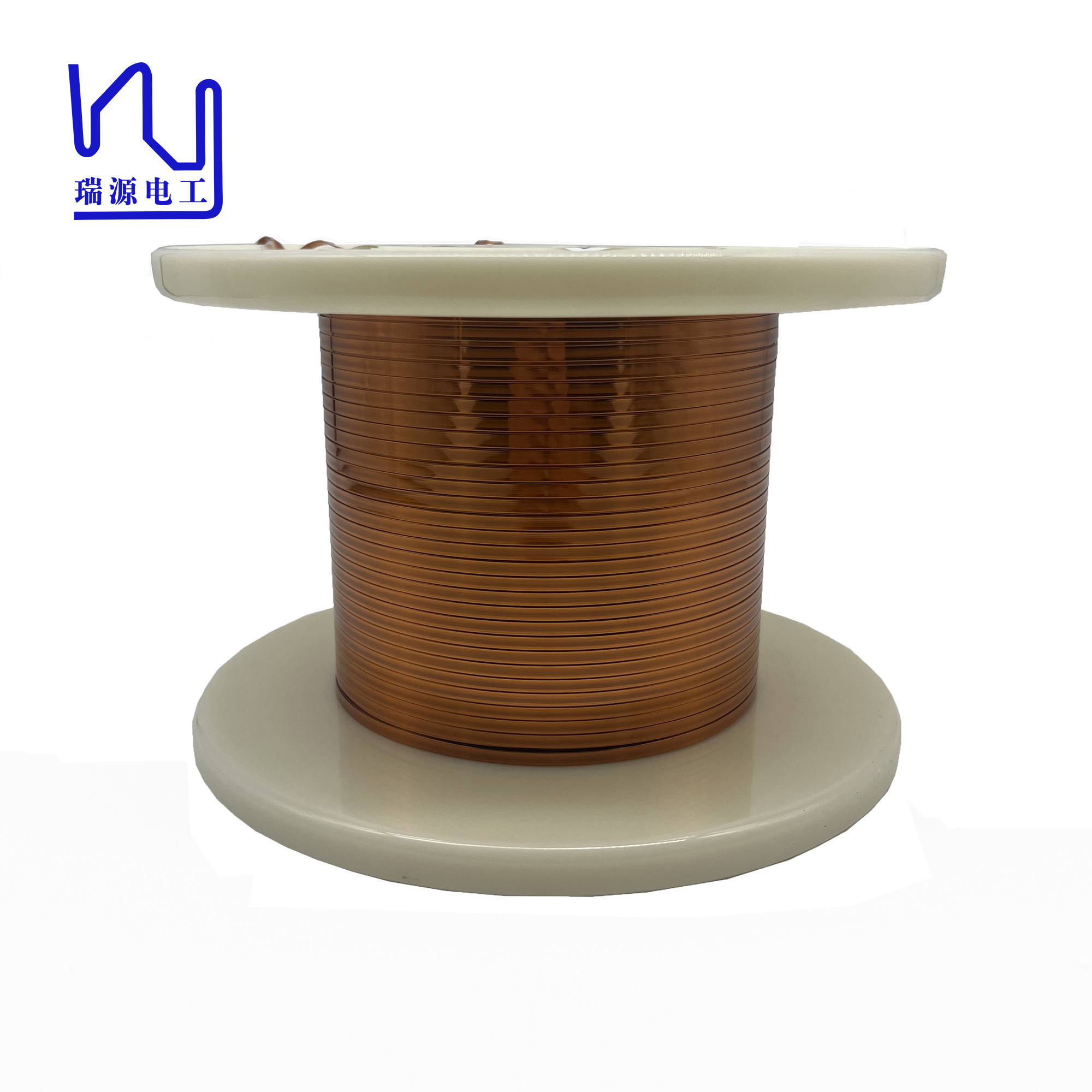

AIW220 High Temperature 3.5mmx0.4mm Motor/Transformer Rectangular Copper Wire
In the rapidly growing electric vehicle industry, the enameled flat copper wire is key components in propulsion systems that drive innovation and sustainability. Able to withstand high temperatures and harsh operating conditions, our enameled flat copper wire is ideal for electric vehicle manufacturers looking to optimize the performance and longevity of their propulsion systems. From traction motors to power electronics, our flat wires contribute to the advancement of electric vehicles.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
||||
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
||||
|
Unit |
mm |
mm |
mm |
mm |
mm |
mm |
kv |
Ω/km 20℃ |
|
|
SPEC |
AVE |
0.400 |
3.500 |
0.025 |
0.025 |
|
|
|
|
|
Max |
0.409 |
3.560 |
0.040 |
0.040 |
0.450 |
3.600 |
|
13.510 |
|
|
Min |
0.391 |
3.440 |
0.010 |
0.010 |
|
|
0.700 |
|
|
|
No. 1 |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
12.720 |
|
|
No. 2 |
|
|
|
|
|
|
1.540 |
||
|
No. 3 |
|
|
|
|
|
|
1.632 |
||
|
No. 4 |
|
|
|
|
|
|
1.324 |
||
|
No. 5 |
|
|
|
|
|
|
2.141 |
||
|
Avg |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.789 |
||
|
No. of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
||
|
Min. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.324 |
||
|
Max. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
||
|
Range |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.986 |
||
|
Result |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
