| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Unilateral Insulation Layer Thickness: | 0.022mm | Shape: | Rectangular |
|---|---|---|---|
| Key Word: | Custom3.5mmx0.4mm Enameled Flat Copper Wire For Motor Winding | Thickness: | 0.4mm |
| Product Category: | Rectangular Copper Wire | Type: | Insulated |
| Product Name: | Custom3.5mmx0.4mm Enameled Flat Copper Wire For Motor Winding | Conductor Dimension (Width): | 3.5mm |
| Highlight: | Custom Enameled flat copper wire,Motor Winding Enameled flat copper wire,3.5mmx0.4mm Enameled flat copper wire |
||

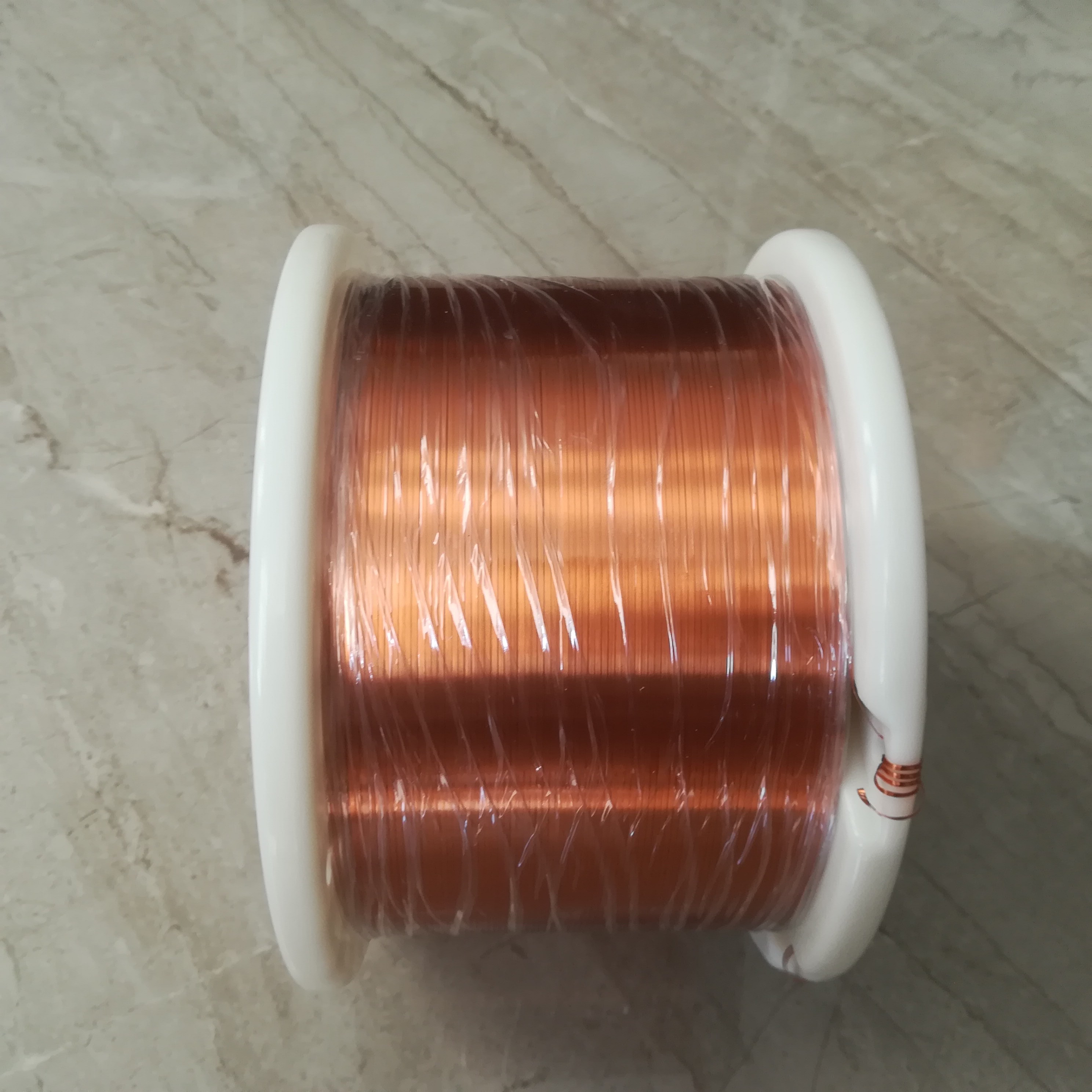

Custom3.5mmx0.4mm Enameled flat copper wire for Motor Winding
Our Rectangular Copper Wire has a solid conductor type, ensuring stable and consistent electrical conductivity. With a thickness of 0.4mm, it is perfect for those who need a 3.5mmx0.4mm flat wire. This thickness is ideal for use in a variety of electrical applications, including transformers, motors, and generators.
Our Rectangular Copper Wire is insulated, which means it has a protective layer to prevent electrical shocks or shorts. This feature is essential to ensure safety in electrical applications and to protect the wire from damage caused by external factors such as moisture or heat.
Features:
Product Name: Rectangular Copper Wire
Product Category: Rectangular Copper Wire
Key Word: AIW 220 3.5mmX0.4mm Enameled Flat Copper Wire For Automotive
Width: 3.5mm
Conductor Type: Solid
Unilateral Insulation Layer Thickness: 0.022mm
Description: This Rectangular Copper Wire is a flat wire with a width of 3.5mm and a solid conductor type. It is coated with a 0.022mm unilateral insulation layer, making it suitable for use in automotive applications. The AIW 220 3.5mmX0.4mm Enameled Flat Copper Wire is a versatile and durable option for any project that requires a Rectangular copper wire or Rectangular wire.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
||||
|
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
|
|
|
|
Unit |
mm |
mm |
mm |
mm |
mm |
mm |
kv |
Ω/km 20℃ |
|
|
SPEC |
AVE |
0.400 |
3.500 |
0.025 |
0.025 |
|
|
|
|
|
|
Max |
0.409 |
3.560 |
0.040 |
0.040 |
0.450 |
3.600 |
|
13.510 |
|
|
Min |
0.391 |
3.440 |
0.010 |
0.010 |
|
|
0.700 |
|
|
No. 1 |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
12.720 |
|
|
No. 2 |
|
|
|
|
|
|
1.540 |
|
|
|
No. 3 |
|
|
|
|
|
|
1.632 |
|
|
|
No. 4 |
|
|
|
|
|
|
1.324 |
|
|
|
No. 5 |
|
|
|
|
|
|
2.141 |
|
|
|
Avg |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.789 |
|
|
|
No. of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
|
|
|
Min. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.324 |
|
|
|
Max. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
|
|
|
Range |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.986 |
|
|
|
Result |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
