| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Dielectric Breakdown Voltage: | Max, 2.310kv | Product Name: | Rectangular Copper Wire Dielectric Breakdown Voltage Max.2.310kv For Maximum Conductivity |
|---|---|---|---|
| Temperature: | 220℃ | Product Category: | Rectangular Copper Wire |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Conductor Type: | Solid |
| Type: | Insulated | Key Word: | Rectangular Copper Wire Dielectric Breakdown Voltage Max.2.310kv For Maximum Conductivity |
| Highlight: | Dielectric Breakdown Voltage Rectangular Copper Wire,Maximum Conductivity Rectangular Copper Wire,2.310kv Rectangular Copper Wire |
||

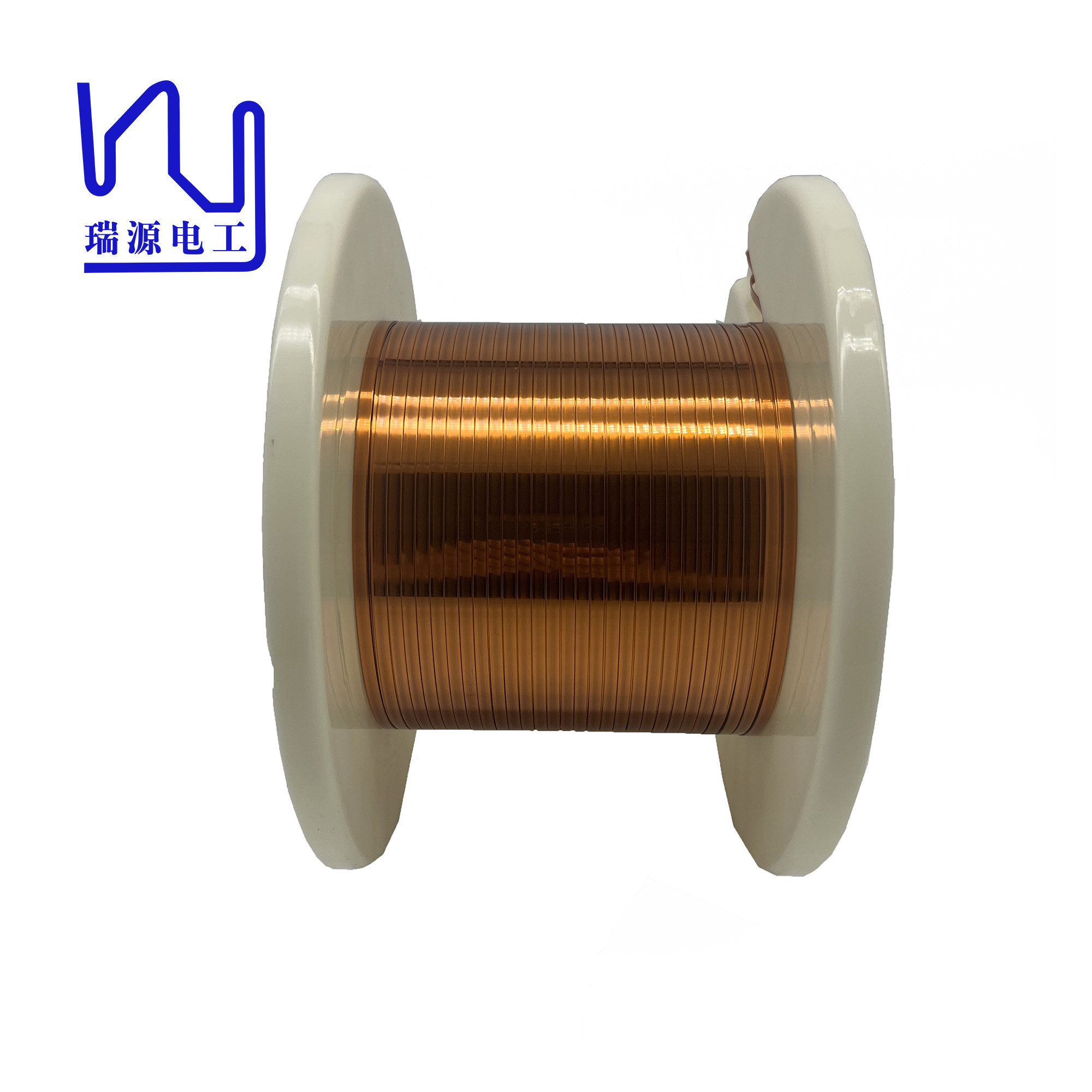

Rectangular Copper Wire Dielectric Breakdown Voltage Max.2.310kv for Maximum Conductivity
Our SFT-AIW insulated wire is perfect for a range of applications including motors, transformers, and generators. The rectangular shape of the wire ensures a good fit and makes it easy to wind and handle. The conductor dimension, with a width of 3.499mm, ensures that it provides a stable and consistent current flow.
The SFT-AIW insulated wire is designed to withstand high temperature applications, with a maximum temperature rating of 220℃. This makes it ideal for use in harsh environments where the wire may be exposed to extreme temperatures.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
||||
|
|
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
|
|
|
|
Unit |
mm |
mm |
mm |
mm |
mm |
mm |
kv |
Ω/km 20℃ |
|
|
SPEC |
AVE |
0.400 |
3.500 |
0.025 |
0.025 |
|
|
|
|
|
|
Max |
0.409 |
3.560 |
0.040 |
0.040 |
0.450 |
3.600 |
|
13.510 |
|
|
Min |
0.391 |
3.440 |
0.010 |
0.010 |
|
|
0.700 |
|
|
No. 1 |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
12.720 |
|
|
No. 2 |
|
|
|
|
|
|
1.540 |
|
|
|
No. 3 |
|
|
|
|
|
|
1.632 |
|
|
|
No. 4 |
|
|
|
|
|
|
1.324 |
|
|
|
No. 5 |
|
|
|
|
|
|
2.141 |
|
|
|
Avg |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.789 |
|
|
|
No. of reading |
1 |
1 |
1 |
1 |
1 |
1 |
5 |
|
|
|
Min. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
1.324 |
|
|
|
Max. reading |
0.397 |
3.499 |
0.022 |
0.021 |
0.441 |
3.541 |
2.310 |
|
|
|
Range |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
0.986 |
|
|
|
Result |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
OK |
|
