| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |

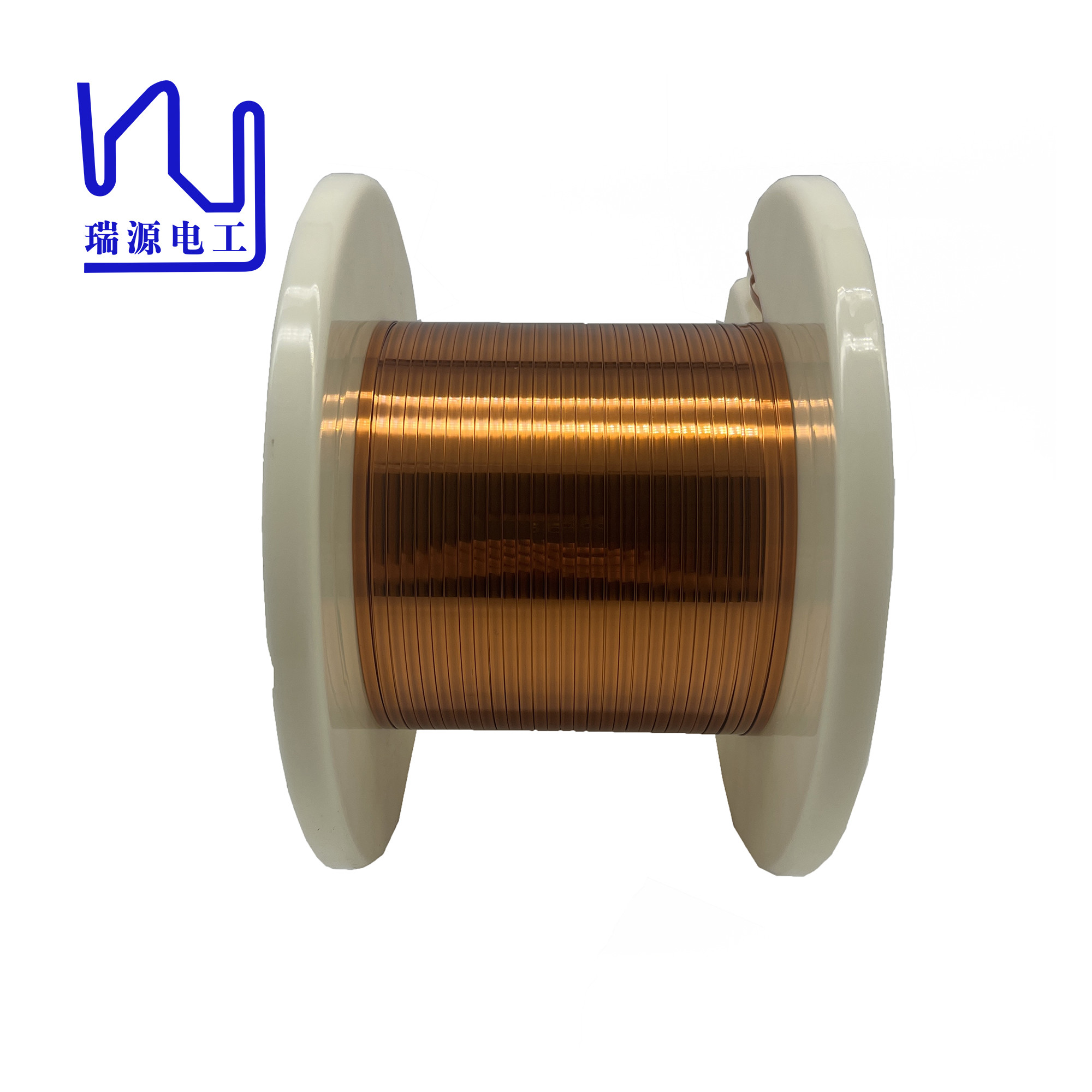

| Application: | Motor/Transformer | Product Name: | Conductor Dimension 0.4mm SFT-AIW AIW 220 Enameled Flat Copper Wire For Automotive |
|---|---|---|---|
| Width: | 3.5mm | Thickness: | 0.4mm |
| Type: | Insulated | Overall Dimension (Thickness): | 0.441mm |
| Conductor Dimension (Width): | 3.499mm | Unilateral Insulation Layer Thickness: | 0.022mm |
| Key Word: | Conductor Dimension 0.4mm SFT-AIW AIW 220 Enameled Flat Copper Wire For Automotive | ||
| Highlight: | AIW Enameled Flat Copper Wire,Automotive Enameled Flat Copper Wire,0.4mm Enameled Flat Copper Wire |
||
With an overall dimension of 3.4mm, our Rectangular Copper Wire is the perfect choice for those looking for a reliable and high-quality option. This product falls under the Rectangular Copper Wire category and is insulated to ensure maximum safety and performance.
Our Rectangular Copper Wire is made using high-quality materials and is designed to meet the specific needs of motor and transformer applications. Whether you need a wire for your new or existing motor/transformer, our product is perfectly suited to your needs.
The Rectangular Copper Wire is designed in a rectangular shape, making it easy to install and use in a variety of applications. It is perfect for winding motors and transformers and is sure to provide reliable and consistent performance.
This product is commonly referred to as SFT-AIW and is known for its superior quality and durability. It is designed to withstand high temperatures and is suitable for use in harsh and demanding environments.
Our Flat Copper Wire for Motor Winding is perfect for those looking for a high-quality product that will provide reliable performance for years to come. Whether you are a professional or a DIY enthusiast, our product is sure to meet your specific needs.
So if you are looking for a reliable and high-quality Rectangular Copper Wire for your motor or transformer winding needs, look no further than our product. With its superior quality and durability, it is sure to meet all your expectations and more. Order today and experience the difference for yourself!
| Item | conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance | ||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | |
|
SPEC |
AVE | 0.400 | 3.500 | 0.025 | 0.025 | ||||
| Max | 0.409 | 3.560 | 0.040 | 0.040 | 0.450 | 3.600 | 13.510 | ||
| Min | 0.391 | 3.440 | 0.010 | 0.010 | 0.700 | ||||
| No. 1 | 0.397 | 3.499 | 0.022 | 0.021 | 0.441 | 3.541 | 2.310 |
12.720 |
|
| No. 2 | 1.540 | ||||||||
| No. 3 | 1.632 | ||||||||
| No. 4 | 1.324 | ||||||||
| No. 5 | 2.141 | ||||||||
| Avg | 0.397 | 3.499 | 0.022 | 0.021 | 0.441 | 3.541 | 1.789 | ||
| No. of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||
| Min. reading | 0.397 | 3.499 | 0.022 | 0.021 | 0.441 | 3.541 | 1.324 | ||
| Max. reading | 0.397 | 3.499 | 0.022 | 0.021 | 0.441 | 3.541 | 2.310 | ||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.986 | ||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | |
