| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Polyurethane 155 44AWG PU Enameled Copper Winding Wire 2uew / 3uew | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | Polyurethane 155 44AWG PU Enameled Copper Winding Wire 2uew / 3uew |
| Type: | Polyurethane 155 44AWG PU Enameled Copper Winding Wire 2uew / 3uew | ||
| Highlight: | 44AWG PU Enameled Copper Winding Wire,155 PU Enameled Copper Winding Wire,Polyurethane PU Enameled Copper Winding Wire |
||

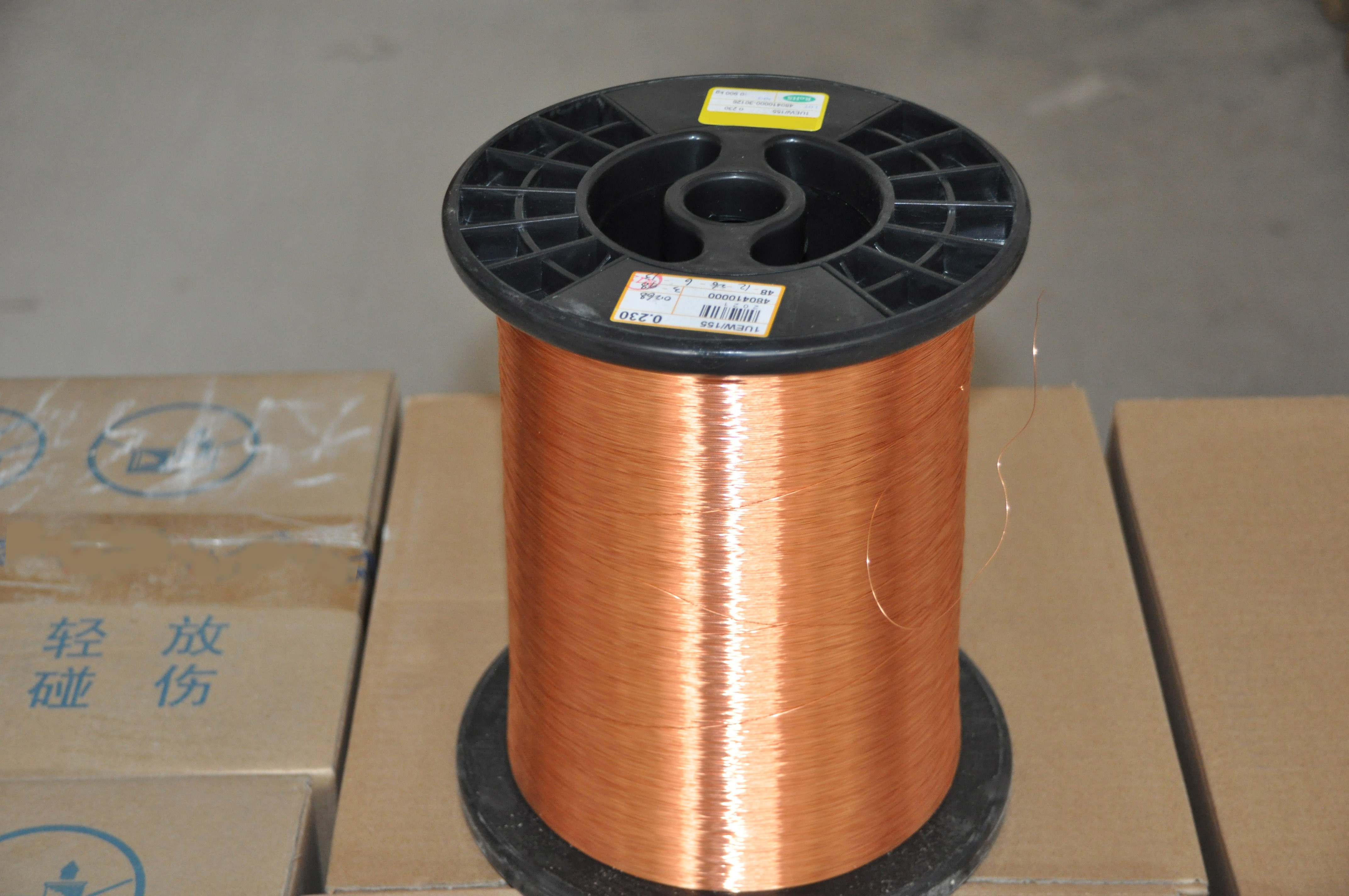

Polyurethane 155 44AWG PU Enameled Copper Winding Wire 2uew / 3uew
Ultra-thin enameled copper wire is a special wire widely used in electronic products. Its insulation layer is extremely thin, making the wire diameter very thin. This type of copper wire is commonly used in the manufacture of microelectronic components such as micromotors, sensors and coils. Its ultra-thin insulation layer allows it to provide good insulation properties in limited spaces while maintaining high conductivity. This kind of copper wire is widely used in small electronic devices such as mobile phones, tablets, and headphones, providing important support for the miniaturization and high performance of these devices.
|
Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.05mm ± | 0.002mm | 0.050 | 0.050 | 0.050 |
| Thickness of Insulation | ≥0.005mm | 0.0080 | 0.0080 | 0.0080 | |
| Overall Diameter | ≤ 0.006 mm | 0.058 | 0.058 | 0.058 | |
| DC Resistance | ≤ 9.528 Ω/m | 8.753 | 8.713 | 8.723 | |
| Elongation | ≥ 12 % | 20 | 20 | 21 | |
| Breakdown Voltage | ≥275V | 863 | 747 | 832 | |
| Pin Hole | ≤ 8 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | / | 0 | 0 | 0 | |
|
Name |
Enamel Winding Wire 2uew / 3uew 155 Magnet Wire |
|
Key word |
Enamel Winding Wire 2uew / 3uew 155 Magnet Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.05mm |
