| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Contuctor Type: | Solid | Material: | Copper |
|---|---|---|---|
| Shape: | Rectangular | Width: | 3.0mm |
| Type: | Insulated | Temperature: | 220℃ |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Product Name: | 0.8X3.0 AIW Enamelled Flat Copper Wire For Automotive Winding |
| Key Word: | 0.8X3.0 AIW Enamelled Flat Copper Wire For Automotive Winding | Thickness: | 0.8mm |
| Highlight: | AIW Enamelled Flat Copper Wire,Automotive Winding Enamelled Flat Copper Wire,0.8X3.0 Enamelled Flat Copper Wire |
||

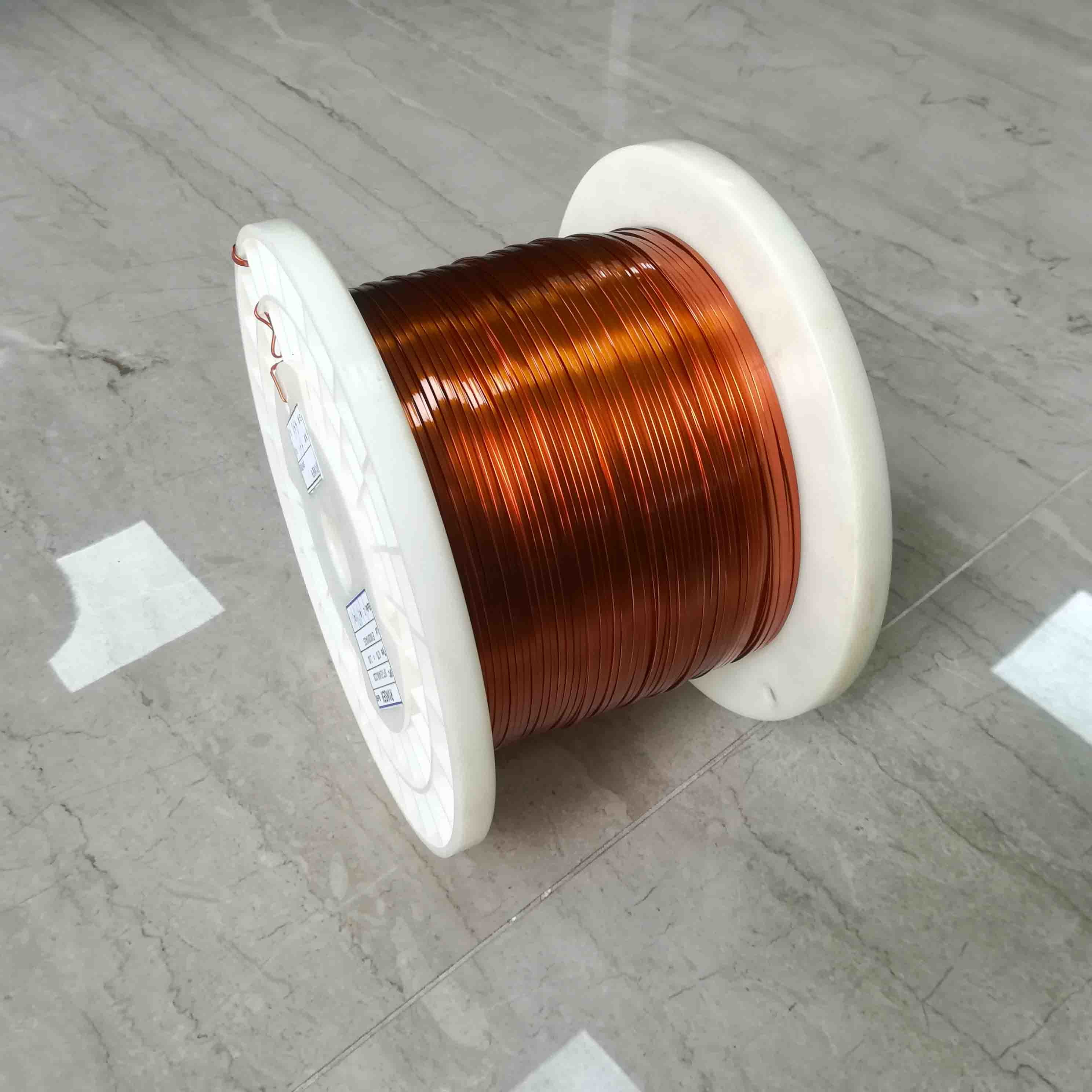

0.8X3.0 AIW Enamelled Flat Copper Wire for Automotive Winding
The enameled flat wire can be used in automotive applications. The flat shape and insulation properties of enameled flat wire make it suitable for use in various automotive components and systems.
Enameled flat wire is used in the windings of electric motors used in automotive applications, such as window regulators, seat motors, and HVAC blowers.
Enameled flat wire is also used in the construction of ignition coils, which are essential components in automotive ignition systems. The high-voltage windings of ignition coils are often made using enameled flat wire due to its insulation properties and compact design.
|
Key word: 0.8X3.0 AIW Enamelled Flat Copper Wire for Automotive Winding
|
|
|
|
Width max. 3.10mm
|
|
Thickness max. 0.88mm
|
|
|
Resistance @20C
|
max. 8.15Ω/km
|
|
Breakdown Voltage
|
min. 0.70KV
|
|
Elongation
|
min. 30%
|
|
Pinhole
|
max. 3 pcs/m
|
