| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Contuctor Type: | Solid | Material: | Copper |
|---|---|---|---|
| Width: | 1mm | Shape: | Rectangular |
| Durability: | High | Type: | Insulated |
| Temperature: | 220℃ | Certificates: | ROHS/UL/SGS/ISO9001:2008 |
| Product Name: | High Temperature 220C Enameled Flat Copper Wire 1mm Width For Your Requirements | Key Word: | High Temperature 220C Enameled Flat Copper Wire 1mm Width For Your Requirements |
| Highlight: | SGS Rectangular enameled wire,220C Rectangular enameled wire,1mm Rectangular enameled wire |
||

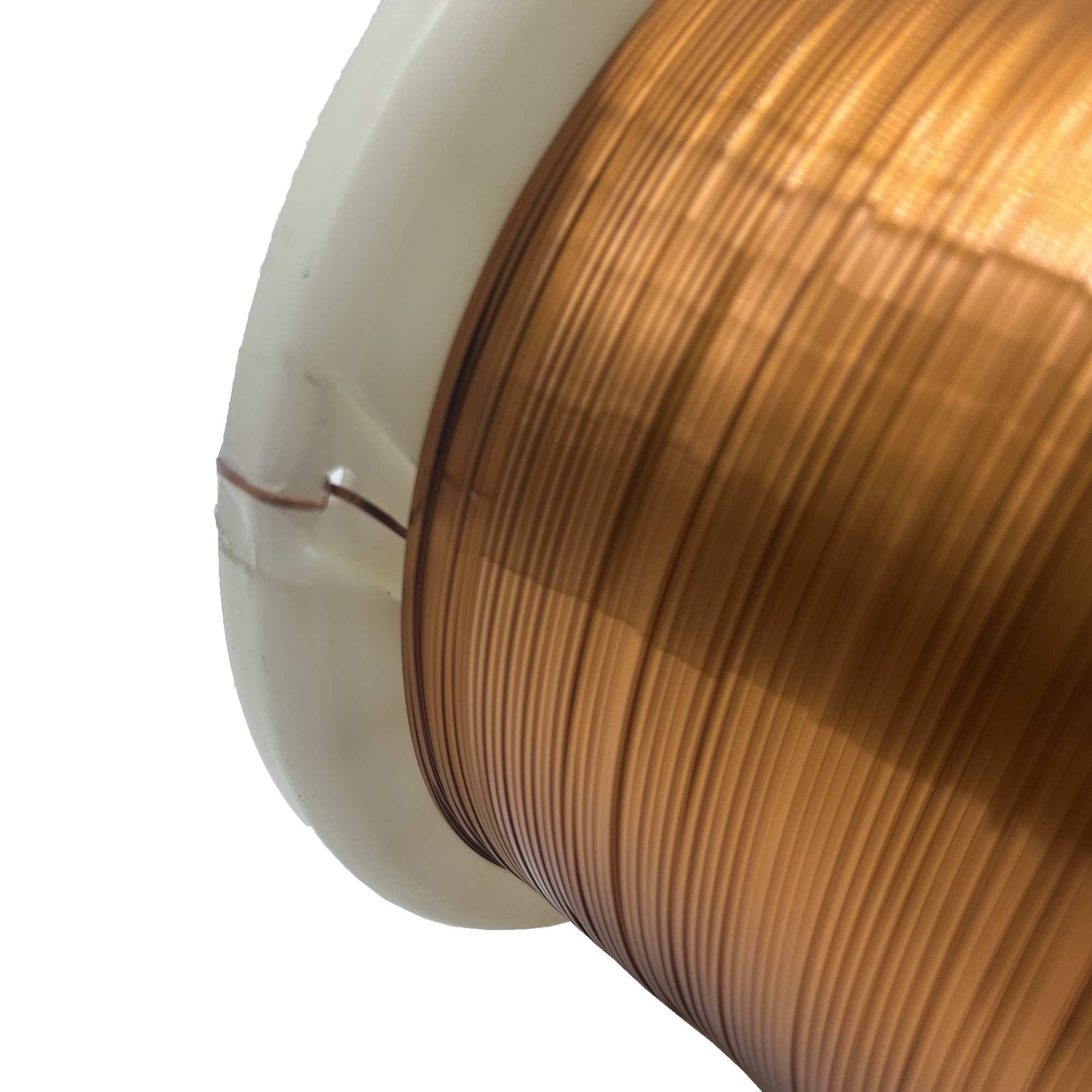

High Temperature 220C Enameled Flat Copper Wire 1mm Width for Your Requirements
In the industrial field, enameled flat copper wire is widely used in the manufacture of motors, generators and transformers. The flat profile of the wire enables a compact winding design, resulting in space-saving and efficient electrical components.
Additionally, the wire's high thermal stability ensures that it can withstand the heat generated during operation, making it a reliable choice for demanding industrial applications. The customizability of the wire, including size and coating options, allows for customized solutions to meet specific industrial requirements.
|
Item
|
conductor dimension |
Unilateral Self adhesive thickness |
Insulation thickness |
Overall dimension |
Breakdown voltage
|
Conductor resistance |
Elongation |
soldering temperature
|
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||||
| Unit | mm | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % |
410±10℃ |
|
|
SPEC |
Ave | 0.250 | 1.000 | 0.025 | 0.025 | |||||||
| Max | 0.259 | 1.060 | 0.040 | 0.040 | 0.310 | 1.110 | 65.730 | |||||
| Min | 0.241 | 0.940 | 0.002 | 0.010 | 0.010 | 0.700 | 30 | |||||
| No. 1 | 0.2558 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.320 |
62.240
|
34
|
Good
|
|
| No. 2 | 2.310 | |||||||||||
| No. 3 | 3.020 | |||||||||||
| No. 4 | 1.240 | |||||||||||
| No. 5 | 1.419 | |||||||||||
| Ave | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.862 | ||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.240 | ||||
| Max. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 3.020 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.780 | ||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | ||
