| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Temperature: | 220℃ | Durability: | High |
|---|---|---|---|
| Usage: | Industrial/Commercial | Shape: | Rectangular |
| Thickness: | 0.25mm | Delivery: | Copper |
| Contuctor Type: | Solid | Width: | 1mm |
| Product Name: | Industrial Rectangular Copper Wire With Solid Conductor And Insulation Coating | Key Word: | Industrial Rectangular Copper Wire With Solid Conductor And Insulation Coating |
| Highlight: | Insulation Coating Rectangular Copper Wire,Solid Conductor Rectangular Copper Wire,Industrial Rectangular Copper Wire |
||

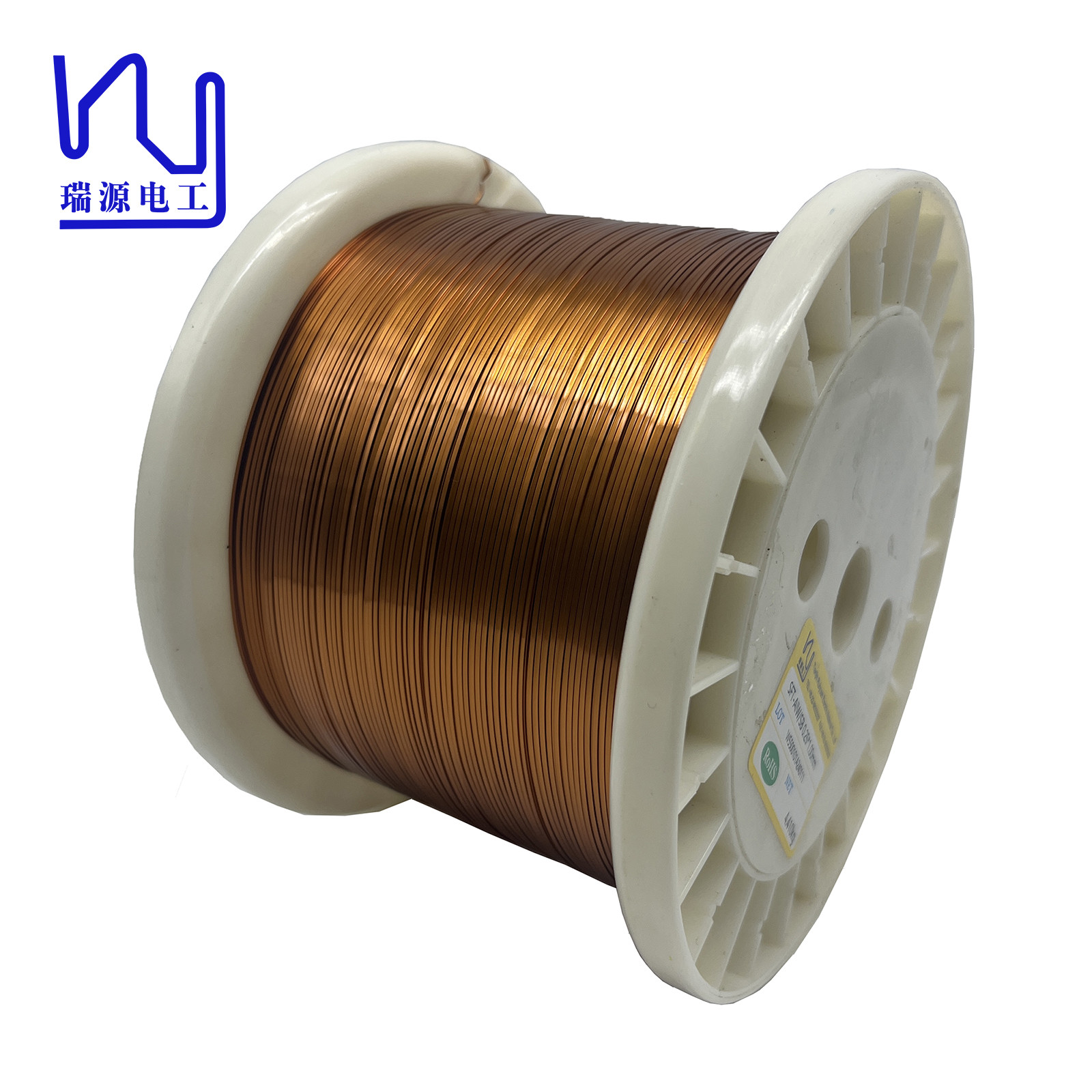

Industrial Rectangular Copper Wire with Solid Conductor and Insulation Coating
In electronic products, enamelled flat copper wire plays a vital role in the production of various components such as coils, inductors, solenoids, etc. Its flat and uniform shape facilitates precise winding and assembly, helping to improve the performance and reliability of electronic devices. The wire's high temperature resistance ensures that it can withstand the thermal stresses encountered in electronic applications, making it suitable for consumer electronics, automotive electronics and telecommunications equipment.
|
Item
|
conductor dimension |
Unilateral Self adhesive thickness |
Insulation thickness |
Overall dimension |
Breakdown voltage
|
Conductor resistance |
Elongation |
soldering temperature
|
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||||
| Unit | mm | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % |
410±10℃ |
|
|
SPEC |
Ave | 0.250 | 1.000 | 0.025 | 0.025 | |||||||
| Max | 0.259 | 1.060 | 0.040 | 0.040 | 0.310 | 1.110 | 65.730 | |||||
| Min | 0.241 | 0.940 | 0.002 | 0.010 | 0.010 | 0.700 | 30 | |||||
| No. 1 | 0.2558 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.320 |
62.240
|
34
|
Good
|
|
| No. 2 | 2.310 | |||||||||||
| No. 3 | 3.020 | |||||||||||
| No. 4 | 1.240 | |||||||||||
| No. 5 | 1.419 | |||||||||||
| Ave | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.862 | ||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.240 | ||||
| Max. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 3.020 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.780 | ||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | ||
