| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | SFT-AIW220 |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Delivery: | Copper | Certificates: | ROHS/UL/SGS/ISO9001:2008 |
|---|---|---|---|
| Material: | Copper | Temperature: | 220℃ |
| Thickness: | 0.25mm | Type: | Insulated |
| Usage: | Industrial/Commercial | Shape: | Rectangular |
| Product Name: | High Temperature 220C Enameled Flat Copper Wire 1mm Width For Your Requirements | Key Word: | High Temperature 220C Enameled Flat Copper Wire 1mm Width For Your Requirements |
| Highlight: | Rectangular High Temperature Insulated Copper Wire,ROHS High Temperature Insulated Copper Wire,0.25mm High Temperature Insulated Copper Wire |
||

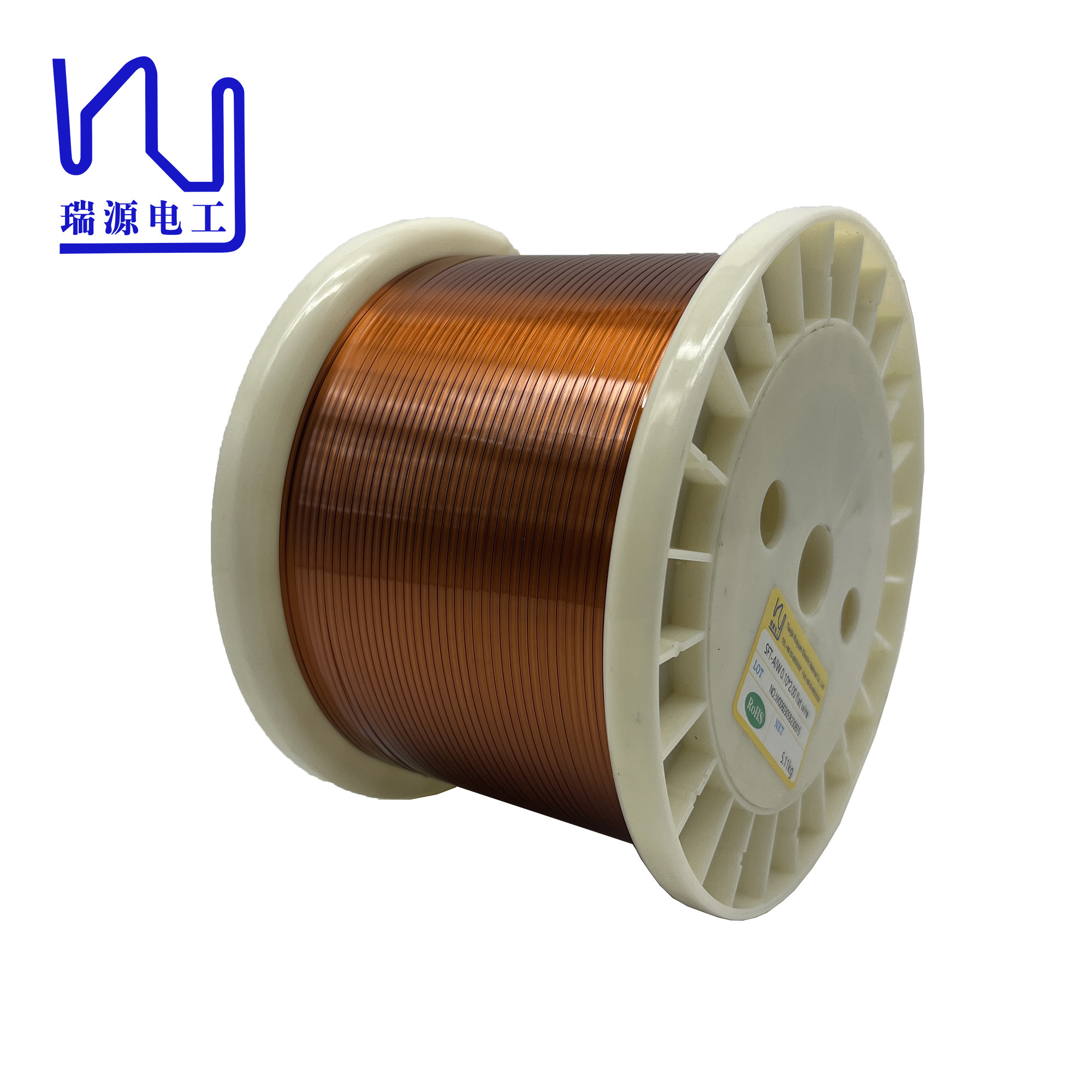

AIW Insulation 0.25mm*1.0mm Rectangular Enameled Copper Wire for Superior Electrical Properties
Enameled flat copper wire, also known as AIW flat enameled copper wire or rectangular copper enameled wire, is a versatile material that is widely used in various industrial and electronic applications. This type of wire offers several advantages over traditional round wire, making it the first choice for many manufacturers.
|
Item |
conductor dimension |
Unilateral Self adhesive thickness |
Insulation thickness |
Overall dimension |
Breakdown voltage |
Conductor resistance |
Elongation |
soldering temperature |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||||
| Unit | mm | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | % |
410±10℃ |
|
|
SPEC |
Ave | 0.250 | 1.000 | 0.025 | 0.025 | |||||||
| Max | 0.259 | 1.060 | 0.040 | 0.040 | 0.310 | 1.110 | 65.730 | |||||
| Min | 0.241 | 0.940 | 0.002 | 0.010 | 0.010 | 0.700 | 30 | |||||
| No. 1 | 0.2558 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.320 |
62.240 |
34 |
Good |
|
| No. 2 | 2.310 | |||||||||||
| No. 3 | 3.020 | |||||||||||
| No. 4 | 1.240 | |||||||||||
| No. 5 | 1.419 | |||||||||||
| Ave | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.862 | ||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 1.240 | ||||
| Max. reading | 0.255 | 1.012 | 0.004 | 0.021 | 0.021 | 0.304 | 1.060 | 3.020 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.780 | ||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | ||
