| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.10mm |
| Thickness: | 0.90mm | Conductor Material: | Copper |
| Key Word: | High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Wire | ||
| Highlight: | High Quality Rectangular Magnet Wire,220 Degree Rectangular Magnet Wire,Enamel Coated Copper Rectangular Magnet Wire |
||

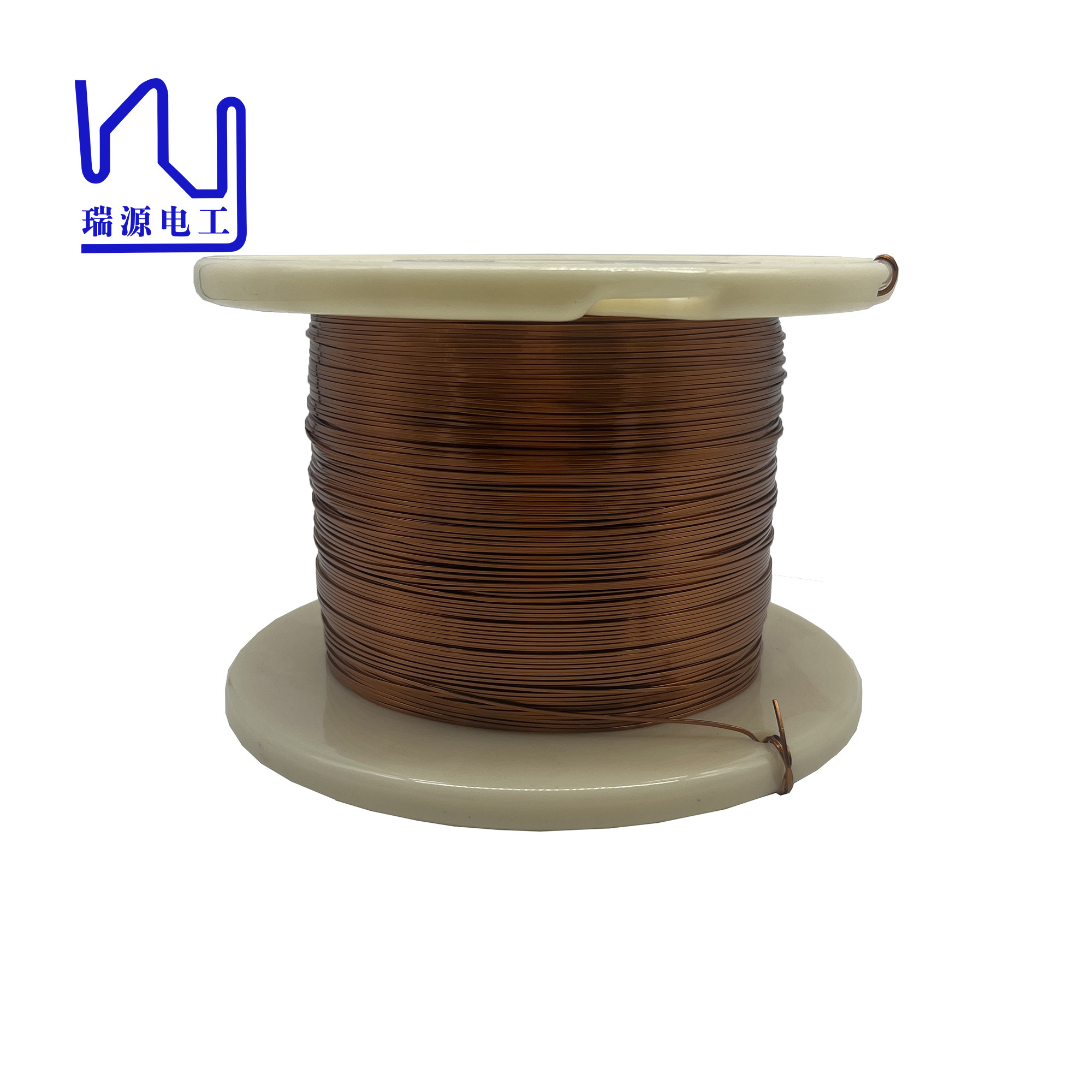

High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Wire
In motor applications, enamelled copper flat wire offers several advantages that make it the first choice for electrical conductivity. The flat shape of the wire allows for a higher packing factor, allowing more turns to be accommodated in a given space compared to round wire. This improves the electromagnetic characteristics and increases the efficiency of motor operation. Additionally, the low profile of the wire reduces the overall size and weight of the motor, making it suitable for applications where space and weight constraints are critical factors. These properties make enamelled flat wire ideal for use in various types of motors, including those used in automotive, industrial and consumer electronics.
| Model | SFT-AIW | Date | |||||||||
| Size(mm): | 0.900 × 1.100 | Lot | |||||||||
|
Key word |
High Quality Flat / Rectangular Magnet Wire 220 Degree Enamel Coated Copper Wire |
||||||||||
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | ||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.900 | 1.100 | 0.025 | 0.025 | ||||||
| Max | 0.930 | 1.160 | 0.040 | 0.040 | 0.980 | 1.200 | 1 | 22.600 | |||
| Min | 0.870 | 1.040 | 0.010 | 0.010 | 0.700 | 0 | 30 | ||||
| No. 1 | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.200 | 18.300 | 44 | ||
| No. 2 | 1.520 | ||||||||||
| No. 3 | 1.030 | ||||||||||
| No. 4 | 1.514 | ||||||||||
| No. 5 | 1.202 | ||||||||||
| Ave | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.293 | ||||
| No of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.030 | ||||
| Max. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.520 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.490 | ||||
