| Product Name: | AIW 0.90mm 220C Flat Enamelled Copper Wire For Motor Windings | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.10mm |
| Thickness: | 0.90mm | Conductor Material: | Copper |
| Key Word: | AIW 0.90mm 220C Flat Enamelled Copper Wire For Motor Windings | ||
| Highlight: | 220C Enamelled Copper Wire,Motor Windings Enamelled Copper Wire,0.90mm Enamelled Copper Wire |
||

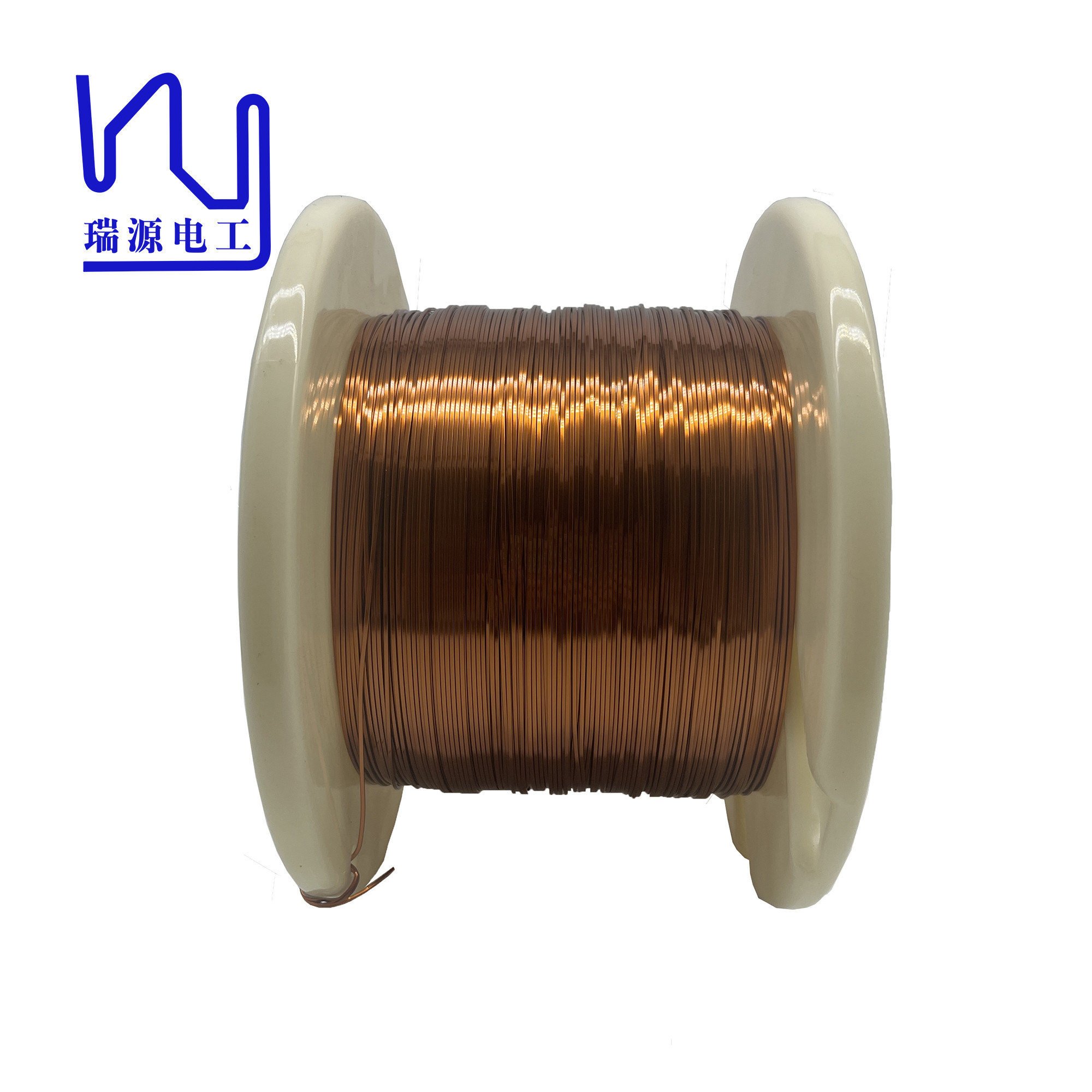

AIW 0.90mm 220C Flat Enamelled Copper Wire for Motor Windings
The wire's flat shape, with a width of 1.1 mm and a thickness of 0.9 mm, allows for efficient winding and compact construction within the motor, optimizing space utilization and contributing to the overall efficiency of the motor design. Additionally, the customizable nature of this flat wire allows for low-volume customization, providing the flexibility to meet specific motor design requirements.
In motor applications, enamelled copper flat wire offers several advantages that make it the first choice for electrical conductivity. The flat shape of the wire allows for a higher packing factor, allowing more turns to be accommodated in a given space compared to round wire.
| Model | SFT-AIW | Date | |||||||||
| Size(mm): | 0.900 × 1.100 | Lot | |||||||||
|
Key word |
AIW 0.90mm 220C Flat Enamelled Copper Wire for Motor Windings |
||||||||||
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | ||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % | |
|
SPEC |
AVE | 0.900 | 1.100 | 0.025 | 0.025 | ||||||
| Max | 0.930 | 1.160 | 0.040 | 0.040 | 0.980 | 1.200 | 1 | 22.600 | |||
| Min | 0.870 | 1.040 | 0.010 | 0.010 | 0.700 | 0 | 30 | ||||
| No. 1 | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.200 | 18.300 | 44 | ||
| No. 2 | 1.520 | ||||||||||
| No. 3 | 1.030 | ||||||||||
| No. 4 | 1.514 | ||||||||||
| No. 5 | 1.202 | ||||||||||
| Ave | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.293 | ||||
| No of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||
| Min. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.030 | ||||
| Max. reading | 0.907 | 1.108 | 0.028 | 0.033 | 0.962 | 1.174 | 1.520 | ||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.490 | ||||
