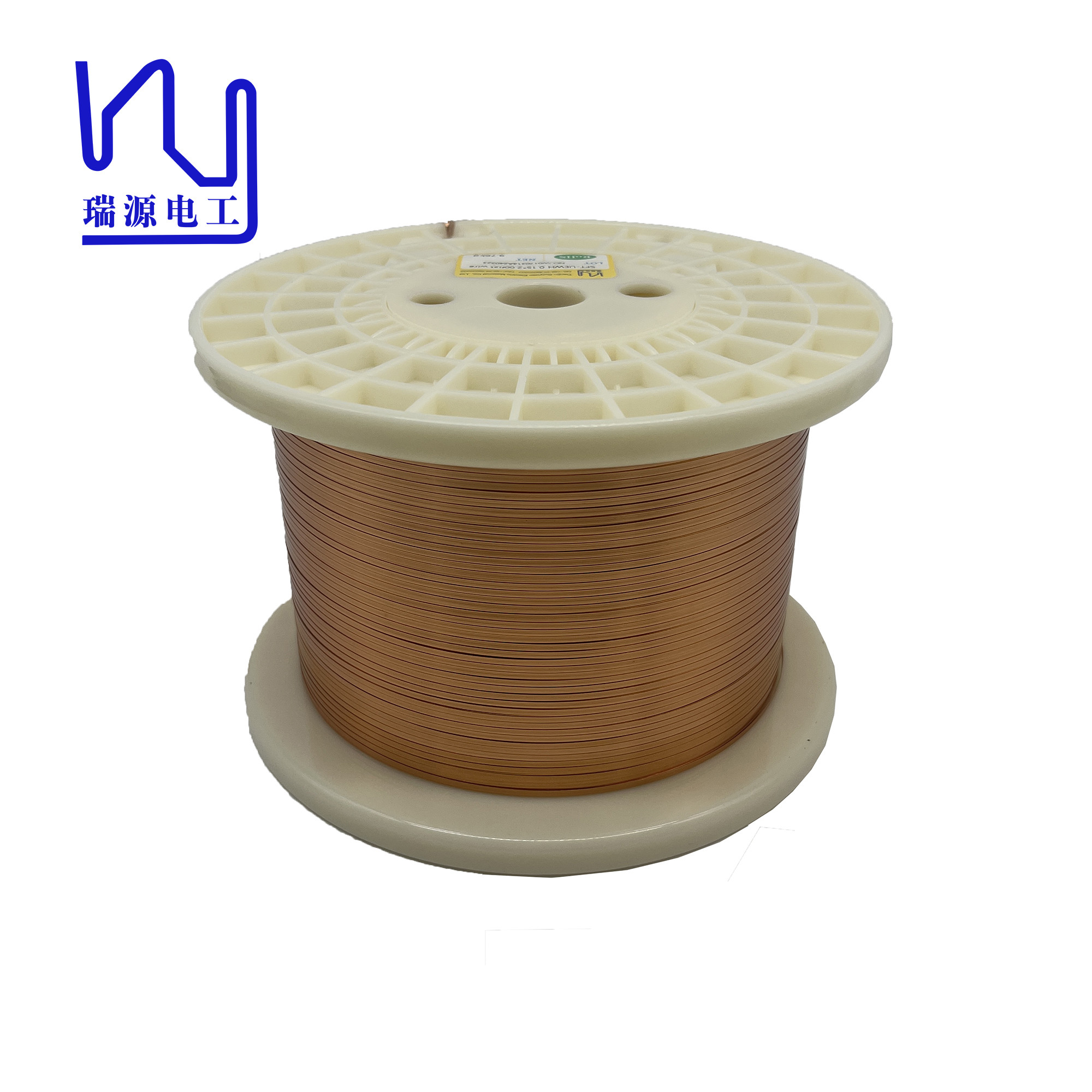

Product Name:	Customizable Flat Wire Class 180 0.2mm Rectangular Enameled Copper Wire	Thermal Rating:	180
Insulation Material:	UEW	Width:	2.00mm
Thickness:	0.15mm	Conductor Material:	Copper
Key Word:	Customizable Flat Wire Class 180 0.2mm Rectangular Enameled Copper Wire
Highlight:	Customizable Rectangular Flat Wire , Customizable Enameled Copper Flat Wire , Class 180 Flat Wire

EST REPORT
Model		SFT-UEWH					Date			2024-2-24
Size(mm):		0.150 × 2.000					Lot			/

Item		conductor dimension		Unilateral insulation thickness		Overall dimension		Breakdown voltage	Pinhole	Conductor resistance	Elongation	soldering temp	Thermal shock
Item		Thickness	Width	Thickness	Width	Thickness	Width	Breakdown voltage	Pinhole	Conductor resistance	Elongation	soldering temp	Thermal shock
Unit		mm	mm	mm	mm	mm	mm	kv	Pcs/m	Ω/km 20℃	%	410±10℃	No crack
SPEC	AVE	0.150	2.000	0.025	0.025
	Max	0.159	2.060	0.040	0.040	0.200	2.100		3	62.500
	Min	0.141	1.940	0.010	0.010			0.700			30
No. 1		0.146	1.999	0.020	0.023	0.185	2.045	0.965	0	58.670	39	Good	Good
No. 2		0.147	2.000	0.019	0.023	0.184	2.046	1.052
No. 3								1.320
No. 4								1.022
No. 5								1.185
No. 6								0.940
No. 7								1.320
No. 8								1.020
No. 9								1.052
No. 10								1.040
Ave		0.147	2.000	0.019	0.023	0.185	2.046	1.092
NO.of reading		2	2	2	2	2	2	10
Min. reading		0.146	1.999	0.019	0.023	0.184	2.045	0.940
Max. reading		0.147	2.000	0.020	0.023	0.185	2.046	1.320
Range		0.001	0.001	0.001	0.000	0.001	0.001	0.380
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
