| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Polyamideimide Enameled Rectangular Flat Copper Wire Square Flat Wire For Transformers | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.00mm |
| Thickness: | 0.30mm | Conductor Material: | Copper |
| Key Word: | Custom Polyamideimide Enameled Rectangular Flat Copper Wire Square Flat Wire For Transformers | ||
| Highlight: | Square Flat Copper Wire,Automotive Flat Copper Wire,Custom Flat Copper Wire |
||

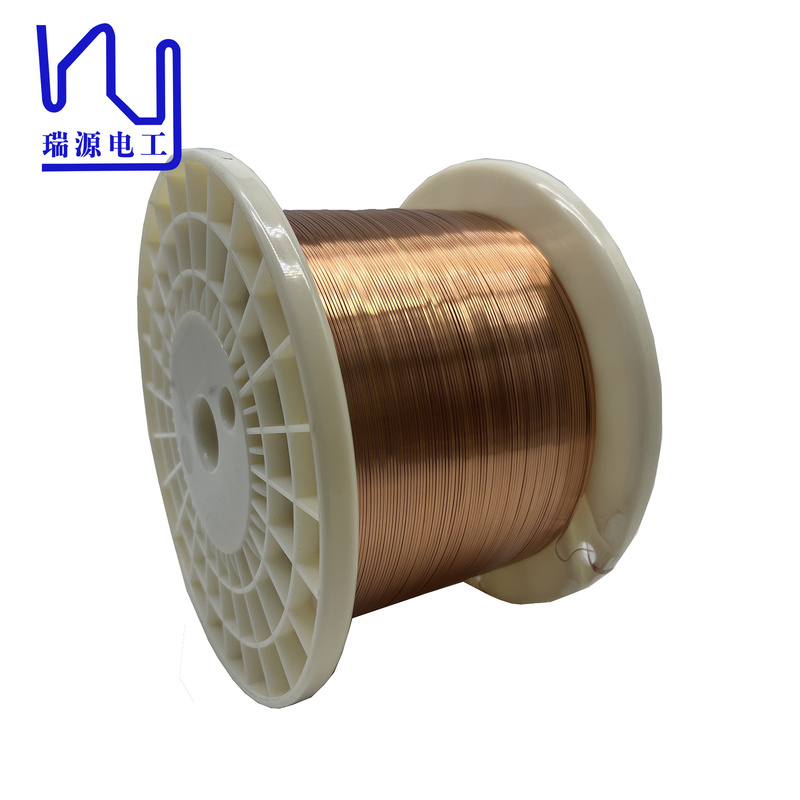

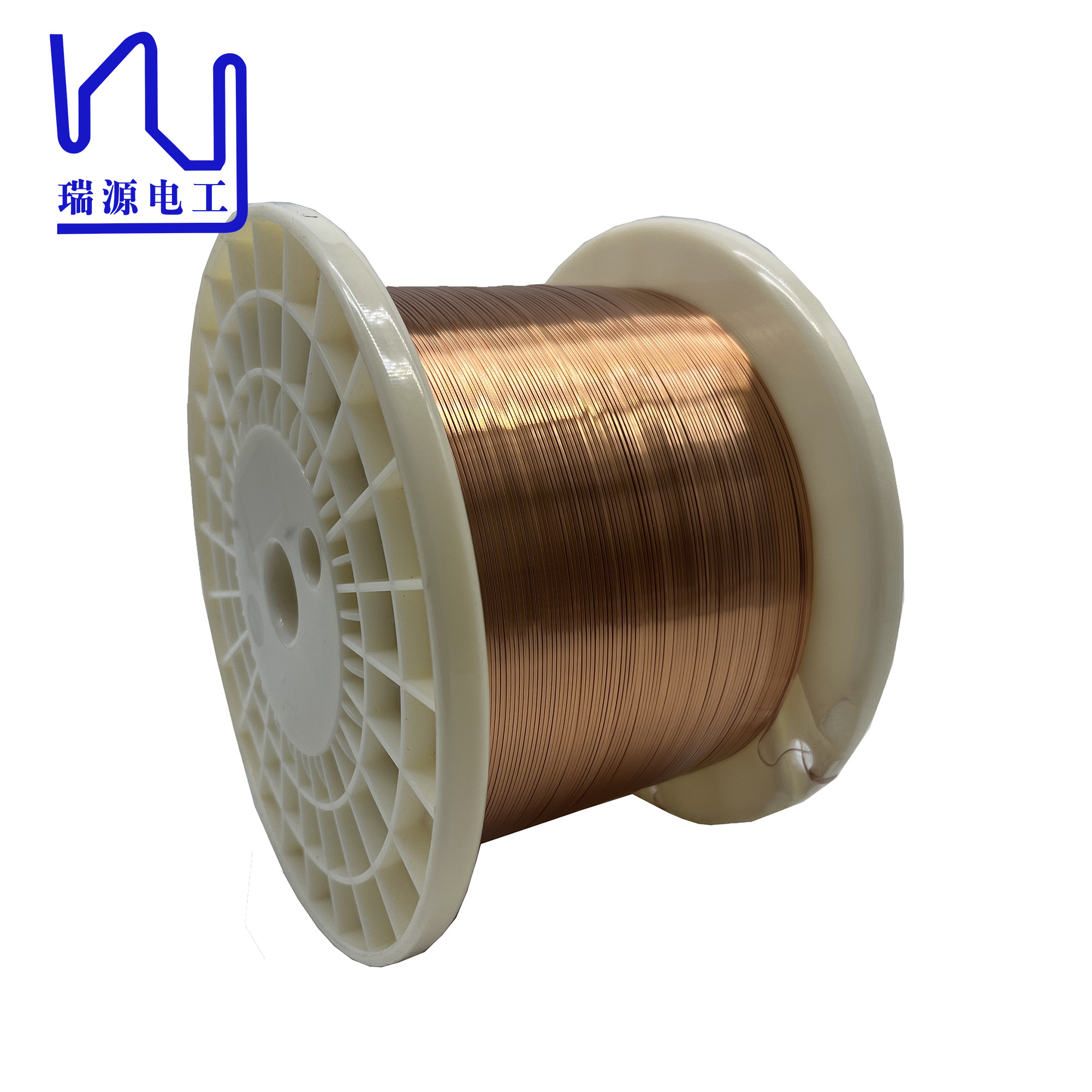

Custom Polyamideimide Enameled Rectangular Flat Copper Wire Square Flat Wire For automotive
In the automotive industry, due to the advantages of this enameled flat wire has been widely used. It is commonly used to manufacture ignition systems, sensors, actuators and other electrical components within vehicles. Temperature resistance and excellent electrical insulation properties make it ideal for these critical automotive systems, ensuring reliable performance even under high temperature and high pressure conditions. In addition, enamelled rectangular wire can be used to produce coils, transformers and inductors for a variety of automotive applications, benefiting from the chemical resistance and mechanical strength provided by the enamel coating.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | Appearance |
soldering temperature |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
410±10℃ |
|
|
SPEC |
Ave | 0.300 | 1.000 | 0.025 | 0.025 | ||||||||
| Max | 0.309 | 1.060 | 0.040 | 0.040 | 0.350 | 1.050 | 3 | 65.730 | |||||
| Min | 0.291 | 0.940 | 0.010 | 0.010 | 0.340 | 1.030 | 0.700 | 30 | |||||
| No. 1 | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.520 |
0 |
62.240 |
34 |
No to be scratched No dirt |
Good |
|
| No. 2 | 2.320 | ||||||||||||
| No. 3 | 1.320 | ||||||||||||
| No. 4 | 2.310 | ||||||||||||
| No. 5 | 1.185 | ||||||||||||
| Ave | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.731 | ||||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||
| Min. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.185 | ||||||
| Max. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 2.320 | ||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.135 | ||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
