| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW 0.30*1.00mm 220C Flat Enamelled Copper Wire For Motor Windings | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.00mm |
| Thickness: | 0.30mm | Conductor Material: | Copper |
| Key Word: | AIW 0.30*1.00mm 220C Flat Enamelled Copper Wire For Motor Windings | ||
| Highlight: | Motor Windings Flat Enamelled Copper Wire,AIW Flat Enamelled Copper Wire,220C Flat Enamelled Copper Wire |
||

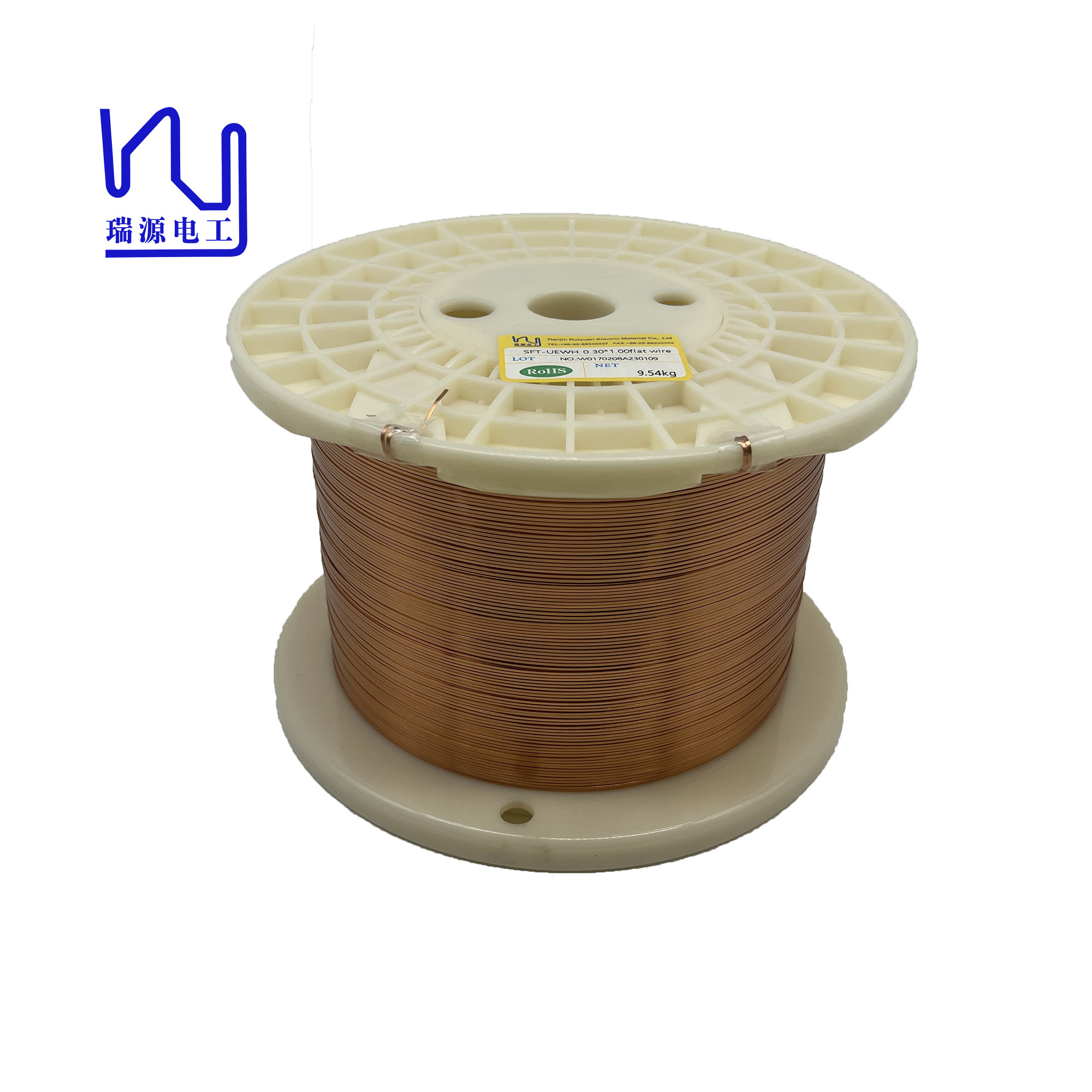

AIW 0.30*1.00mm 220C Flat Enamelled Copper Wire for Motor Windings
The 1mm*0.3mm enameled flat wire has a variety of remarkable properties and is very suitable for automotive industry applications. Its excellent 220-degree temperature resistance ensures that the flat wire can withstand the high operating temperatures commonly found in automotive systems. This makes it ideal for use in engines, exhaust systems and other high-temperature environments within vehicles. In addition, the polyamide-imide paint film has excellent electrical insulation properties, making the enameled flat wire suitable for electrical components and systems in automobiles.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | Appearance |
soldering temperature |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
410±10℃ |
|
|
SPEC |
Ave | 0.300 | 1.000 | 0.025 | 0.025 | ||||||||
| Max | 0.309 | 1.060 | 0.040 | 0.040 | 0.350 | 1.050 | 3 | 65.730 | |||||
| Min | 0.291 | 0.940 | 0.010 | 0.010 | 0.340 | 1.030 | 0.700 | 30 | |||||
| No. 1 | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.520 |
0 |
62.240 |
34 |
No to be scratched No dirt |
Good |
|
| No. 2 | 2.320 | ||||||||||||
| No. 3 | 1.320 | ||||||||||||
| No. 4 | 2.310 | ||||||||||||
| No. 5 | 1.185 | ||||||||||||
| Ave | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.731 | ||||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||
| Min. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.185 | ||||||
| Max. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 2.320 | ||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.135 | ||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
