| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW220 1.0mm*0.3mm Enameled Flat Copper Wire For Windings | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 1.00mm |
| Thickness: | 0.30mm | Conductor Material: | Copper |
| Key Word: | AIW220 1.0mm*0.3mm Enameled Flat Copper Wire For Windings | ||
| Highlight: | 1.0mm enameled flat copper wire,0.3mm enameled flat copper wire,Windings enameled flat copper wire |
||

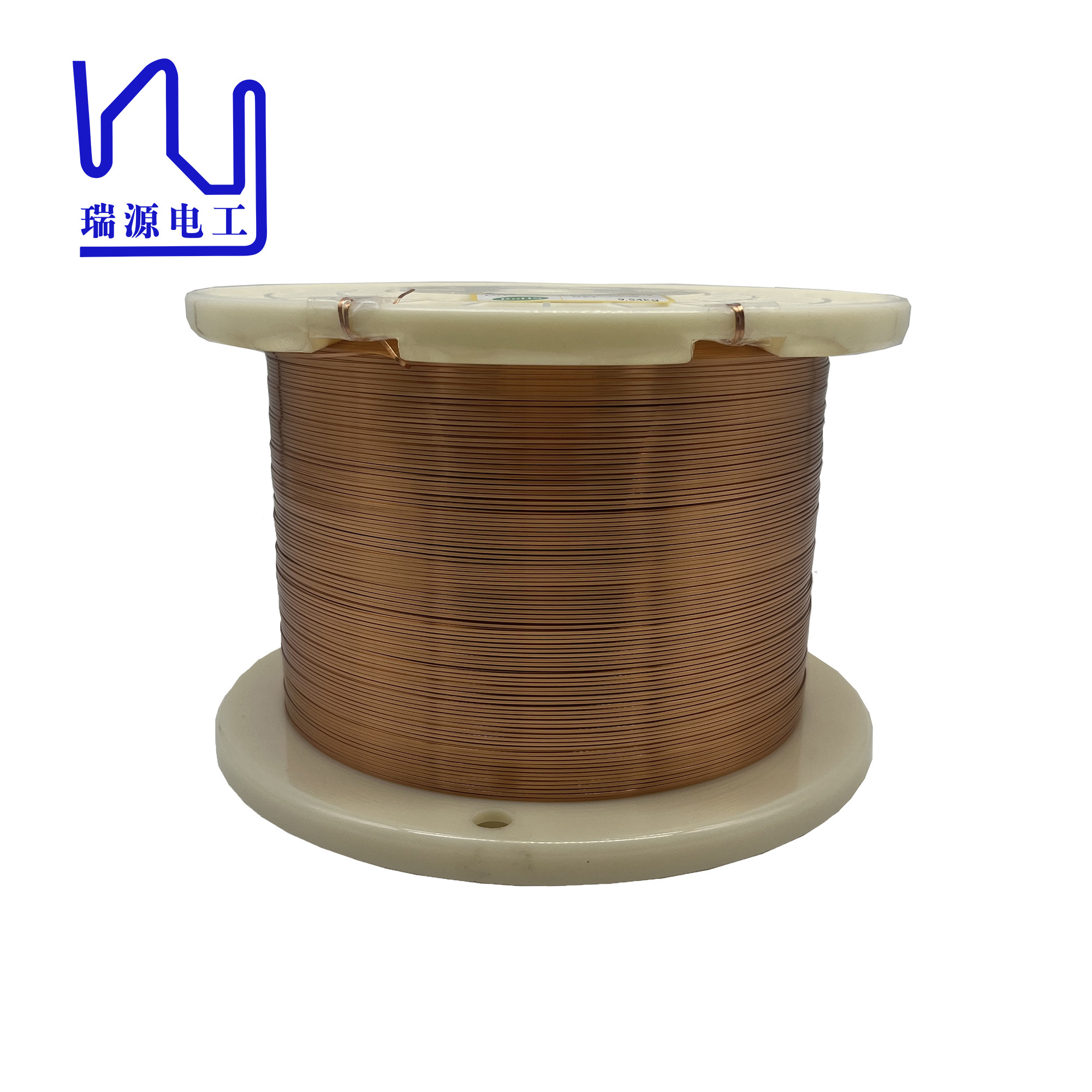

AIW220 1.0mm*0.3mm enameled flat copper wire For windings
1.0mm*0.3mm enameled flat copper wire is a customized flat wire,it is well made, with a width of 1mm and a thickness of 0.3mm. It is coated with a polyamide-imide paint film, giving it excellent temperature resistance up to 220 degrees.this enameled flat wire is that it cannot be directly soldered. The polyamideimide paint film used in this flat wire offers numerous advantages, making it ideal for a variety of automotive industry applications.
|
Item |
conductor dimension |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole | Conductor resistance | Elongation | Appearance |
soldering temperature |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
410±10℃ |
|
|
SPEC |
Ave | 0.300 | 1.000 | 0.025 | 0.025 | ||||||||
| Max | 0.309 | 1.060 | 0.040 | 0.040 | 0.350 | 1.050 | 3 | 65.730 | |||||
| Min | 0.291 | 0.940 | 0.010 | 0.010 | 0.340 | 1.030 | 0.700 | 30 | |||||
| No. 1 | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.520 |
0 |
62.240 |
34 |
No to be scratched No dirt |
Good |
|
| No. 2 | 2.320 | ||||||||||||
| No. 3 | 1.320 | ||||||||||||
| No. 4 | 2.310 | ||||||||||||
| No. 5 | 1.185 | ||||||||||||
| Ave | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.731 | ||||||
| NO.of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||
| Min. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 1.185 | ||||||
| Max. reading | 0.298 | 0.984 | 0.022 | 0.029 | 0.342 | 1.042 | 2.320 | ||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.135 | ||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
