| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.075mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW155 0.075mm Copper Enameled Winding Wire For Micro Devices | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.075mm |
| Conductor Material: | Copper | Key Word: | 2UEW155 0.075mm Copper Enameled Winding Wire For Micro Devices |
| Highlight: | Micro Devices Enameled Copper Wire,Copper Enameled Winding Wire,Copper Enameled Wire 2UEW155 |
||

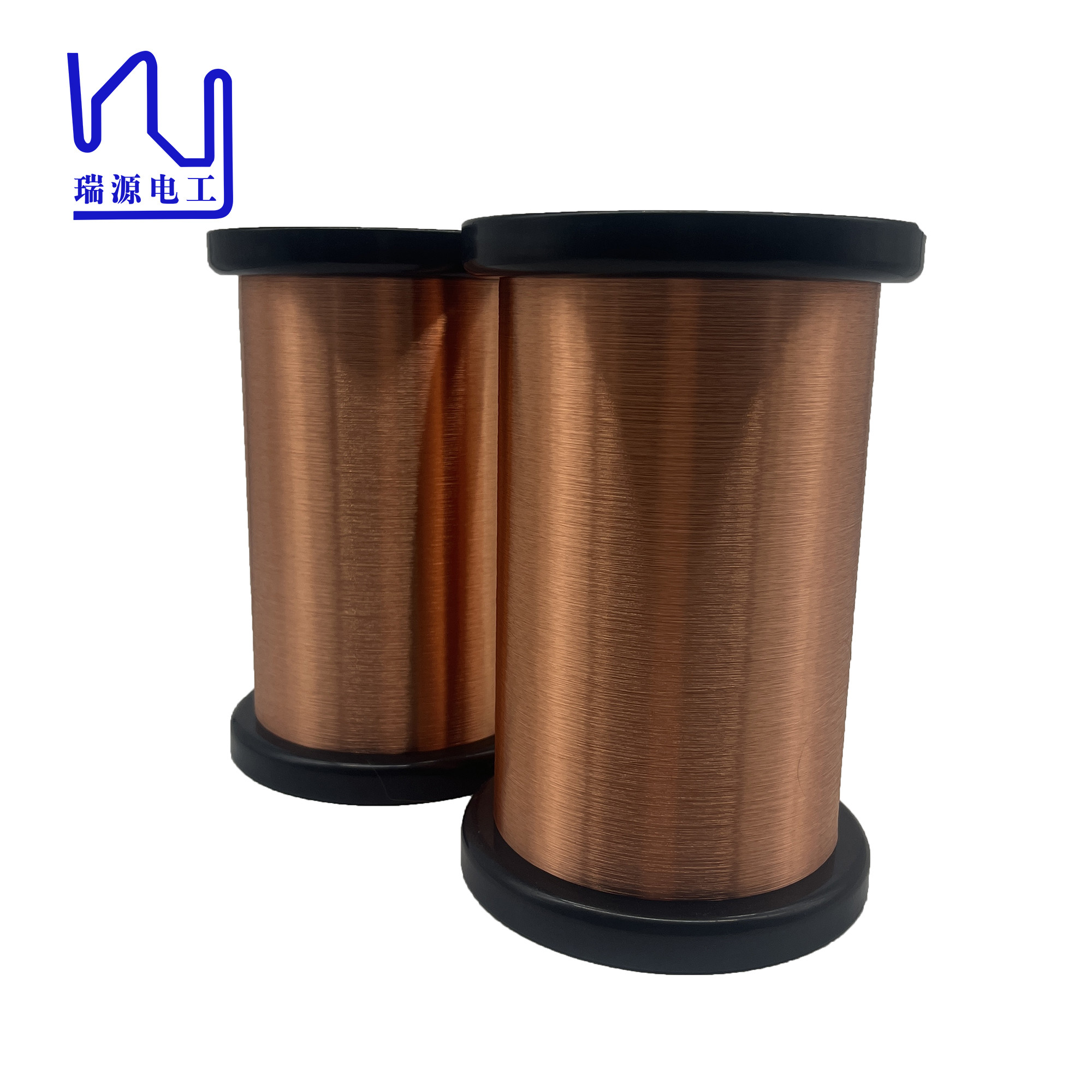

2UEW155 0.075mm copper enameled winding wire for Micro devices
The specialized enameled copper wire is widely used in manufacturing various electronic components due to its excellent electrical conductivity and thermal properties.
This enameled copper wire has a diameter of 0.075 mm and a heat resistance rating of 180 degrees, and is highly sought after for its fine gauge and ability to withstand high temperatures.
|
Test Items |
Requirements |
Test Data |
||
|
1st Sample |
2nd Sample |
3rd Sample |
||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
|
Conductor Diameter |
0.075mm ±0.002mm |
0.075 |
0.075 |
0.075 |
|
Thickness of Insulation |
≥ 0.008 mm |
0.010 |
0.010 |
0.010 |
|
Overall Diameter |
≤ 0.089 mm |
0.085 |
0.085 |
.085 |
|
DC Resistance |
≤ 4.119 Ω/m |
3.891 |
3.891 |
3.892 |
|
Elongation |
≥ 15% |
22.1 |
20.9 |
21.6 |
|
Breakdown Voltage |
≥550 V |
1868 |
2051 |
1946 |
|
Pin Hole |
≤ 5 faults/5m |
0 |
0 |
0 |
|
Adherence |
No cracks visible |
OK |
OK |
OK |
|
Cut-through |
230℃ 2min No breakdown |
OK |
OK |
OK |
|
Heat Shock |
200±5℃/30min No cracks |
OK |
OK |
OK |
|
Solderability |
390± 5℃ 2 Sec No slags |
OK |
OK |
OK |
|
Key word |
2UEW155 0.075mm copper enameled winding wire for Micro devices |
|||
|
Producto name |
2UEW155 0.075mm copper enameled winding wire for Micro devices |
|||
