| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.10mm Flat Enameled Copper Wire For Electric Motor Winding | Thermal Rating: | 2200 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 2.00mm |
| Thickness: | 0.10mm | Conductor Material: | Copper |
| Key Word: | 0.10mm Flat Enameled Copper Wire For Electric Motor Winding | ||
| Highlight: | 0.10mm flat enameled copper wire,flat enameled copper wire motor winding,0.10mm enameled flat copper wire |
||

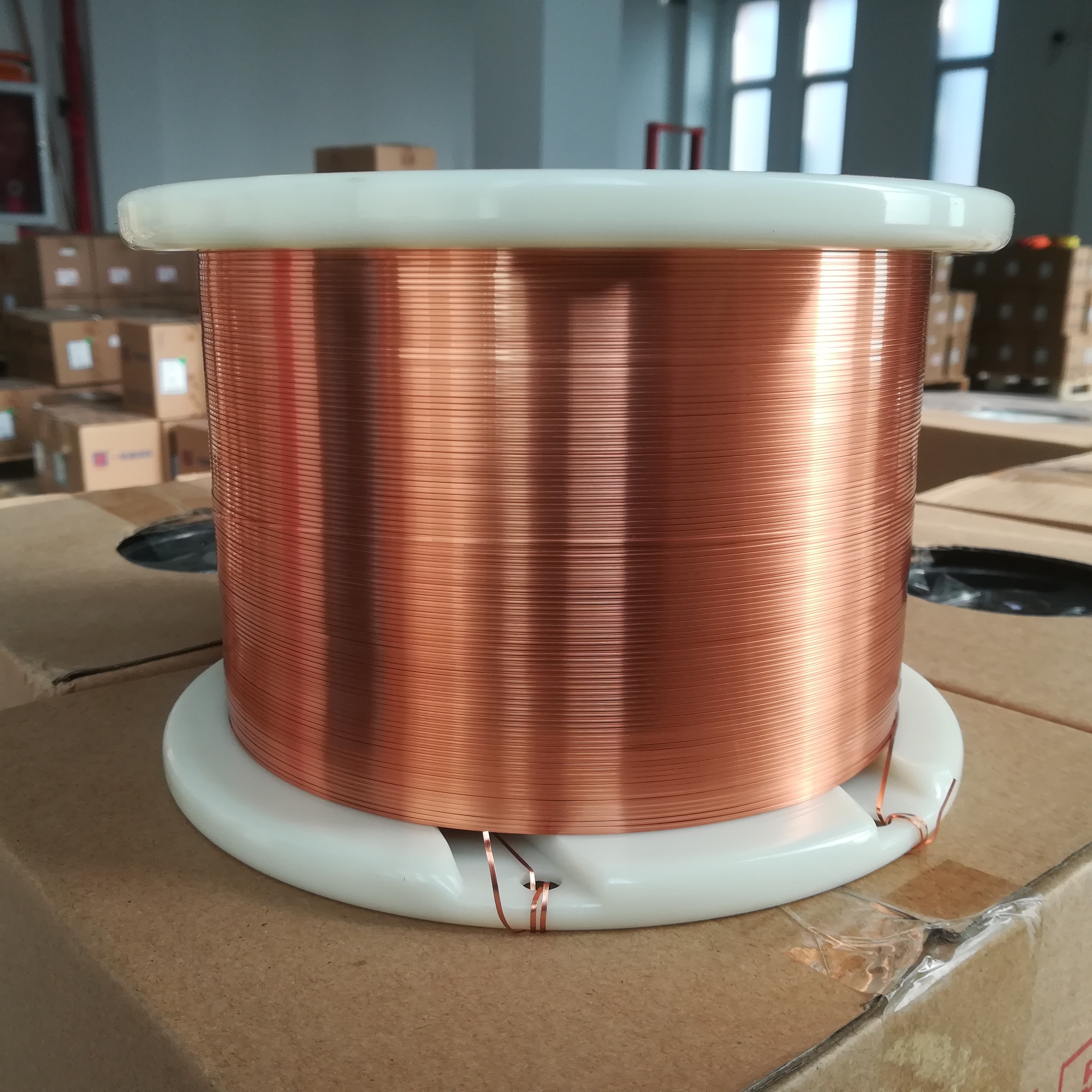

0.10mm Flat Enameled Copper Wire for Electric Motor Winding
Enameled Flat Copper Wire is a testament to precision engineering combined with advanced materials to deliver unparalleled reliability and performance for automotive applications. Its high temperature resistance, customizability and superior electrical performance make it an indispensable solution to meet the ever-changing needs of the automotive industry, contributing to the advancement of vehicle technology and driving experience.
| Key word:0.10mm Flat Enameled Copper Wire for Electric Motor Winding | |||||||||||||||
| Model | SFT-AIW | Date | 2024-1-8 | ||||||||||||
| Size(mm): | 0.100 × 2.000 | Lot | / | ||||||||||||
|
Item |
conductor dimension |
Unilateral insulation laer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm |
mm |
mm |
mm |
mm |
mm |
kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
AVE | 0.100 |
2.000 |
0.025 | 0.025 | ||||||||||
| Max | 0.109 | 2.060 | 0.040 | 0.040 | 0.150 | 2.100 | 3 | 93.240 | |||||||
| Min | 0.091 | 1.940 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 |
0 |
85.634 |
46 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | 1.968 | ||||||||||||||
| No. 3 | 2.250 | ||||||||||||||
| No. 4 | 2.458 | ||||||||||||||
| No. 5 | 1.976 | ||||||||||||||
| Ave | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.266 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 1.968 | ||||||||
| Max. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.712 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
