| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | AIW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Flat Copper Wire Manufacturer Insulated 220 Degree 0.1mmx2.0mm | Thermal Rating: | 2200 |
|---|---|---|---|
| Insulation Material: | AIW | Width: | 2.00mm |
| Thickness: | 0.10mm | Conductor Material: | Copper |
| Key Word: | Flat Copper Wire Manufacturer Insulated 220 Degree 0.1mmx2.0mm | ||
| Highlight: | 220 degree enameled flat copper wire,enameled flat copper wire 0.1mm,220 degree flat enameled copper wire |
||

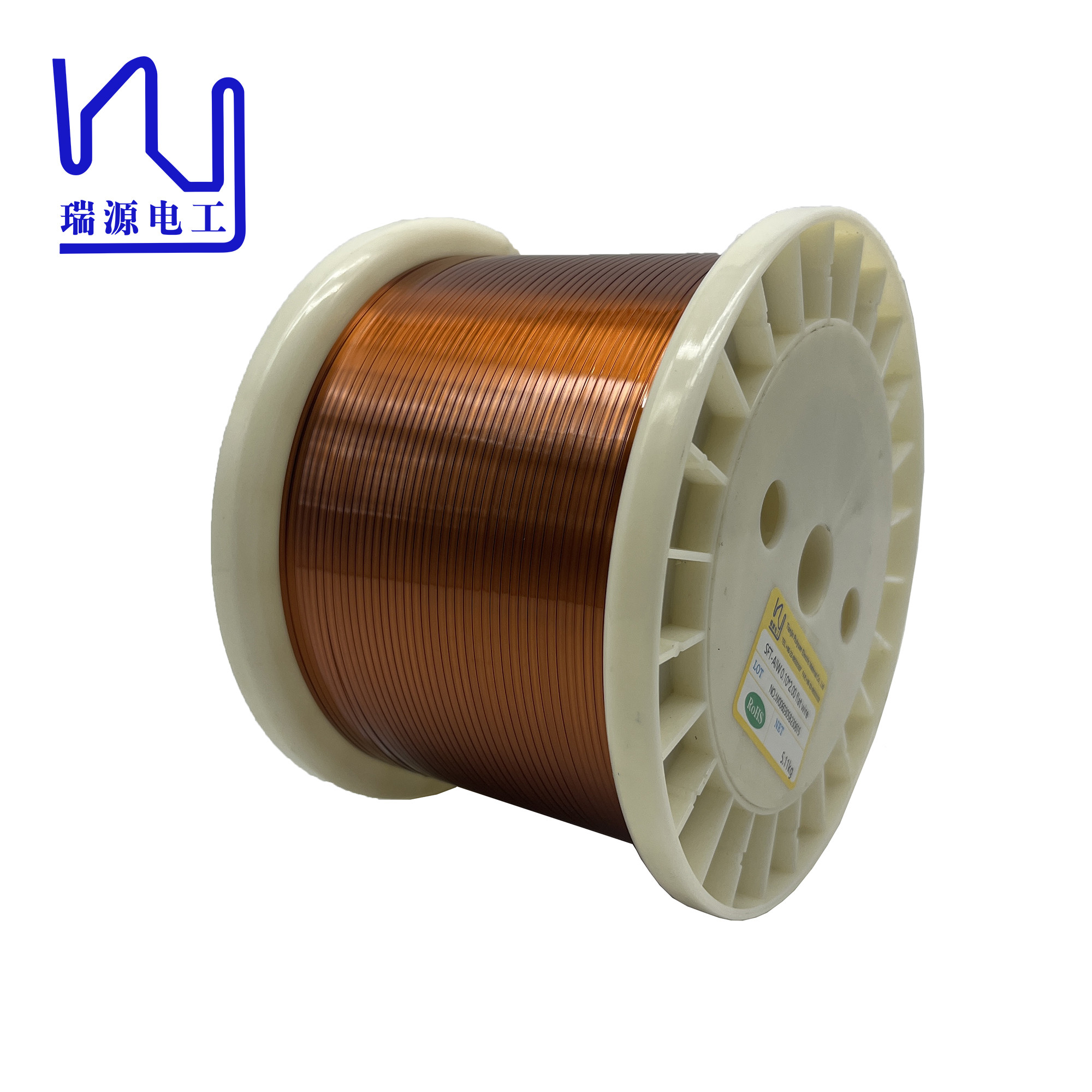

Flat Copper Wire Manufacturer Insulated 220 Degree 0.1mmx2.0mm
As automotive technology continues to advance, demand for specialized wiring solutions such as enameled flat copper wire is expected to grow, further solidifying its position as an important component of automotive electrical systems. Whether enhancing the performance of engine components, supporting advanced safety systems, or improving the efficiency of electronic controls, enameled flat copper wire plays a key role in driving innovation and reliability in the automotive industry.
| Key word:Flat Copper Wire Manufacturer Insulated 220 Degree 0.1mmx2.0mm | |||||||||||||||
| Model | SFT-AIW | Date | 2024-1-8 | ||||||||||||
| Size(mm): | 0.100 × 2.000 | Lot | / | ||||||||||||
|
Item |
conductor dimension |
Unilateral insulation laer thickness |
Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm |
mm |
mm |
mm |
mm |
mm |
kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
AVE | 0.100 |
2.000 |
0.025 | 0.025 | ||||||||||
| Max | 0.109 | 2.060 | 0.040 | 0.040 | 0.150 | 2.100 | 3 | 93.240 | |||||||
| Min | 0.091 | 1.940 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 |
0 |
85.634 |
46 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | 1.968 | ||||||||||||||
| No. 3 | 2.250 | ||||||||||||||
| No. 4 | 2.458 | ||||||||||||||
| No. 5 | 1.976 | ||||||||||||||
| Ave | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.266 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 1.968 | ||||||||
| Max. reading | 0.104 | 1.992 | 0.020 | 0.013 | 0.144 | 2.018 | 2.680 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.712 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
