| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 2.0mm*0.15mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 2.0mm |
| Thickness: | 0.15mm | Conductor Material: | Copper |
| Key Word: | Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm | ||
| Highlight: | flat self bonding copper wire,flat self bonding magnet wire,flat solderable magnet wire |
||

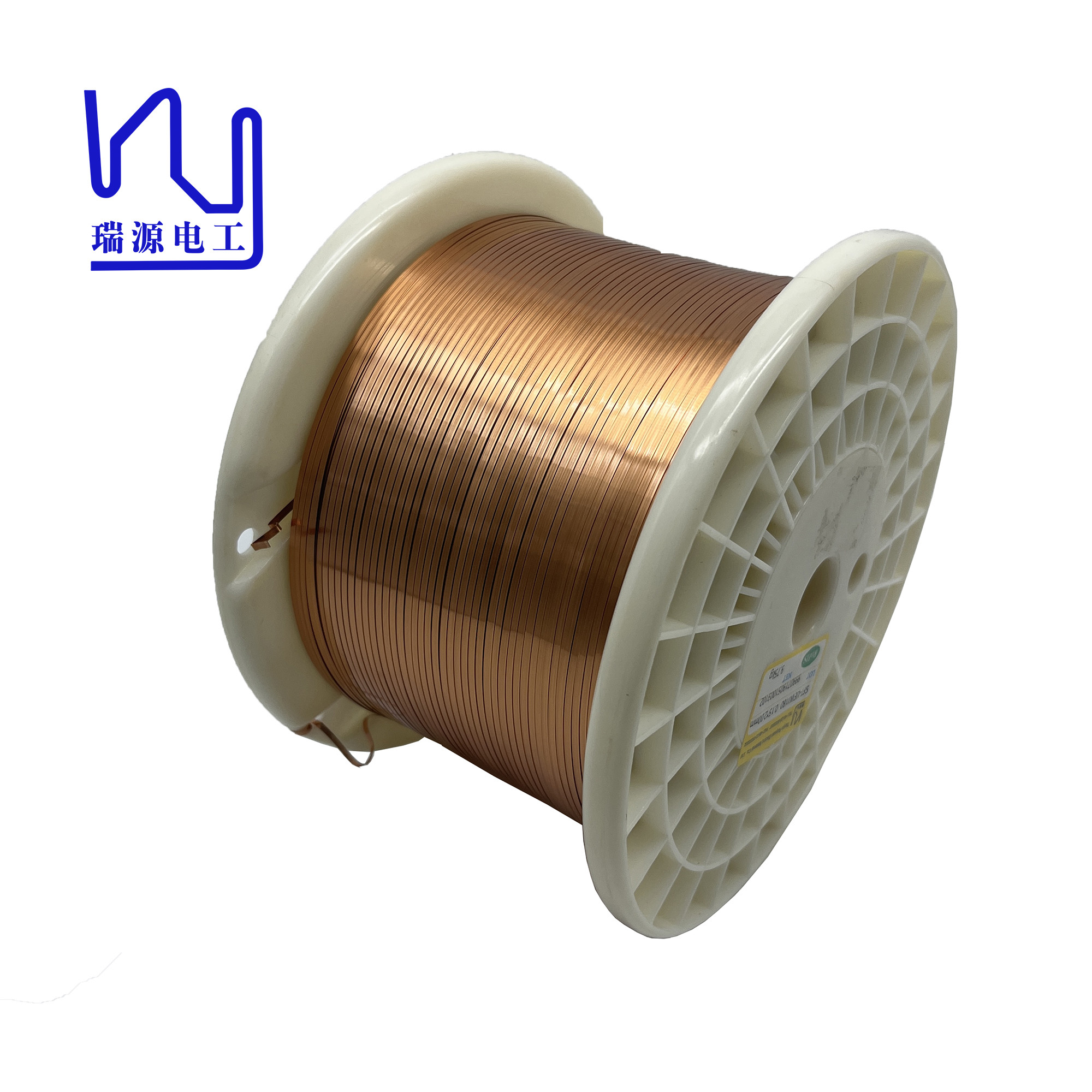

Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm
In the field of electric motors, enameled copper flat wires are widely used in various types of electric motors. Whether it is household appliances or industrial equipment, efficient and reliable electrical connections are required.
Enameled copper flat wires can not only withstand high current loads, but also maintain stable performance in high-temperature environments, thereby improving the efficiency and life of the equipment.
| Product name |
Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm |
|||
|
Key word |
Flat Copper Wire Manufacturer Insulated 220 Grade 0.15mm*2.0mm |
|||
| Characteristics | Standard | Test Result | ||
| Appearance | Smooth Equality | ok | ||
| Conductor Diameter | Width | 2.00 | ±0.060 | 1.998 |
| Thickness | 0.15 | ±0.009 | 0.148 | |
| Min.Thickness of Insulation | Width | 0.010 | 0.041 | |
| Thickness | 0.010 | 0.037 | ||
| Max. Overall Diameter | Width | 2.050 | 2.039 | |
| Thickness | 0.190 | 0.185 | ||
| Pinhole | Max. 3hole/m | 0 | ||
| Elongation | Min. 30 % | 41 | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | Max 64.03 | 49.47 | ||
| Breakdown Voltage | Min. 0.70kv | 1.50 | ||
| Heat shock | No Crack | ok | ||
