| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 2.0mm*0.15mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW220 2.0mm*0.15mm High Temperature Enameled Flat Copper Wire For Motor | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 2.0mm |
| Thickness: | 0.15mm | Conductor Material: | Copper |
| Key Word: | AIW220 2.0mm*0.15mm High Temperature Enameled Flat Copper Wire For Motor | ||
| Highlight: | flat copper wire enamel coating,flat copper wire with enamel,flat enamel coil wire |
||

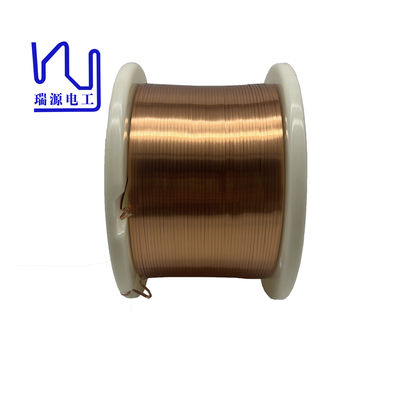

AIW220 2.0mm*0.15mm High Temperature Enameled Flat Copper Wire For Motor
Enameled copper flat wire is a conductive material in which a copper conductor is coated with an insulating varnish and is primarily used in high-temperature electrical applications.
We offer a variety of paint film options, including AIW, UEW, PIW and PEEK wire.
In addition, we also provide self-adhesive flat wires and accept customized services according to customer needs.
| Product name | AIW220 2.0mm*0.15mm High Temperature Enameled Flat Copper Wire For Motor | |||
| Key word | AIW220 2.0mm*0.15mm High Temperature Enameled Flat Copper Wire For Motor | |||
| Characteristics | Standard | Test Result | ||
| Appearance | Smooth Equality | ok | ||
| Conductor Diameter | Width | 2.00 | ±0.060 | 1.998 |
| Thickness | 0.15 | ±0.009 | 0.148 | |
| Min.Thickness of Insulation | Width | 0.010 | 0.041 | |
| Thickness | 0.010 | 0.037 | ||
| Max. Overall Diameter | Width | 2.050 | 2.039 | |
| Thickness | 0.190 | 0.185 | ||
| Pinhole | Max. 3hole/m | 0 | ||
| Elongation | Min. 30 % | 41 | ||
| Flexibility and Adherence | No crack | No crack | ||
| Conductor Resistance (Ω/km at 20℃) | Max 64.03 | 49.47 | ||
| Breakdown Voltage | Min. 0.70kv | 1.50 | ||
| Heat shock | No Crack | ok | ||
