| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.04mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Solderable High Temperature Colored Enameled Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.04mm |
| Conductor Material: | Copper | Key Word: | Solderable High Temperature Colored Enameled Copper Wire |
| Type: | Solderable High Temperature Colored Enameled Copper Wire | ||
| Highlight: | high temperature solderable enamelled wire,0.04mm enamelled wire,high temperature solderable enamelled copper wire |
||

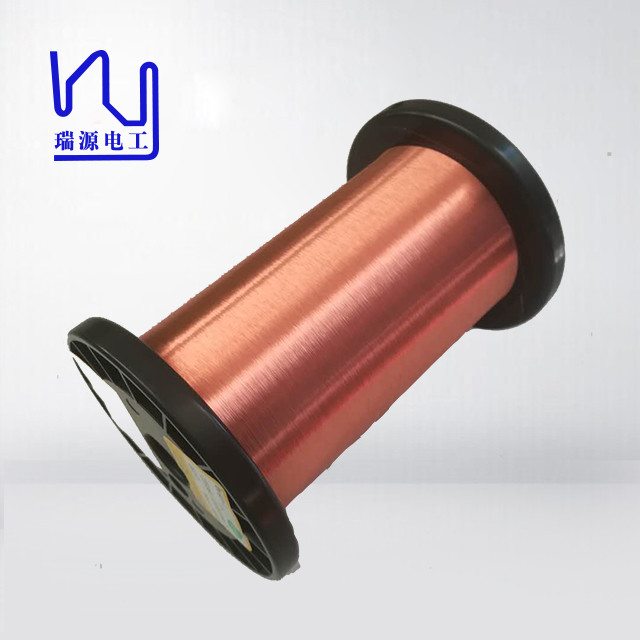

Solderable High Temperature Colored Enameled Copper Wire
Our company also provides other colors of enameled copper wire for customers to choose from to meet the needs of different application scenarios. We will always be committed to providing customers with high-quality enameled copper wire to ensure the stability and reliability of equipment in information transmission.
| Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.040mm ± | 0.001mm | 0.0400 | 0.0400 | 0.0400 |
| Thickness of Insulation | ≥ 0.006 mm | 0.0090 | 0.0100 | 0.0090 | |
| Overall Diameter | ≤ 0.052 mm | 0.0490 | 0.0500 | 0.0490 | |
| DC Resistance | ≤ 14.433 Ω/m | 13.799 | 13.793 | 13.785 | |
| Elongation | ≥ 11% | 18 | 20 | 19 | |
| Breakdown Voltage | ≥325 V | 989 | 1302 | 1176 | |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
|
Name |
Solderable High Temperature Colored Enameled Copper Wire |
|
Key word |
Solderable High Temperature Colored Enameled Copper Wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.04mm |
