| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.0mm*0.25mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Class 220 AIW 0.25mm Self Bonding Enamel Coating Flat Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 1mm |
| Thickness: | 0.25m | Conductor Material: | Copper |
| Key Word: | Class 220 AIW 0.25mm Self Bonding Enamel Coating Flat Copper Wire | ||
| Highlight: | 0.25mm flat wire winding,enamel coating copper flat wire winding,0.25mm flat enameled copper wire |
||

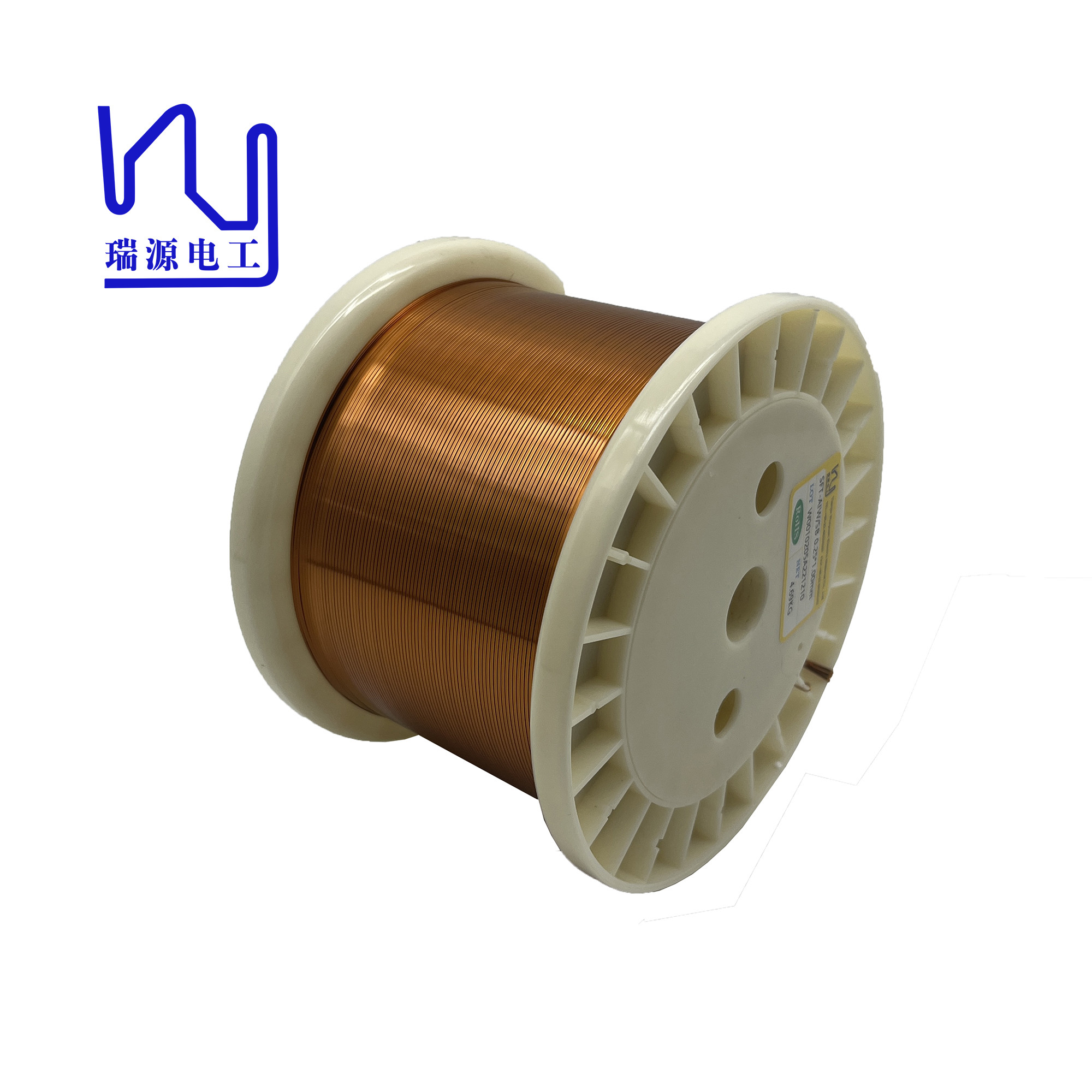

Class 220 AIW 0.25mm Self Bonding Enamel Coating Flat Copper Wire
We provide customized services for self-adhesive enamelled flat wires. We can customize the width and thickness according to the needs of customers, and the customized range is that the ratio of width to thickness is 25 to 1. This personalized customization service can fully meet the needs of different customers and ensure that they can get the most suitable cable products.
If you are new to the wire industry, don't worry, our products are easy to install and use, with good durability and safety. Whether you are using it for the first time or have a certain understanding of wires, self-adhesive enameled flat wires are your best choice.
|
Product name |
Class 220 AIW 0.25mm Self Bonding Enamel Coating Flat Copper Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
Class 220 AIW 0.25mm Self Bonding Enamel Coating Flat Copper Wire |
| 0.250×1.000 | ||||||||||
|
Item |
conductor dimension |
Unilateral self- adhesive/nylon paint thickness |
Unilateral insulation layer thickness |
Overall dimension |
Dielectric breakdown voltage |
Conductor resistance |
||||
| Thickness |
Width |
Thickness | Width | Thickness | Width | |||||
| Unit | mm | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | |
|
SPEC |
Ave | 0.250 | 1.000 | / | 0.025 | 0.025 | ||||
| Max | 0.259 | 1.060 | / | 0.040 | 0.040 | 0.310 | 1.110 | 77.980 | ||
| Min | 0.241 | 0.940 | 0.002 | 0.010 | 0.010 | 0.700 | ||||
| No. 1 | 0.246 | 0.973 | 0.003 | 0.024 | 0.027 | 0.300 | 1.033 | 2.442 |
73.414 |
|
| No. 2 | 0.245 | 0.972 | 0.003 | 0.024 | 0.027 | 0.299 | 1.032 | 2.310 | ||
| No. 3 | / | / | / | / | / | / | / | 2.020 | ||
| No. 4 | / | / | / | / | / | / | / | 2.110 | ||
| No. 5 | / | / | / | / | / | / | / | 2.228 | ||
| No. 6 | / | / | / | / | / | / | / | 1.660 | ||
| No. 7 | / | / | / | / | / | / | / | 1.554 | ||
| No. 8 | / | / | / | / | / | / | / | 1.440 | ||
| No. 9 | / | / | / | / | / | / | / | 1.785 | ||
| No. 10 | / | / | / | / | / | / | / | 1.954 | ||
| Ave | 0.246 | 0.973 | 0.003 | 0.024 | 0.027 | 0.300 | 1.033 | 1.950 | ||
| Number of reading | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 10 | ||
| Min. reading | 0.245 | 0.972 | 0.003 | 0.024 | 0.027 | 0.299 | 1.032 | 1.440 | ||
| Max. reading | 0.246 | 0.973 | 0.003 | 0.024 | 0.027 | 0.300 | 1.033 | 2.442 | ||
| Range | 0.001 | 0.001 | 0.000 | 0.000 | 0.000 | 0.001 | 0.001 | 1.002 | ||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
