| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | High-end Audio 0.1mm*65 Strands Silver Conductor Natural Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | High-end Audio 0.1mm*65 Strands Silver Conductor Natural Silk Covered Litz Wire |
| No. Of Strands: | 65 | ||
| Highlight: | 0.1 mm silk covered wire,65 strands silk covered wire,high end audio litz wire |
||

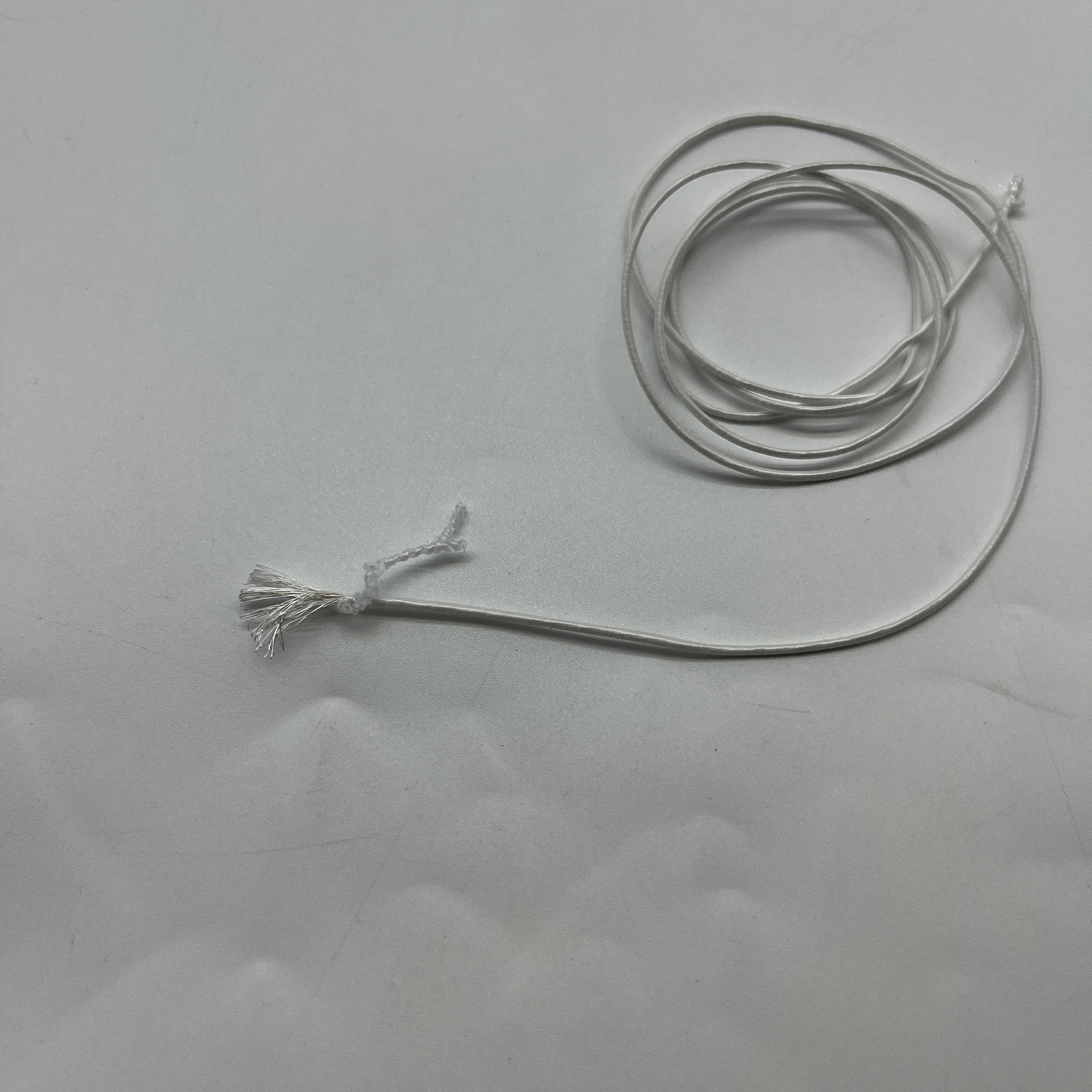

High-end Audio 0.1mm*65 Strands Silver Conductor Natural Silk Covered Litz Wire
Nylon served silver Litz wire has become an indispensable choice in the audio field due to its excellent performance, multi-purpose use and friendly installation method. Its high-purity silver conductors, finely stranded construction, and durable outer coating guarantee excellent audio transmission quality and long-term reliability.
|
Item |
Sample |
|
Outer conductor diameter(mm) |
0.107-0.109 |
|
Conductor diameter(mm) |
0.099-0.10 |
|
Overall dimension(mm) |
Max 1.06- 1.15 |
|
Resisitance Q /m (20℃) |
Max 0.03225 |
|
Breakdown voltage( v) |
Min 2000 |
|
Key word |
High-end Audio 0.1mm*65 Strands Silver Conductor Natural Silk Covered Litz Wire |
