| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC155 Litz Wire 0.1mm /65 Natural Silk /nylon Served Silver Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC155 Litz Wire 0.1mm /65 Natural Silk /nylon Served Silver Litz Wire |
| No. Of Strands: | 65 | ||
| Highlight: | ustc litz wire 0.1mm,nylon served ustc litz wire,0.1mm silver litz wire |
||

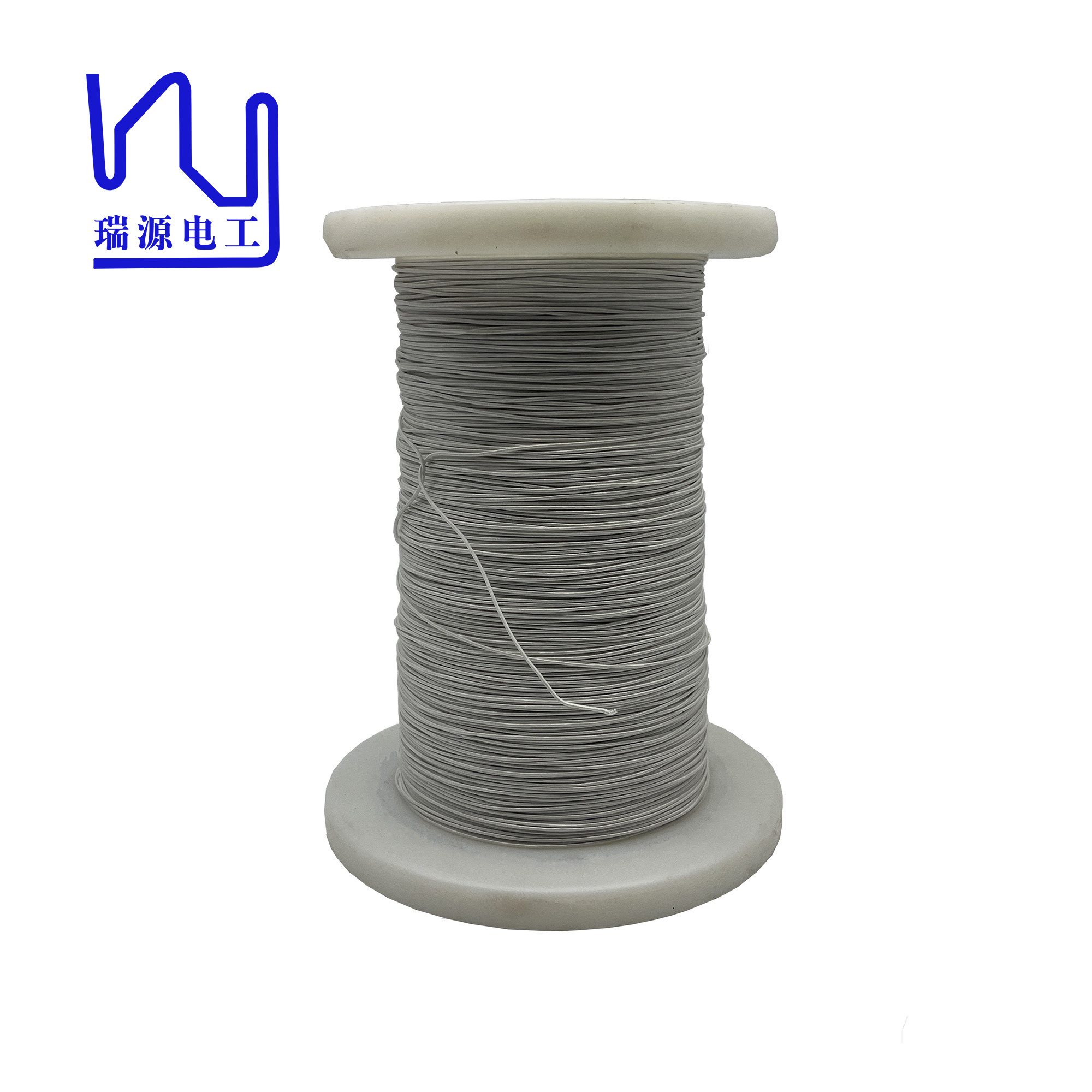

2USTC155 litz wire 0.1mm /65 natural silk /nylon served silver litz wire
For novices, the installation and operation of high-purity silver covered Litz wire is also very simple. It uses a standard connection port, which is convenient and quick to connect with various audio equipment.
Users simply plug it into the corresponding jack on the device and make sure the connection is secure. Therefore, even beginners can easily use the cable and enjoy an excellent audio experience.
|
Item |
Sample |
|
Outer conductor diameter(mm) |
0.107-0.109 |
|
Conductor diameter(mm) |
0.099-0.10 |
|
Overall dimension(mm) |
Max 1.06- 1.15 |
|
Resisitance Q /m (20℃) |
Max 0.03225 |
|
Breakdown voltage( v) |
Min 2000 |
|
Key word |
2USTC155 litz wire 0.1mm /65 natural silk /nylon served silver litz wire |
