| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 4N 5N 6N OCC Silver Conductor Stranded Wire Nylon Served Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 4N 5N 6N OCC Silver Conductor Stranded Wire Nylon Served Litz Wire |
| No. Of Strands: | 65 | ||
| Highlight: | 5n occ silver wire,nylon served litz wire,0.1mm served litz wire |
||

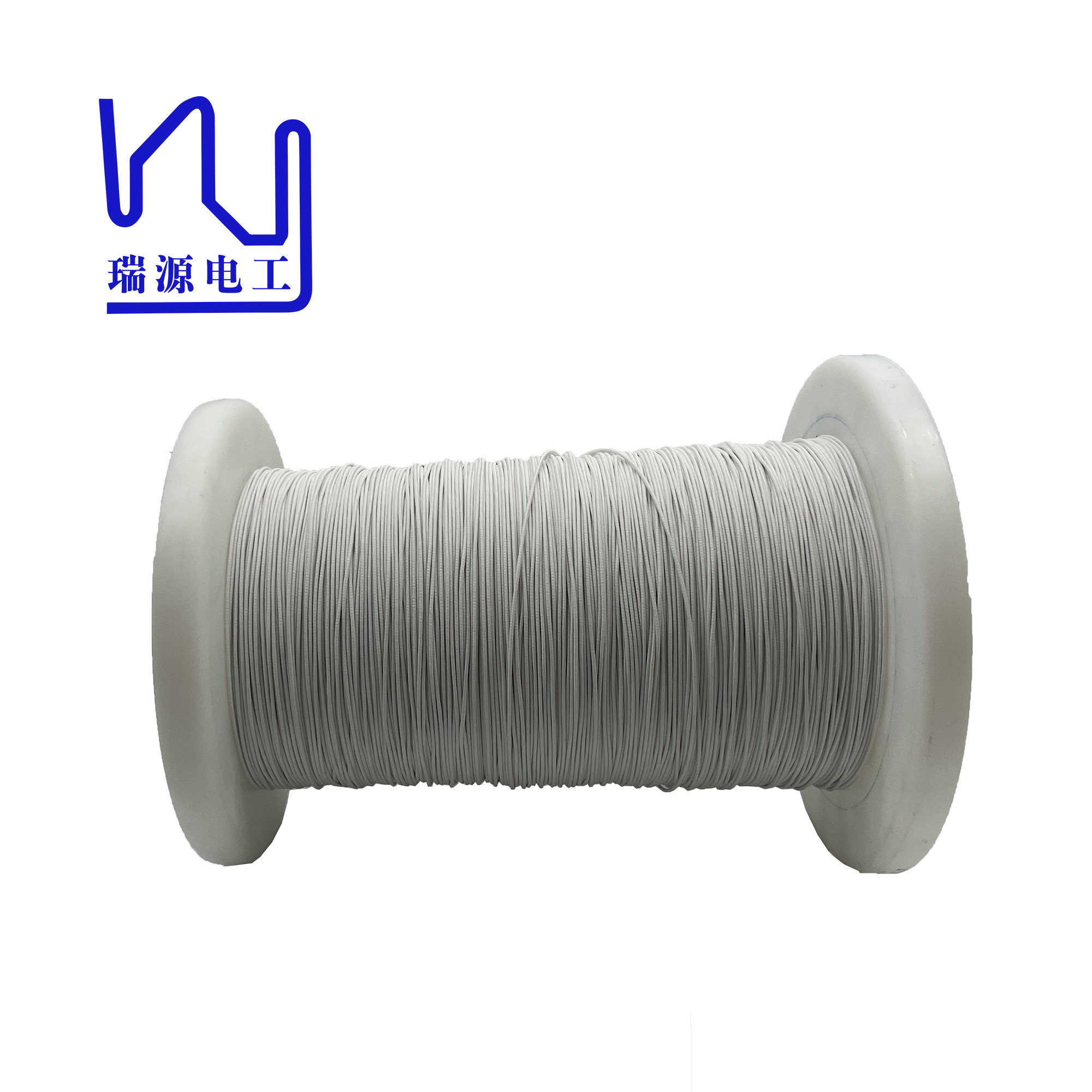

4N 5N 6N OCC Silver Conductor Stranded Wire Nylon Served Litz Wire
The product is covered with nylon yarn, which provides excellent abrasion resistance and tensile resistance, ensuring long-term use and reliability of the wire. This protective layer also effectively prevents the wire from bending, kinking and damage, extending its service life.
|
Item |
Sample |
|
Outer conductor diameter(mm) |
0.107-0.109 |
|
Conductor diameter(mm) |
0.099-0.10 |
|
Overall dimension(mm) |
Max 1.06- 1.15 |
|
Resisitance Q /m (20℃) |
Max 0.03225 |
|
Breakdown voltage( v) |
Min 2000 |
|
Key word |
4N 5N 6N OCC Silver Conductor Stranded Wire Nylon Served Litz Wire |
