| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 38 AWG / 65 Strands Nylon Served Silver Conductor Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom 38 AWG / 65 Strands Nylon Served Silver Conductor Litz Wire |
| No. Of Strands: | 65 | ||
| Highlight: | 38 awg ustc litz wire,nylon served ustc litz wire,38 awg custom litz wire |
||

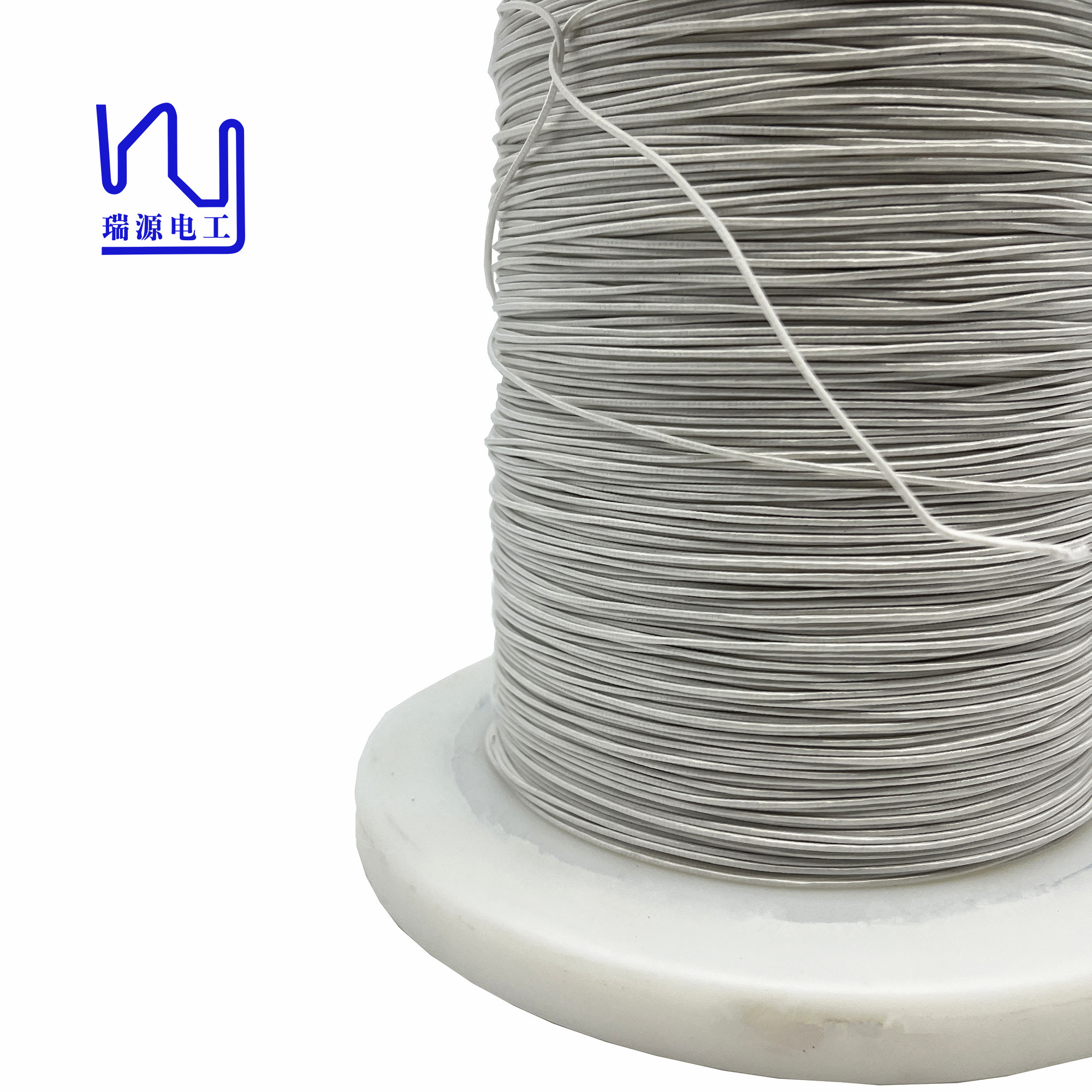

Custom 38 AWG / 65 Strands Nylon Served Silver Conductor Litz Wire
This silver Litz wire is twisted from silver enamelled single wire. The diameter of the silver conductor is 0.1mm (38AWG), and the number of strands is 65, it covered with tough and durable nylon yarn. This unique design and workmanship makes this product excellent in audio transmission.
| Item | Sample |
| Outer conductor diameter(mm) | 0.107-0.109 |
| Conductor diameter(mm) | 0.099-0.10 |
| Overall dimension(mm) | Max 1.06- 1.15 |
| Resisitance Q /m (20℃) | Max 0.03225 |
| Breakdown voltage( v) | Min 2000 |
| Key word | Custom 38 AWG / 65 Strands Nylon Served Silver Conductor Litz Wire |
