| Product Name: | Solderable Class 220 AIW Enameled Rectangular Magnet Copper Wire For Automotive | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.5mm |
| Thickness: | 0.7mm | Conductor Material: | Copper |
| Key Word: | Solderable Class 220 AIW Enameled Rectangular Magnet Copper Wire For Automotive | ||
| Highlight: | solderable rectangular copper wire,class 220 aiw rectangular copper wire,automotive rectangular magnet wire |
||

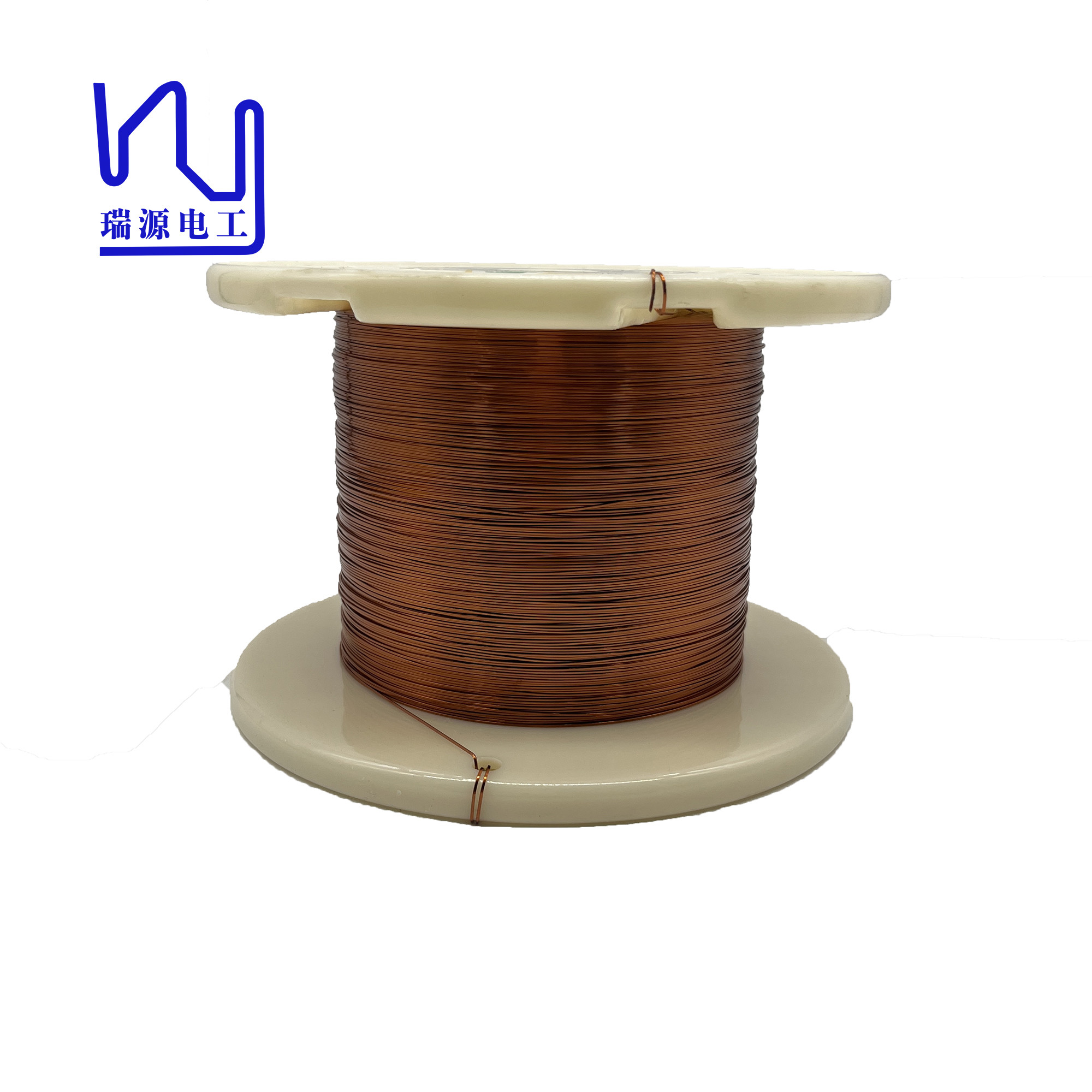

Solderable Class 220 AIW Enameled Rectangular Magnet Copper Wire for Automotive
The thickness of this wire is 0.5mm and the width is 0.7mm. This wire adopts AIW paint film, and there are also UEW paint film and PEW paint film to choose from. Among them, UEW paint film has better wear resistance, and PEW paint film is more suitable for contact with coolant. We can customize the size according to customer requirements, and each customer manufactures independently.
Ultra-fine high-temperature enamelled flat wire can not only be applied to electrical equipment in various high-temperature environments, but also suitable for high-frequency, high-voltage and high-level integrated circuit systems, which greatly broadens its application range.
|
Product name |
Solderable Class 220 AIW Enameled Rectangular Magnet Copper Wire for Automotive |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
Solderable Class 220 AIW Enameled Rectangular Magnet Copper Wire for Automotive |
| 0.500*0.700 AIW rectangular enameled copper wire | |||||||||||||||
|
Item |
conductor dimension | Thickness Of Insulation | Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
0.500 | 0.700 | 0.025 | 0.025 | |||||||||||
| Max | 0.509 | 0.760 | 0.040 | 0.040 | 0.550 | 0.800 | 3 | 62.250 | |||||||
| Min | 0.491 | 0.640 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.310 |
0 |
53.461 |
35 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | |||||||||||||||
| 2.201 | |||||||||||||||
| No. 4 | 2.240 | ||||||||||||||
| No. 5 | 2.056 | ||||||||||||||
| Ave | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.233 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.056 | ||||||||
| Max. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.360 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.304 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
