| Product Name: | Super Thin Flat / Square Enameled Copper Wire For High Frequency Transformers | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.5mm |
| Thickness: | 0.7mm | Conductor Material: | Copper |
| Key Word: | Super Thin Flat / Square Enameled Copper Wire For High Frequency Transformers | ||
| Highlight: | super thin flat enameled copper wire,transformers flat enameled copper wire,super thin enameled flat copper wire |
||

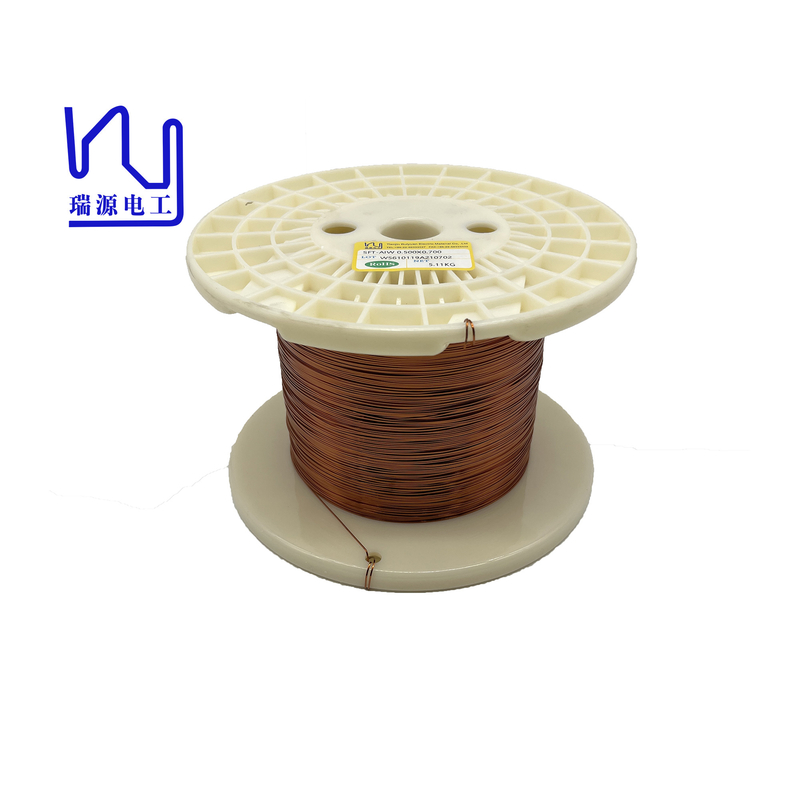

Super Thin flat / Square Enameled Copper Wire For High Frequency Transformers
Due to its flat structure, the enamelled flat wire can make the wiring of the wire more compact and greatly save space. Moreover, because of its small wire core, it is convenient to pass through various difficult spaces, such as automotive electrical systems.
|
Product name |
Super Thin flat / Square Enameled Copper Wire For High Frequency Transformers |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
Super Thin flat / Square Enameled Copper Wire For High Frequency Transformers |
| 0.500*0.700 AIW rectangular enameled copper wire | |||||||||||||||
|
Item |
conductor dimension | Thickness Of Insulation | Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
0.500 | 0.700 | 0.025 | 0.025 | |||||||||||
| Max | 0.509 | 0.760 | 0.040 | 0.040 | 0.550 | 0.800 | 3 | 62.250 | |||||||
| Min | 0.491 | 0.640 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.310 |
0 |
53.461 |
35 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | |||||||||||||||
| 2.201 | |||||||||||||||
| No. 4 | 2.240 | ||||||||||||||
| No. 5 | 2.056 | ||||||||||||||
| Ave | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.233 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.056 | ||||||||
| Max. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.360 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.304 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
