| Product Name: | AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.5mm |
| Thickness: | 0.7mm | Conductor Material: | Copper |
| Key Word: | AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire | ||
| Highlight: | rectangular copper wire size 0.5mm,high temperature rectangular copper wire,size 0.7mm rectangular magnet wire |
||

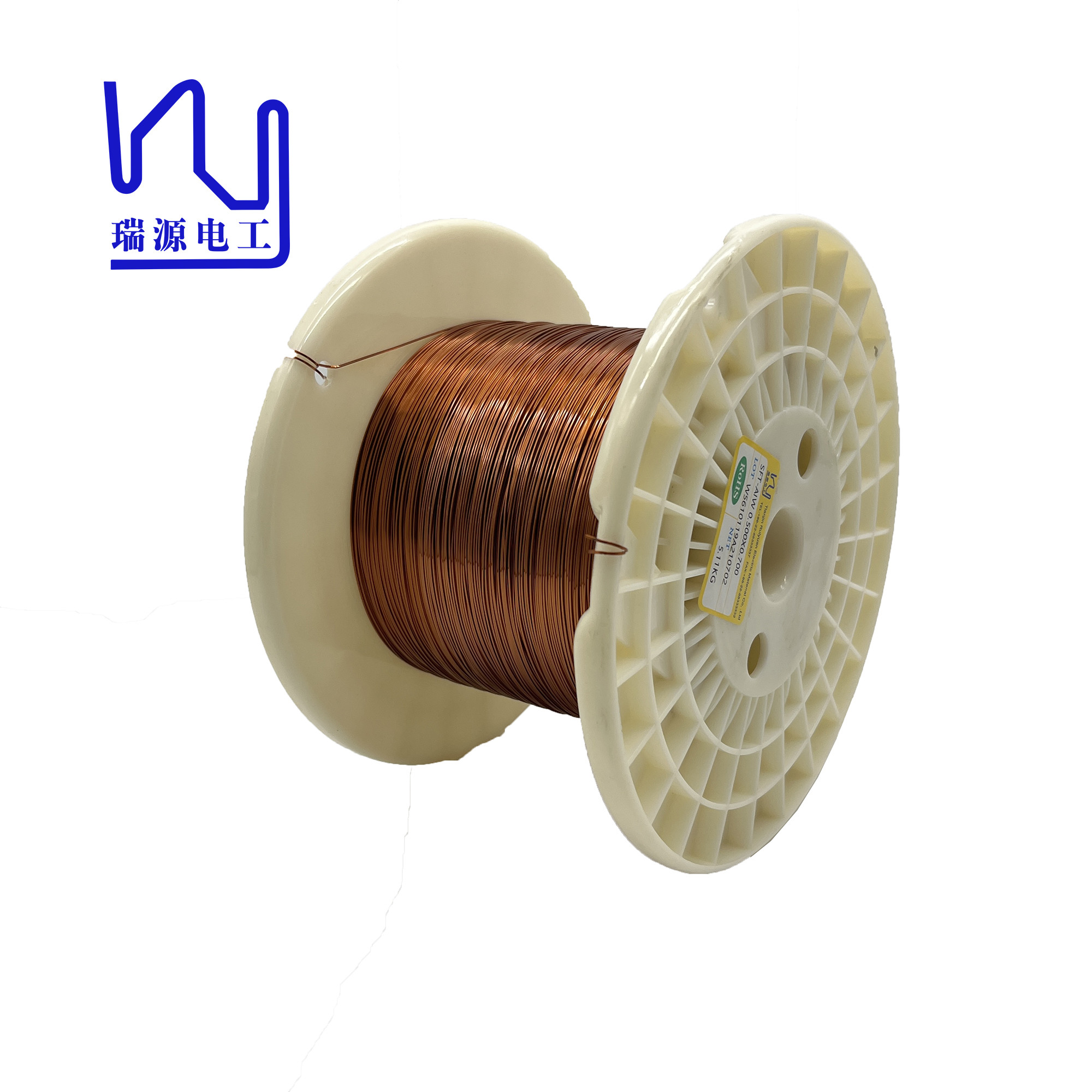

AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire
Ultra-fine high-temperature enamelled flat wire can not only be applied to electrical equipment in various high-temperature environments, but also suitable for high-frequency, high-voltage and high-level integrated circuit systems, which greatly broadens its application range.
|
Product name |
AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
AIW 220 0.5mm 0.7mm High Temperature Rectangular Enameled Copper Winding Wire |
| 0.500*0.700 AIW rectangular enameled copper wire | |||||||||||||||
|
Item |
conductor dimension | Thickness Of Insulation | Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
0.500 | 0.700 | 0.025 | 0.025 | |||||||||||
| Max | 0.509 | 0.760 | 0.040 | 0.040 | 0.550 | 0.800 | 3 | 62.250 | |||||||
| Min | 0.491 | 0.640 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.310 |
0 |
53.461 |
35 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | |||||||||||||||
| 2.201 | |||||||||||||||
| No. 4 | 2.240 | ||||||||||||||
| No. 5 | 2.056 | ||||||||||||||
| Ave | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.233 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.056 | ||||||||
| Max. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.360 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.304 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
