| Product Name: | Super Thin 0.50mm Class 220 Rectangular Enameled Copper Winding Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.5mm |
| Thickness: | 0.7mm | Conductor Material: | Copper |
| Key Word: | Super Thin 0.50mm Class 220 Rectangular Enameled Copper Winding Wire | ||
| Highlight: | super thin rectangular enamelled copper wire,0.50mm rectangular enamelled copper wire,0.50mm rectangular magnet wire |
||

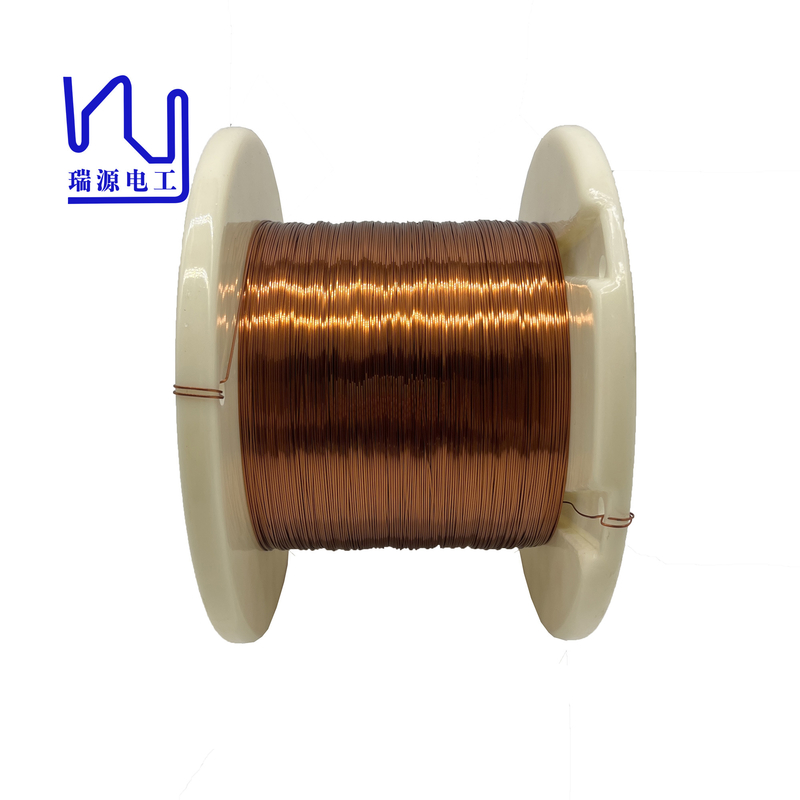

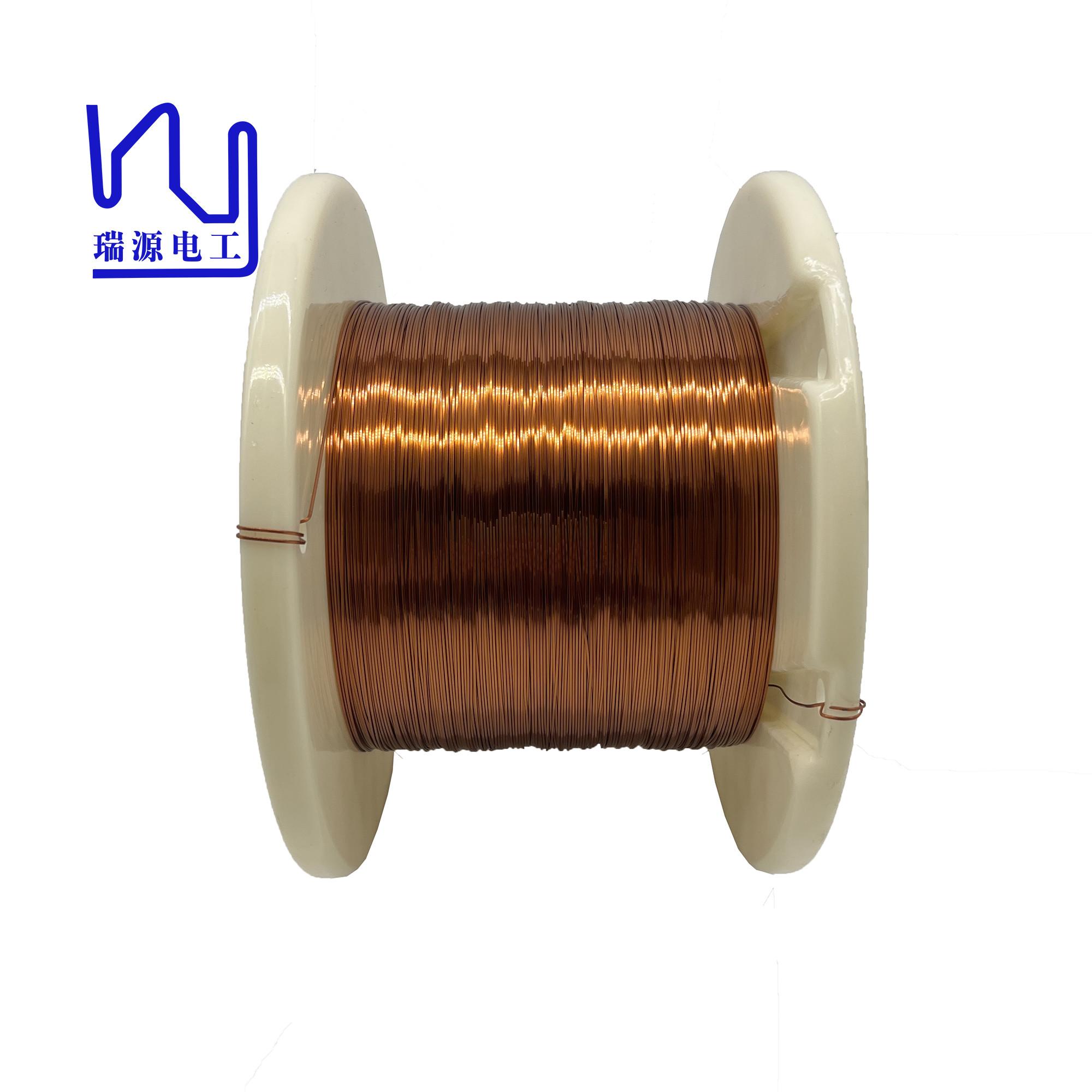

Super thin 0.50mm Class 220 Rectangular Enameled Copper Winding Wire
The thickness of this wire is 0.5mm and the width is 0.7mm. This wire adopts AIW paint film, and there are also UEW paint film and PEW paint film to choose from. Among them, UEW paint film has better wear resistance, and PEW paint film is more suitable for contact with coolant. We can customize the size according to customer requirements, and each customer manufactures independently.
|
Product name |
Super thin 0.50mm Class 220 Rectangular Enameled Copper Winding Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
Super thin 0.50mm Class 220 Rectangular Enameled Copper Winding Wire |
| 0.500*0.700 AIW rectangular enameled copper wire | |||||||||||||||
|
Item |
conductor dimension | Thickness Of Insulation | Overall dimension |
Dielectric breakdown voltage |
Pinhole |
Conductor resistance |
Elongation |
Apperance |
Flexibility |
Adherence |
Thermal shock |
||||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||||||||
| Unit | mm | mm | mm | mm | mm | mm | kv | Pcs/m | Ω/km 20℃ | % |
No to be scratched No dirt |
No crack |
No crack |
No crack |
|
|
SPEC |
0.500 | 0.700 | 0.025 | 0.025 | |||||||||||
| Max | 0.509 | 0.760 | 0.040 | 0.040 | 0.550 | 0.800 | 3 | 62.250 | |||||||
| Min | 0.491 | 0.640 | 0.010 | 0.010 | 0.700 | 30 | |||||||||
| No. 1 | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.310 |
0 |
53.461 |
35 |
No to be scratched No dirt |
Good |
Good |
Good |
|
| No. 2 | |||||||||||||||
| 2.201 | |||||||||||||||
| No. 4 | 2.240 | ||||||||||||||
| No. 5 | 2.056 | ||||||||||||||
| Ave | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.233 | ||||||||
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 | ||||||||
| Min. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.056 | ||||||||
| Max. reading | 0.494 | 0.711 | 0.024 | 0.022 | 0.541 | 0.755 | 2.360 | ||||||||
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.304 | ||||||||
| Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | OK | |
