| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.14mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Super Thin Coil 2UEW Insulated 0.03mm Enameled Copper Wire For Motors Winding | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.14mm |
| Conductor Material: | Copper | Key Word: | Super Thin Coil 2UEW Insulated 0.03mm Enameled Copper Wire For Motors Winding |
| Highlight: | super thin enameled wire,0.03mm enameled wire,ultra fine winding wire of copper |
||

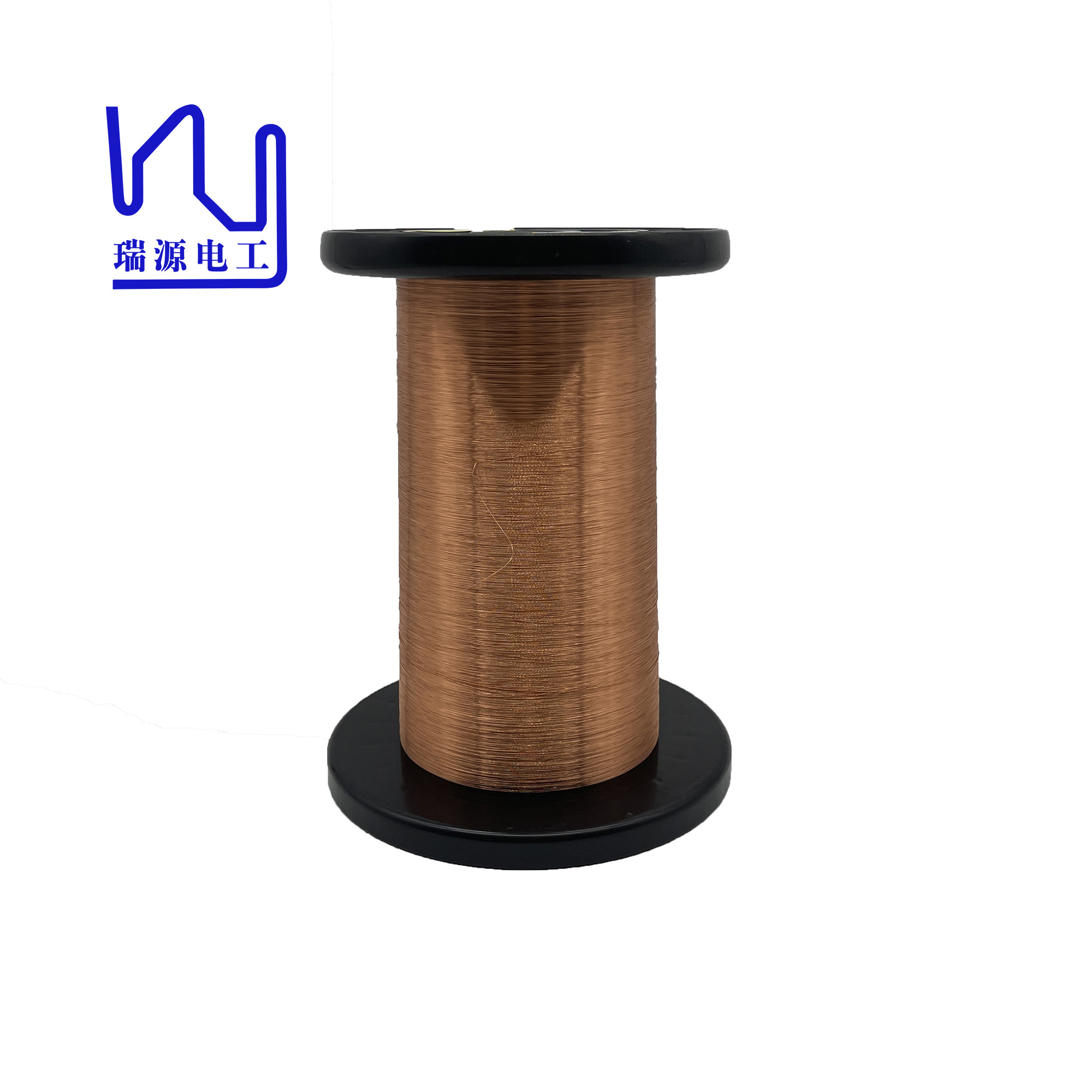

Super Thin Coil 2UEW Insulated 0.03mm Enameled copper Wire for Motors Winding
Due to the characteristics of wear resistance, corrosion resistance and high temperature resistance, enamelled copper wire is also widely used in the fields of motor and electrical appliance manufacturing and maintenance.
| Item | Requirements | Test Data | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Conductor diameter(mm) | 0.140±0.004mm | 0.140 | 0.140 | 0.140 |
| Coating thickness | ≥ 0.011mm | 0.0150 | 0.0160 | 0.0150 |
| Overall dimention(mm) | ≤0.159mm | 0.1550 | 0.1560 | 0.1550 |
| DC Resistance | ≤1.153Ω/m | 1.085 | 1.073 | 1.103 |
| Elongation | ≥19% | 24 | 25 | 24 |
| Breakdown Voltage | ≥1600V | 3163 | 3215 | 3163 |
| Pinhole | ≤5(faults)/5m | 0 | 0 | 0 |
| Cut-through | 200℃ 2min No breakdown | ok | ||
| Heat Shock | 175±5℃/30min No cracks | ok | ||
| Solderability | 390± 5℃ 2 Sec No slags | ok | ||
|
Name |
Super Thin Coil 2UEW Insulated 0.03mm Enameled copper Wire for Motors Winding |
|
Key word |
Enameled copper wire |
|
Insulation |
Enamel |
|
Thermal rating |
155/180 |
|
Diameter |
0.14mm |
|
Type |
Super Thin Coil 2UEW Insulated 0.03mm Enameled copper Wire for Motors Winding |
