| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.14mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.14mm Polyurethane 155 / 180 Super Thin Solderable Magnet Wire Enamel Insulated | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.14mm |
| Conductor Material: | Copper | Key Word: | 0.14mm Polyurethane 155 / 180 Super Thin Solderable Magnet Wire Enamel Insulated |
| Highlight: | 0.14mm solderable magnet wire,polyurethane solderable magnet wire,ultra fine enameled copper round wire |
||

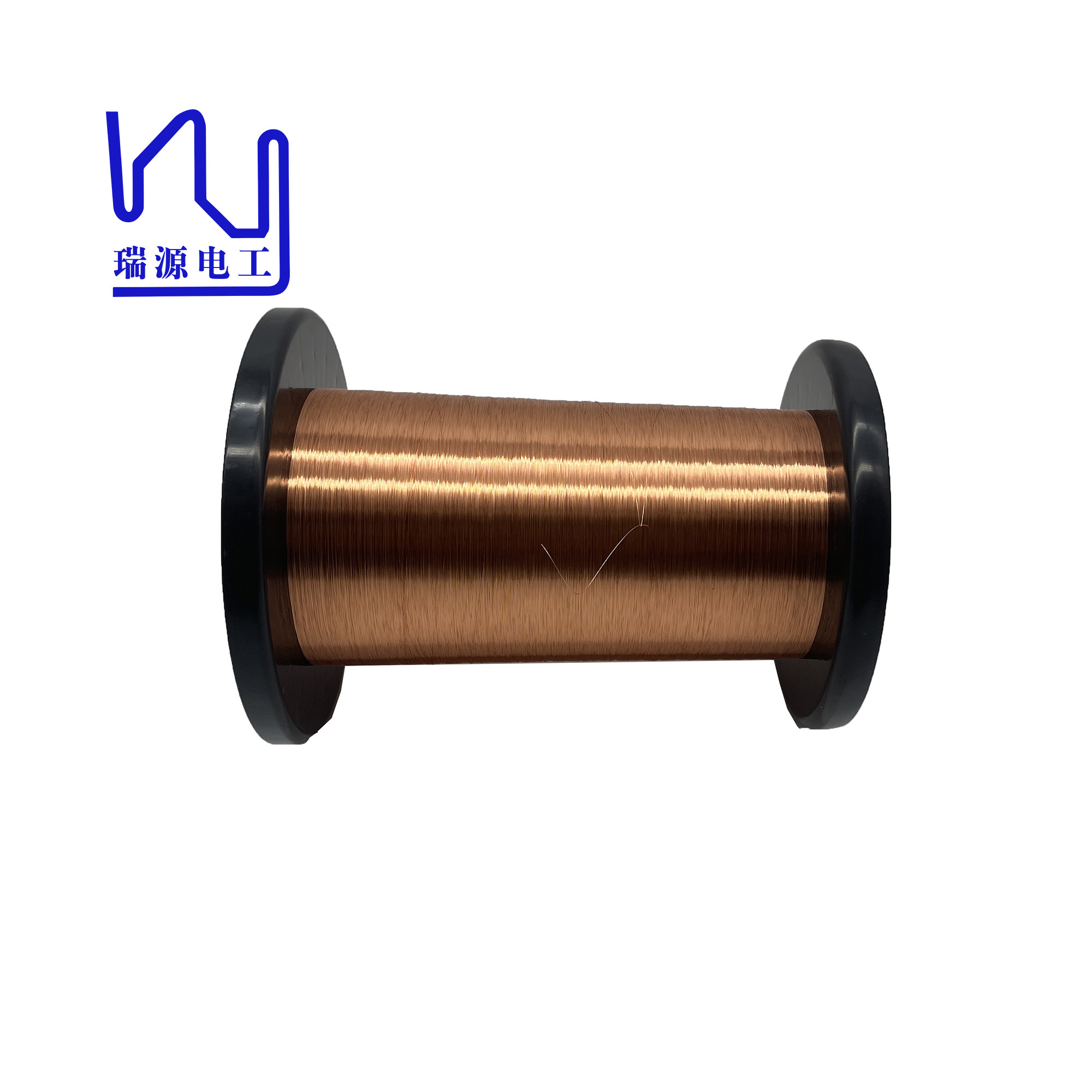

0.14mm Polyurethane 155 / 180 Super Thin Solderable Magnet Wire Enamel Insulated
The enamelled copper wire is coated with polyurethane, which can ensure that its surface is smooth, not easy to be damaged by friction, and its electrical performance is also very stable. In addition, the enamelled copper wire can also be directly welded, making it more convenient and quick.
| Item | Requirements | Test Data | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Conductor diameter(mm) | 0.140±0.004mm | 0.140 | 0.140 | 0.140 |
| Coating thickness | ≥ 0.011mm | 0.0150 | 0.0160 | 0.0150 |
| Overall dimention(mm) | ≤0.159mm | 0.1550 | 0.1560 | 0.1550 |
| DC Resistance | ≤1.153Ω/m | 1.085 | 1.073 | 1.103 |
| Elongation | ≥19% | 24 | 25 | 24 |
| Breakdown Voltage | ≥1600V | 3163 | 3215 | 3163 |
| Pinhole | ≤5(faults)/5m | 0 | 0 | 0 |
| Cut-through | 200℃ 2min No breakdown | ok | ||
| Heat Shock | 175±5℃/30min No cracks | ok | ||
| Solderability | 390± 5℃ 2 Sec No slags | ok | ||
|
Name |
0.14mm Polyurethane 155 / 180 Super Thin Solderable Magnet Wire Enamel Insulated |
|
Key word |
Enameled copper wire |
|
Insulation |
Enamel |
|
Thermal rating |
155/180 |
|
Diameter |
0.14mm |
|
Type |
0.14mm Polyurethane 155 / 180 Super Thin Solderable Magnet Wire Enamel Insulated |
