| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.14mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW 3UEW 0.1mm 0.12mm 0.14mm Round Enameled Copper Winding Wire | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.14mm |
| Conductor Material: | Copper | Key Word: | 2UEW 3UEW 0.1mm 0.12mm 0.14mm Round Enameled Copper Winding Wire |
| Highlight: | 3uew enameled copper wire,0.1mm enameled copper wire,ultra fine copper winding wires |
||

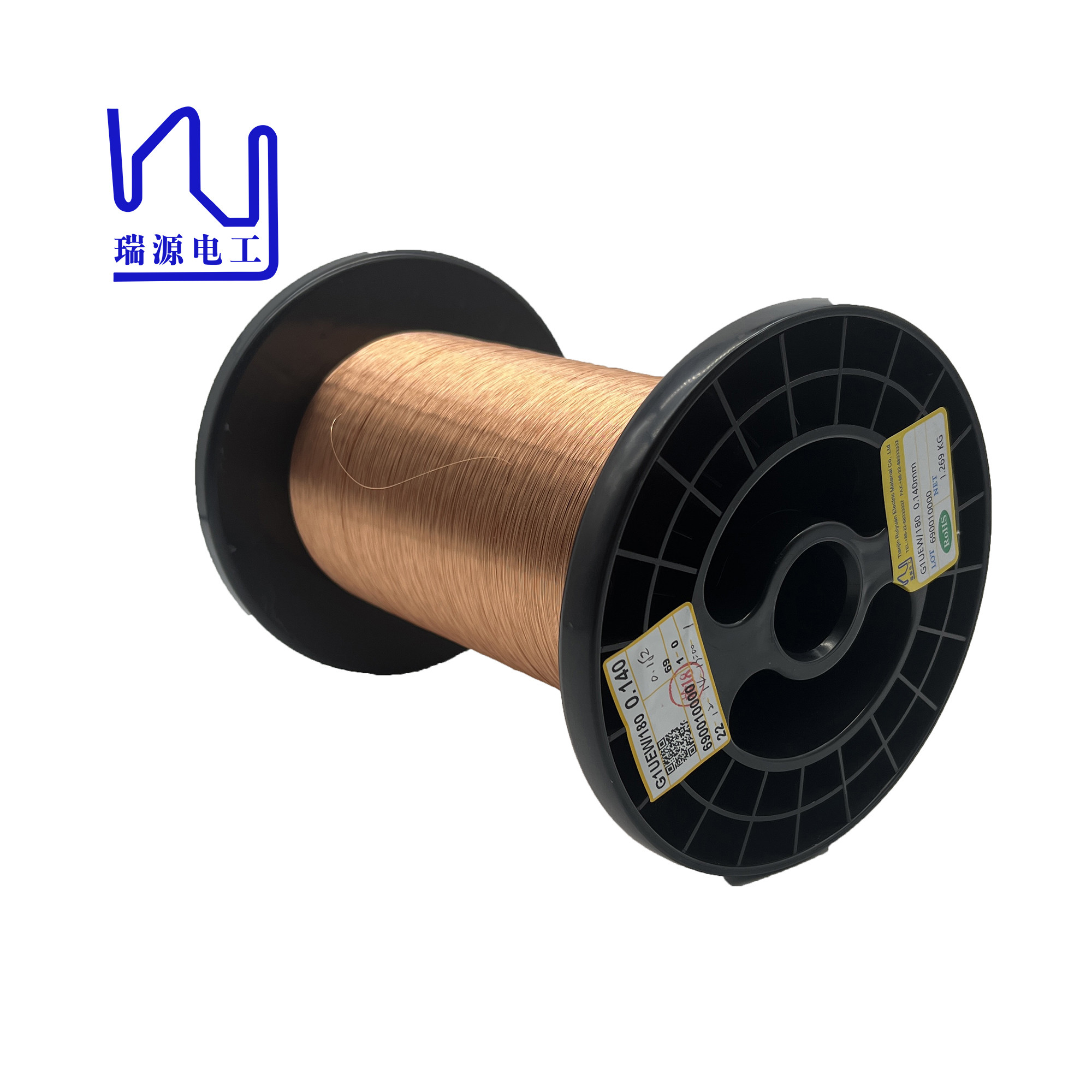

2UEW 3UEW 0.1mm 0.12mm 0.14mm round enameled copper winding wire
Advantage: The diameter of each single wire of the enameled copper wire is 0.14mm, which is very thin and soft, and can well adapt to various complex bending or deformation configurations. In addition, the enamelled copper wire also has good corrosion resistance and high temperature resistance, and the single wire temperature resistance grade is 180 degrees, which is suitable for various high temperature environments.
| Item | Requirements | Test Data | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Conductor diameter(mm) | 0.140±0.004mm | 0.140 | 0.140 | 0.140 |
| Coating thickness | ≥ 0.011mm | 0.0150 | 0.0160 | 0.0150 |
| Overall dimention(mm) | ≤0.159mm | 0.1550 | 0.1560 | 0.1550 |
| DC Resistance | ≤1.153Ω/m | 1.085 | 1.073 | 1.103 |
| Elongation | ≥19% | 24 | 25 | 24 |
| Breakdown Voltage | ≥1600V | 3163 | 3215 | 3163 |
| Pinhole | ≤5(faults)/5m | 0 | 0 | 0 |
| Cut-through | 200℃ 2min No breakdown | ok | ||
| Heat Shock | 175±5℃/30min No cracks | ok | ||
| Solderability | 390± 5℃ 2 Sec No slags | ok | ||
|
Name |
2UEW 3UEW 0.1mm 0.12mm 0.14mm round enameled copper winding wire |
|
Key word |
Enameled copper wire |
|
Insulation |
Enamel |
|
Thermal rating |
155/180 |
|
Diameter |
0.14mm |
|
Type |
2UEW 3UEW 0.1mm 0.12mm 0.14mm round enameled copper winding wire |
