| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.11mm*0.26mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.02 - 1.8mm Square Copper Wire , Enamelled Rectangular Magnet Wire For Smart Phones | Thermal Rating: | 180/220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.11mm |
| Thickness: | 0.26mm | Conductor Material: | Copper |
| Key Word: | 0.02 - 1.8mm Square Copper Wire , Enamelled Rectangular Magnet Wire For Smart Phones | ||
| Highlight: | 0.02mm rectangular copper wire,smart phones rectangular copper wire,1.8mm enameled wire |
||

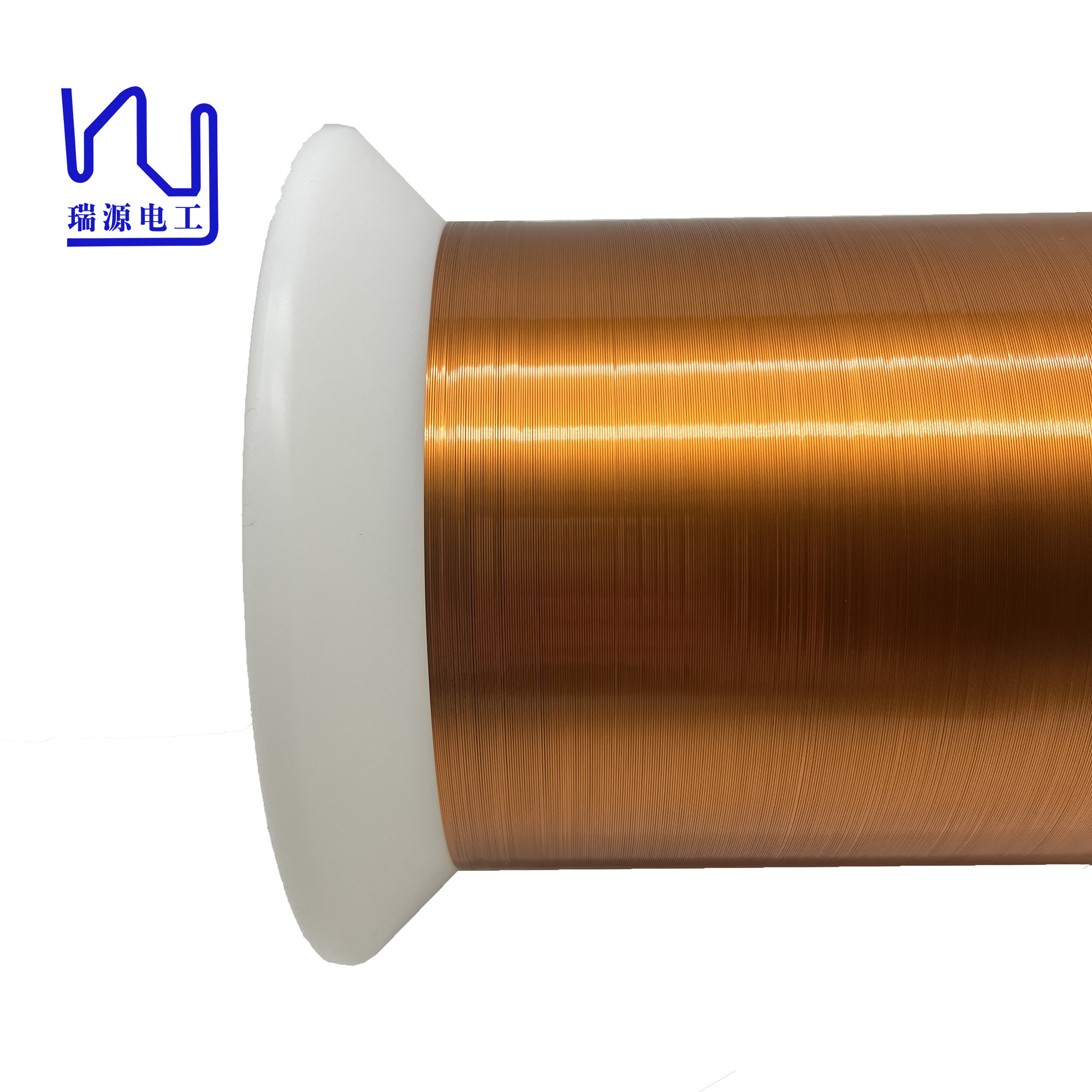

0.02 - 1.8mm Square Copper Wire , Enamelled Rectangular Magnet Wire For Smart Phones
As an important wire material, flat copper enameled wire is widely used in many fields such as electronic appliances, communications, air conditioners, and electric motors. Our high-quality flat copper enameled wires and their self-adhesive versions are widely used in audio production, electric motor production, communication systems and circuit systems.
| Size(mm) | Conductor Dimension(mm) | Thickness of single insulation(mm) | Bonding layer of single insulation(mm) | Overall dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) | Pinhole(pcs/m) | Elongation | Bonding strength |
|||||||||||
| Width | Thickness | |||||||||||||||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | Width | Thickness | Min | Normal | Max | Min | Normal | Max | Min | Max | N/MM | ||||
| 0.11*0.26 | 0.260 | ±0.02 | 0.110 | ±0.004 | 0.005±0.015 | 0.0045±0.001 | 0.0025±0.001 | 0.0025±0.001 | 0.255 | 0.275 | 0.295 | 0.120 | 0.124 | 0.128 | 591.810 | 748.63 | 0.5 Min | 1Max. | 15 Min. | 0.29 |
|
Product name |
0.02 - 1.8mm Square Copper Wire , Enamelled Rectangular Magnet Wire For Smart Phones |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
0.02 - 1.8mm Square Copper Wire , Enamelled Rectangular Magnet Wire For Smart Phones |
