| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.11mm*0.26mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Class 220 Self Bonding 0.11mm 0.2mm Rectangular Enameled Copper Wire | Thermal Rating: | 180/220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.11mm |
| Thickness: | 0.26mm | Conductor Material: | Copper |
| Key Word: | Class 220 Self Bonding 0.11mm 0.2mm Rectangular Enameled Copper Wire | ||
| Highlight: | self bonding rectangular enamelled copper wire,0.11mm rectangular enamelled copper wire,0.2mm rectangular copper wire |
||

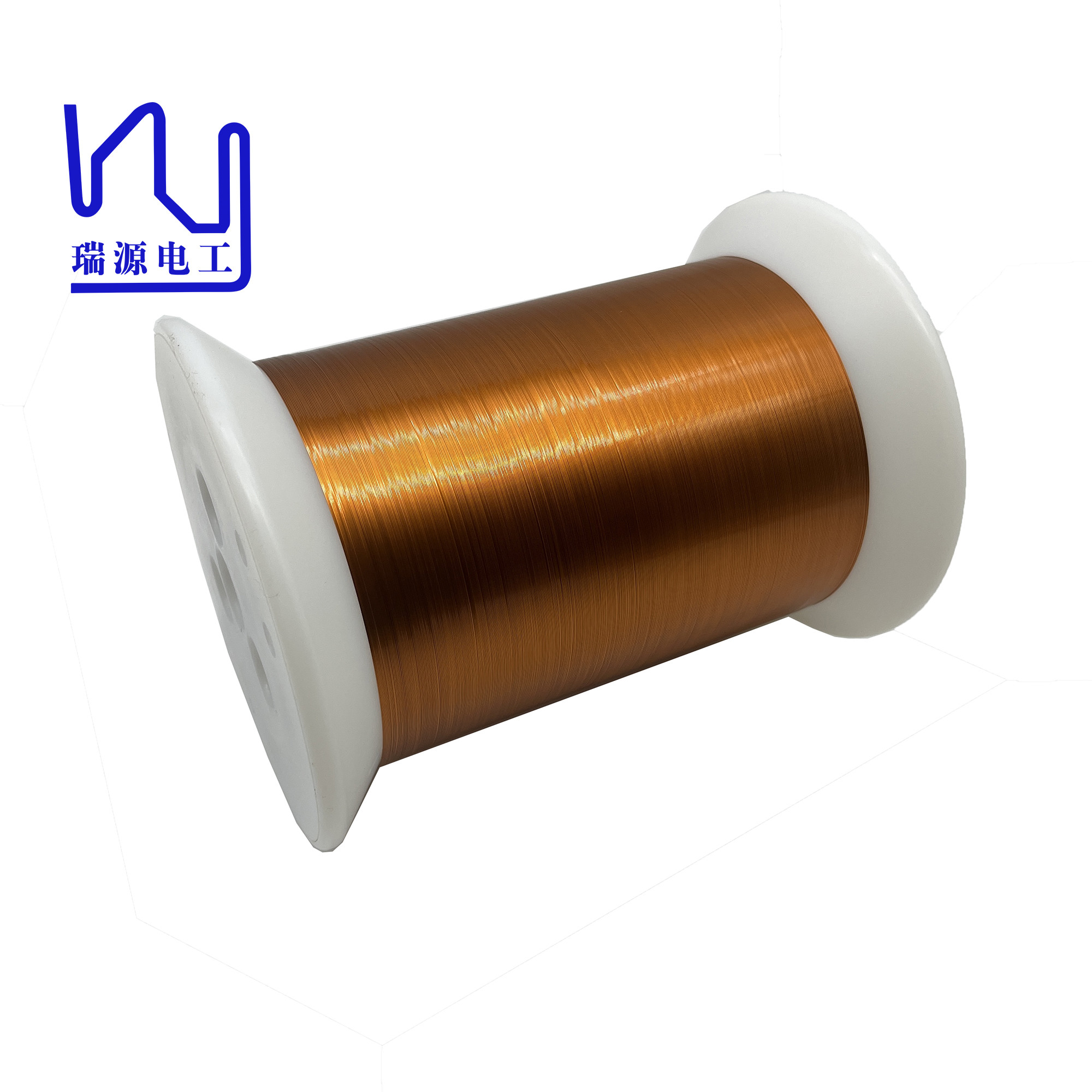

Class 220 self bonding 0.11mm 0.2mm rectangular enameled copper wire
Enameled rectangular copper wire is very suitable as a wire material when making high end voice coil. Because it has good heat resistance and stable electrical properties, it can work normally under various extreme conditions.
In addition, we can customize flat copper enameled wires of different sizes and specifications according to customer needs to meet various application scenarios. In addition to using ordinary flat copper enameled wire, we can also provide high-quality self-adhesive flat copper enameled wire.
| Size(mm) | Conductor Dimension(mm) | Thickness of single insulation(mm) | Bonding layer of single insulation(mm) | Overall dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) | Pinhole(pcs/m) | Elongation | Bonding strength |
|||||||||||
| Width | Thickness | |||||||||||||||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | Width | Thickness | Min | Normal | Max | Min | Normal | Max | Min | Max | N/MM | ||||
| 0.11*0.26 | 0.260 | ±0.02 | 0.110 | ±0.004 | 0.005±0.015 | 0.0045±0.001 | 0.0025±0.001 | 0.0025±0.001 | 0.255 | 0.275 | 0.295 | 0.120 | 0.124 | 0.128 | 591.810 | 748.63 | 0.5 Min | 1Max. | 15 Min. | 0.29 |
|
Product name |
Class 220 self bonding 0.11mm 0.2mm rectangular enameled copper wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
Class 220 self bonding 0.11mm 0.2mm rectangular enameled copper wire |
