| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.11mm*0.26mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW220 Solvent Adhesive 0.11mm*0.26mm Rectangular Enameled Copper Winding Wire | Thermal Rating: | 180/220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.11mm |
| Thickness: | 0.26mm | Conductor Material: | Copper |
| Key Word: | AIW220 Solvent Adhesive 0.11mm*0.26mm Rectangular Enameled Copper Winding Wire | ||
| Highlight: | aiw rectangular copper wire,0.11 mm rectangular copper wire,soldering rectangular magnet wire |
||

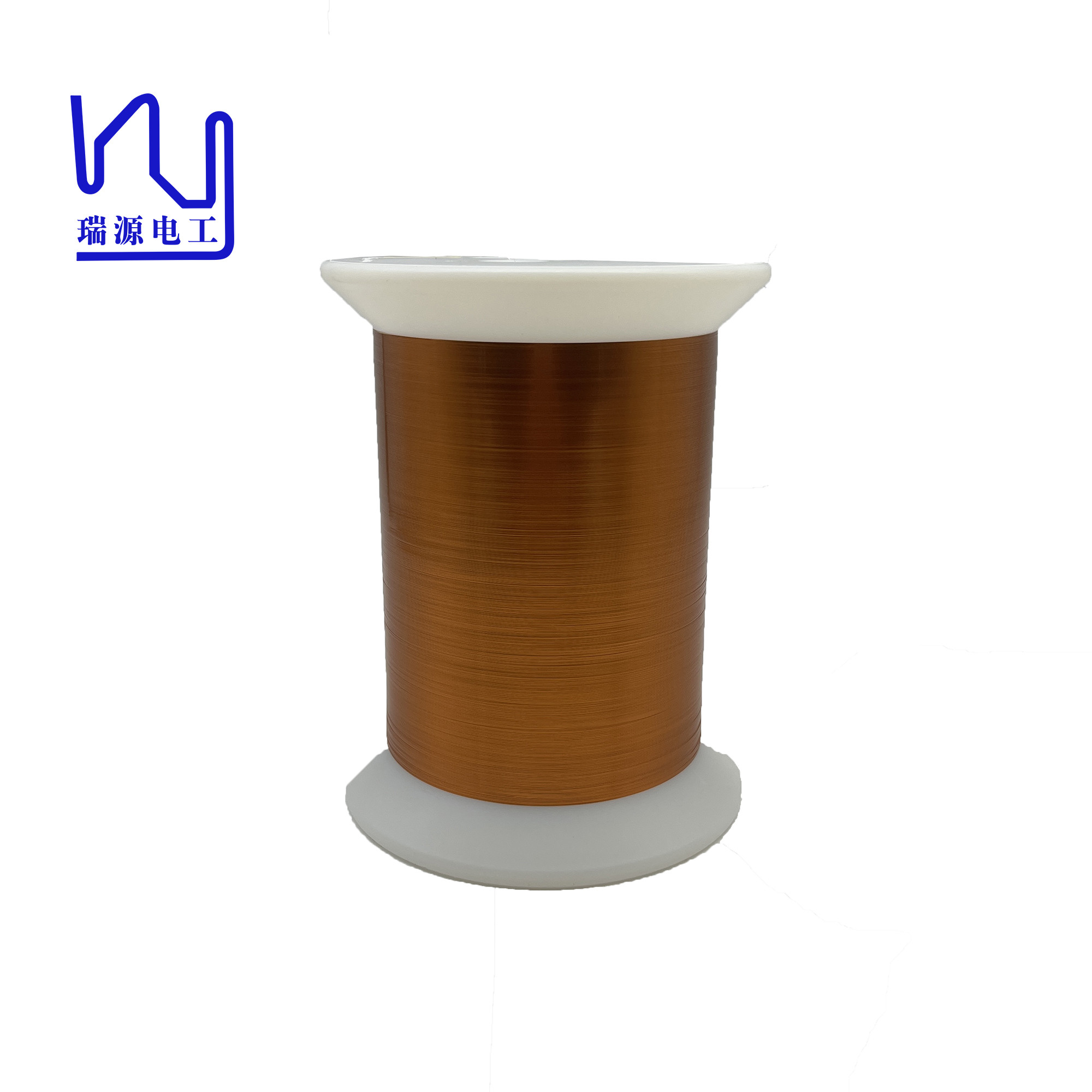

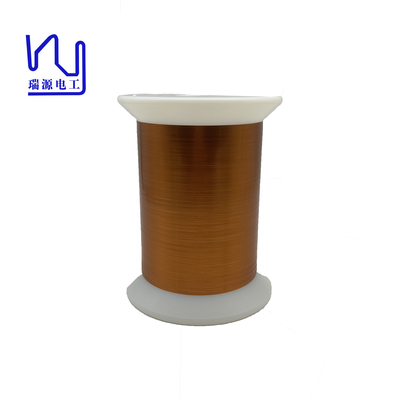

AIW220 Solvent adhesive 0.11mm*0.26mm rectangular enameled copper winding wire
Enameled rectangular copper wire is widely used in various fields. This Enameled rectangular copper wire we launched is especially suitable for voice coil production, with a width of 0.26mm and a thickness of 0.11mm, and a Polyamide imide insulation layer, solvent bonded, which has very high performance.
| Size(mm) | Conductor Dimension(mm) | Thickness of single insulation(mm) | Bonding layer of single insulation(mm) | Overall dimension(mm) | Max. Conductor Resistance 20℃(Ω/km) | Breakdown voltage(kv) | Pinhole(pcs/m) | Elongation | Bonding strength |
|||||||||||
| Width | Thickness | |||||||||||||||||||
| Width | Tolerance | Thickness | Tolerance | Width | Thickness | Width | Thickness | Min | Normal | Max | Min | Normal | Max | Min | Max | N/MM | ||||
| 0.11*0.26 | 0.260 | ±0.02 | 0.110 | ±0.004 | 0.005±0.015 | 0.0045±0.001 | 0.0025±0.001 | 0.0025±0.001 | 0.255 | 0.275 | 0.295 | 0.120 | 0.124 | 0.128 | 591.810 | 748.63 | 0.5 Min | 1Max. | 15 Min. | 0.29 |
|
Product name |
AIW220 Solvent adhesive 0.11mm*0.26mm rectangular enameled copper winding wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
AIW220 Solvent adhesive 0.11mm*0.26mm rectangular enameled copper winding wire |
