| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.00mm*0.30mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 200 Thermal Class Enameled Copper Rectangular Flat Wire IEC NEMA Standard | Thermal Rating: | 180/220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 1.0mm |
| Thickness: | 0.3mm | Conductor Material: | Copper |
| Key Word: | 200 Thermal Class Enameled Copper Rectangular Flat Wire IEC NEMA Standard | ||
| Highlight: | iec rectangular enameled copper wire,nema rectangular enameled copper wire,200 thermal class rectangular copper wire |
||

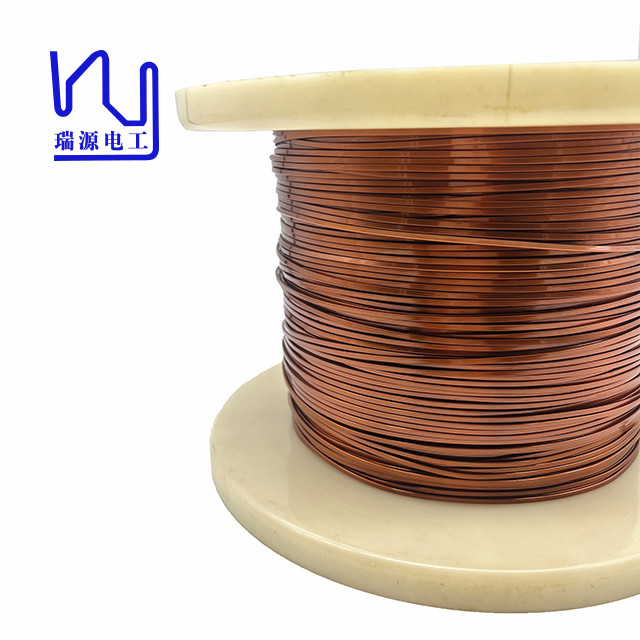

220 thermal class enameled copper rectangular flat wire IEC NEMA standard
The enameled rectangular copper wire has many advantages in wireless transmission applications, such as an increased electromechanical coupling efficiency, reduced weight and improved insulation. This implies a lower power loss rate compared to traditional round-wire designs and also makes the installation process easier due to its smaller size. Additionally, this type of wire is highly resistant to corrosion which enables it to withstand harsh environmental conditions.
|
Product name |
200 thermal class enameled copper rectangular flat wire IEC NEMA standard |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
200 thermal class enameled copper rectangular flat wire IEC NEMA standard |
|
Conductor Dimension
mm |
Thickness of Insulation
mm |
Overall dimension
mm |
Breakdown Voltage kv |
Conductor Resistance Ω/km 20°C |
Pinhole
Pcs/m |
Elongation
% |
|||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||
| 0.291-0.309 | 0.940-1.060 | 0.01-0.04 | 0.01-0.04 | 0.34-0.35 | 1.030-1.050 | Min0.70 | Max 65.73 | Max 2 | Min 30 |
