| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.00mm*0.30mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | UEW180 Super Thin 0.30mm Rectangular Enameled Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 1.0mm |
| Thickness: | 0.3mm | Conductor Material: | Copper |
| Key Word: | UEW180 Super Thin 0.30mm Rectangular Enameled Copper Wire | ||
| Highlight: | uew180 rectangular copper wire,0.30 mm rectangular copper wire,0.30 mm winding wire copper |
||

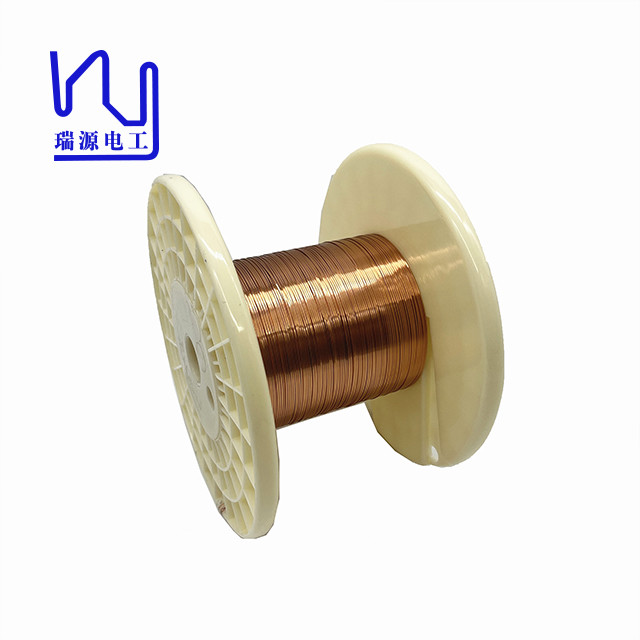

UEW180 Super Thin 0.30mm Rectangular Enameled Copper Wire
CHARACTERISTICS AND ADVANTAGES
1.Enamelled copper flat wire has strong corrosion resistance and oxidation resistance.
2.Enamelled copper flat wire has the characteristics of high conductivity and long service life.
3.The coil slot satisfaction rate and space volume ratio of the flat enamelled wire are higher, the resistance can be effectively reduced, and the higher Q value can be obtained by larger current, which is more suitable for the operation of high current load. And it is easy to install and repair.
|
Product name |
UEW180 Super Thin 0.30mm Rectangular Enameled Copper Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
UEW180 Super Thin 0.30mm Rectangular Enameled Copper Wire |
|
Conductor Dimension
mm |
Thickness of Insulation
mm |
Overall dimension
mm |
Breakdown Voltage kv |
Conductor Resistance Ω/km 20°C |
Pinhole
Pcs/m |
Elongation
% |
|||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||
| 0.291-0.309 | 0.940-1.060 | 0.01-0.04 | 0.01-0.04 | 0.34-0.35 | 1.030-1.050 | Min0.70 | Max 65.73 | Max 2 | Min 30 |
